32Technetix Group LimitedRev.1.0.1_0217

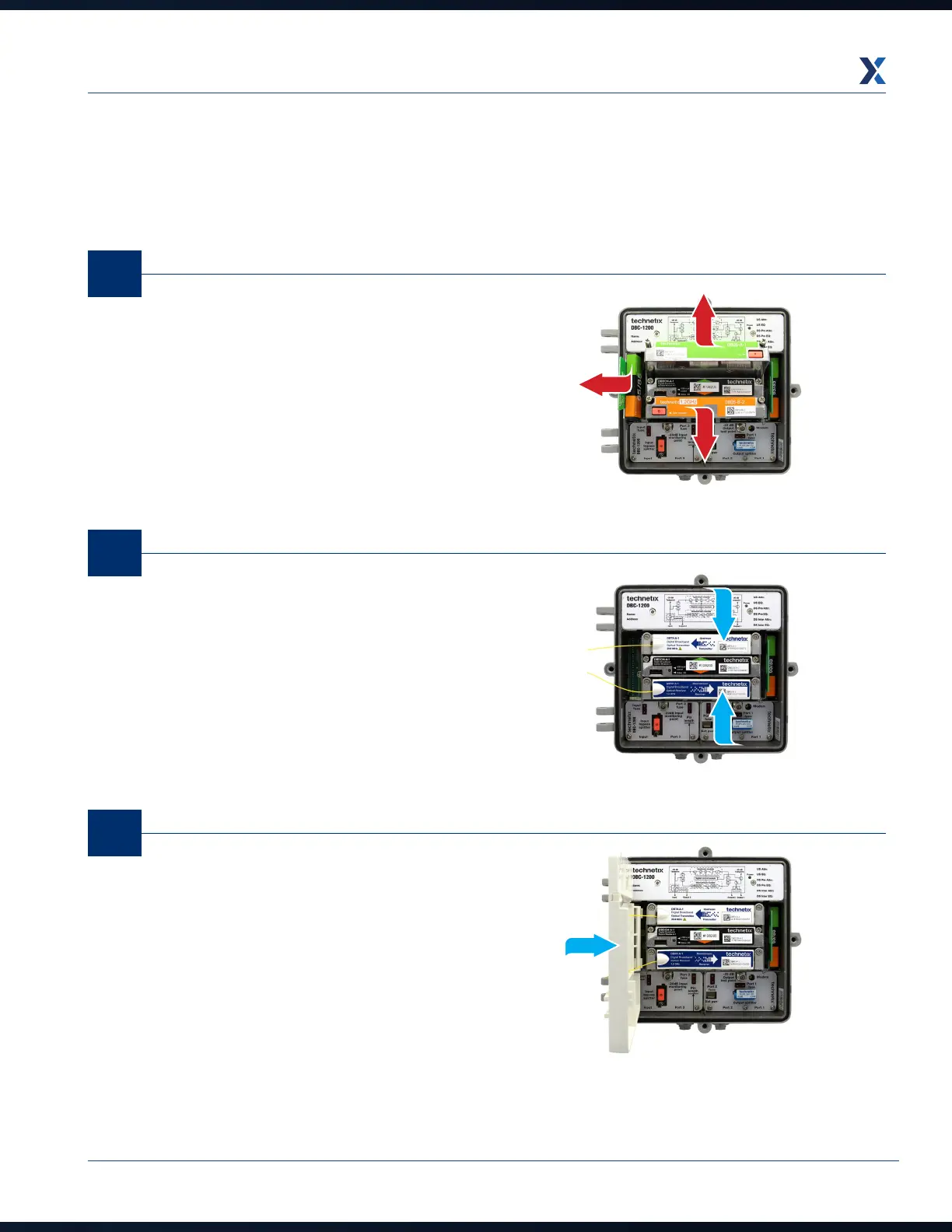

5.6 Upgrading a RF amplifier into an optical node
When you start from an RF amplifier you can upgrade to an optical node by going through 6 simple steps.
Remove RF modules and input diplex filter. These
modules can be reused in other amplifiers. If an
input splitter/tap is installed, this can be removed
at this time as well.
Note: all procedures can be executed while the
amplifier is powered up.
Install the fibre tray in the position of the input
diplex filter and secure it with a screw.
Insert the optical receiver module in the bottom
slot (replacing the RF forward amplifier) and the
upstream transmitter into the top slot (replacing the
the return amplifier).
01
03
02
