Chapter 3: Installing the DBD-1200
3.1 Housing mounting
There are two options for mounting the DBD-1200 amplifier:
3.1.1 Using side brackets
The unit is supplied with 2 x ‘L’ brackets that are attached onto the side of the unit using the 2 x 6mm threaded 10mm

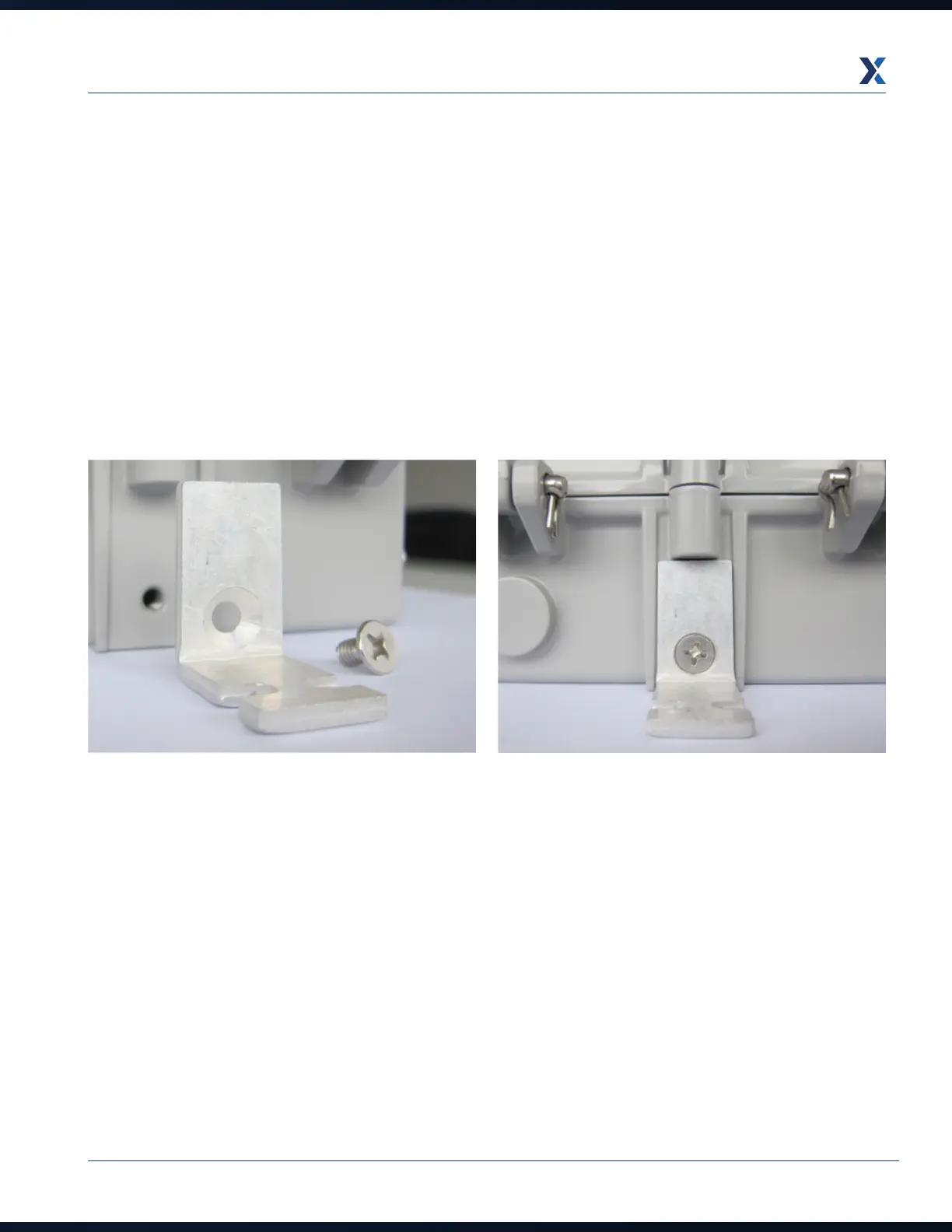

long countersunk screws provided (see the pictures below). Once the brackets are attached, the amplifier can be
oered up to the mounting location to mark the bracket cut outs onto the mounting surface ready for holes to be
made for the mounting bolts/screws. The amplifier can then be attached to the mounting surface using appropriate
fixing devices.
