1004/2019 - EN/V9 Technetix Group Limited
Product user manual
DBE-1200S

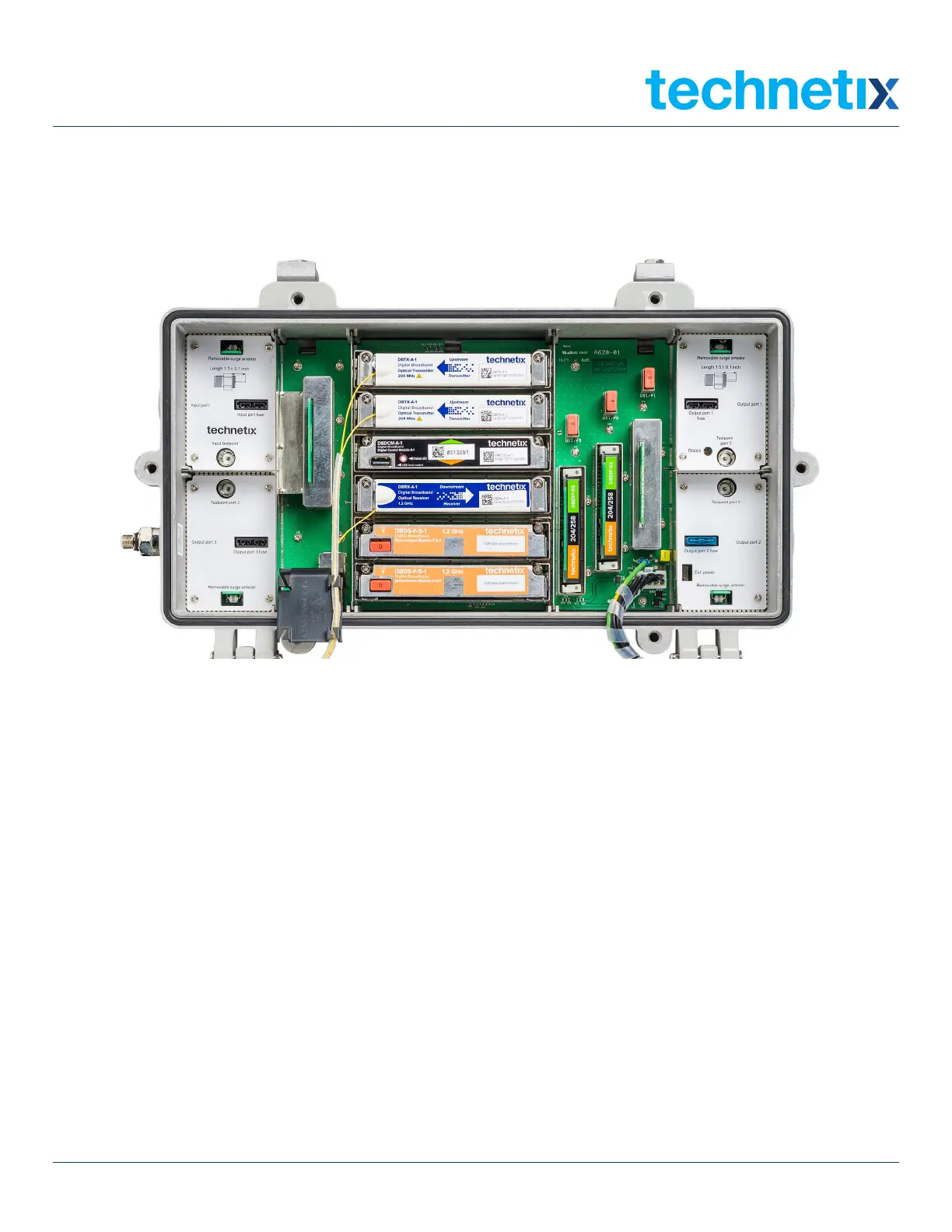

DBE-1200S electrical/optical hybrid
In a hybrid configuration all of the upstream and downstream connections to the headend are through fiber. Here is an
example hybrid configuration of the DBE-1200S with one upstream optical transmitter module with two lasers, and a second
upstream optical transmitter module with one laser, and one downstream optical receiver feeding two downstream bridger
amplifier modules. Other configurations are also possible. All upstream data inputs can be combined on one laser transmitter.
