DBE-1200S
Chapter 4: Maintenance
4.1 PSU replacement
Note: Ensure line power is disconnected from all possible sources before starting PSU replacement.
1. Remove the PSU electrical connectors’ securing clips and unplug the connector.

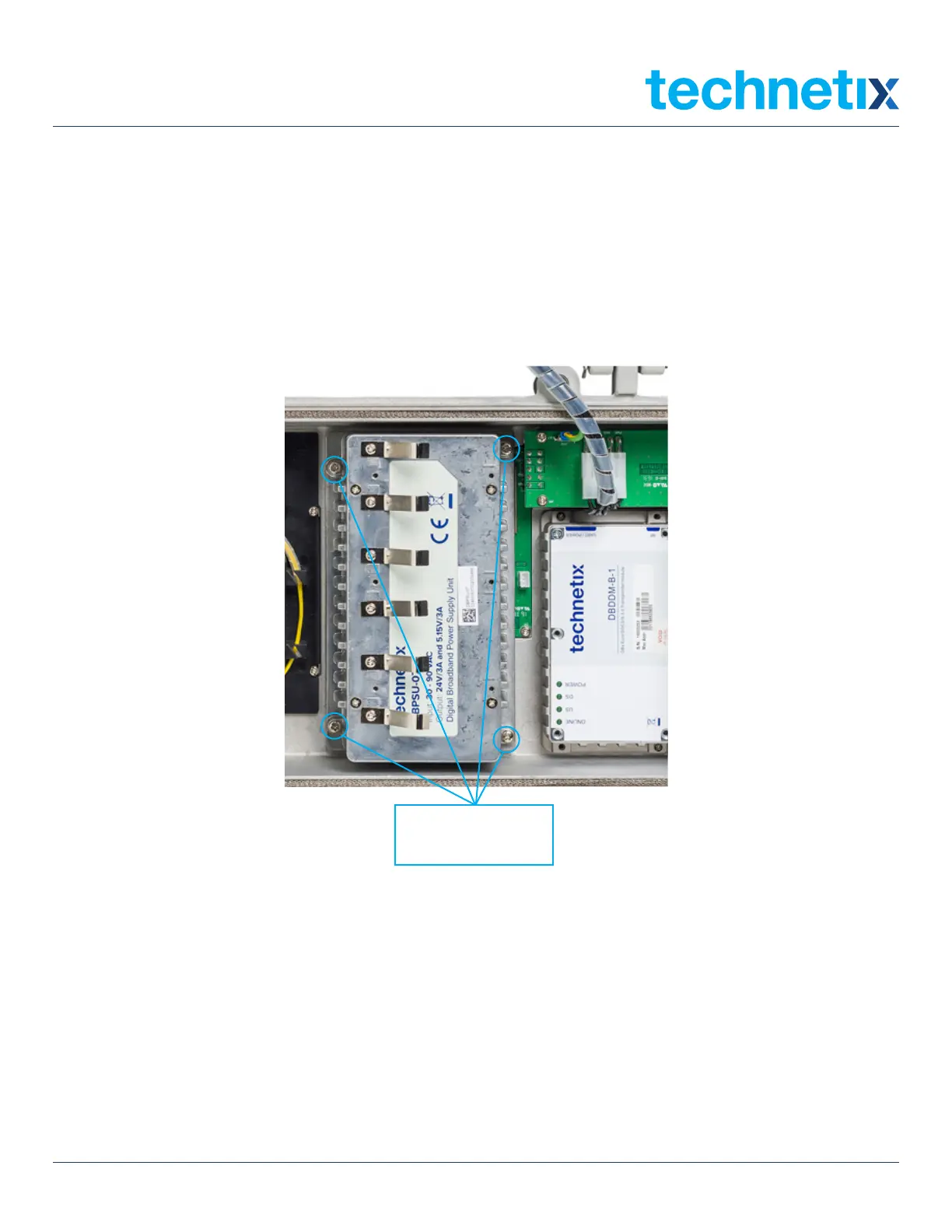

Screws securing
power supply
2. Remove the four crosshead (Phillips) screws that secure the power supply to the PSU.
3. Remove the PSU from the DBE-1200 housing.
Installation is the reverse of removal:
1. Place the PSU into the lid and secure the PSU into place with the four screws.
2. Connect the electrical connectors to the PSU.
3. Apply line power.
