Technics SA-C100

17
Control reference guide

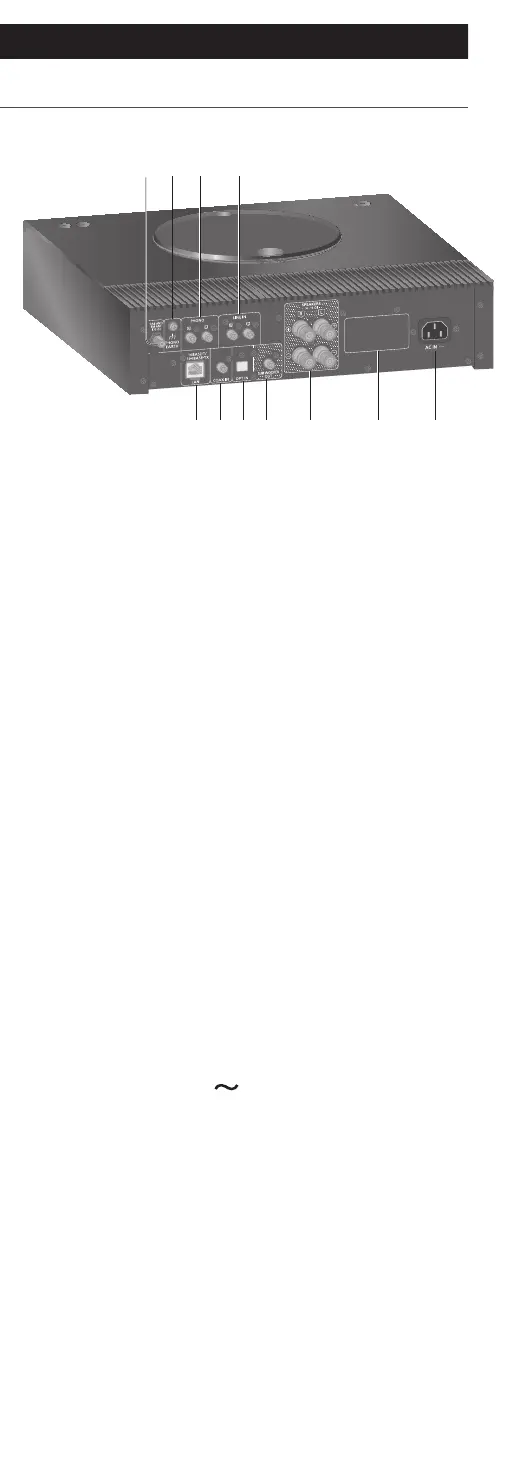

This unit (rear)
1110
20
17 18
12 13
14 15 16 19
10 DAB ANT/FM ANT terminal
(⇒ 23, 41, 45)
11 PHONO EARTH terminal
(⇒ 56)
• For connecting the ground wire of a turntable.
12 Analogue audio input terminals (PHONO)
(⇒ 56)
• Please use the cable less than 3 m.
13 Analogue audio input terminals (LINE)
(⇒ 56)
14 LAN terminal
(⇒ 29)
15 Coaxial digital input terminals (COAX)
(⇒ 54)
16 Optical digital input terminal (OPT)
(⇒ 54)
17 Subwoofer terminal
18 Speaker output terminals
(⇒ 24)
19 Product identification marking
• The model number is indicated.
20 AC IN terminal (
)
(⇒ 26)
