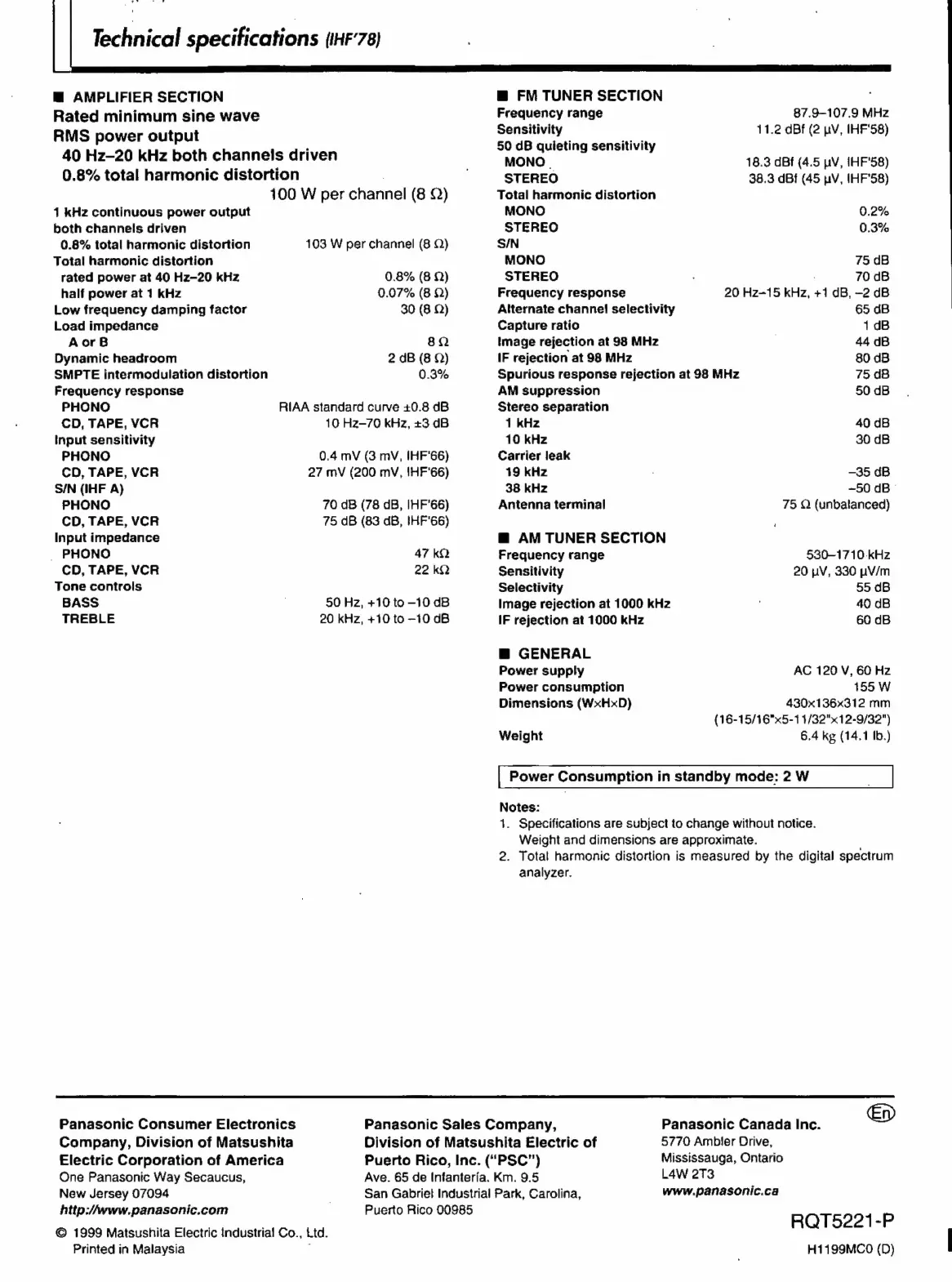

Technical specifications (IHF’78)
E AMPLIFIER SECTION
Rated minimum sine wave
RMS power output
40 Hz-20 kHz both channels driven
0.8% total harmonic distortion ,
100 W per channel (8 Q)
1 kHz continuous power output
both channels driven
0.8% total harmonic distortion
Total harmonic distortion
103 W per channel (8 9)
rated power at 40 Hz-20 kHz 0.8% (8 2)
half power at 1 kHz 0.07% (8 92)
Low frequency damping factor 30 (8 Q)
Load impedance
AorB 8Q
Dynamic headroom 2 dB (8 Q)
SMPTE intermodulation distortion 0.3%
Frequency response
PHONO RIAA standard curve +0.8 dB
CD, TAPE, VCR 10 Hz-70 kHz, +3 dB
Input sensitivity
PHONO 0.4 mV (3 mV, IHF'66)
CD, TAPE, VCR 27 mV (200 mV, IHF'66)
S/N (IHF A}
PHONO 70 dB (78 dB, IHF'66)
CD, TAPE, VCR 75 dB (83 dB, IHF'66)
Input impedance
_ PHONO 47 kQ
CD, TAPE, VCR 22 kh
Tone controls
BASS l 50 Hz, +10 to —10 dB
TREBLE 20 kHz, +10 to -10 dB
@ FM TUNER SECTION
Frequency range
Sensitivity
50 dB quieting sensitivity
MONO
STEREO
Total harmonic distortion
MONO 0.2%
STEREO 0.3%
S/N
MONO 75 dB
STEREO . 70 dB
Frequency response 20 Hz-15 kHz, +1 dB, -2 dB
Alternate channel selectivity 65 dB
Capture ratio 14B
Image rejection at 98 MHz 44 dB
IF rejection at 98 MHz 80 dB
Spurious response rejection at 98 MHz 75 dB
AM suppression 50 dB
Stereo separation
1 kHz 40 dB
10 kHz 30 dB
Carrier leak
19 kHz -35 dB
38 kHz ~50 dB `
Antenna terminal
@ AM TUNER SECTION
Frequency range
Sensitivity
Selectivity
Image rejection at 1000 kHz
IF rejection at 1000 kHz
E GENERAL
Power supply
Power consumption
Dimensions (WxHxD)
Weight
87.9-107.9 MHz
11.2 dBf (2 uV, IHF'S8)
18.3 dBf (4.5 pV, IHF'58)
38.3 dBi (45 pV, IHF'58)
75 Q (unbalanced)
530-1710 kHz
20 pV, 330 V/m
55 dB
40 dB
60 dB
AC 120 V, 60 Hz
155 W
430x136x312 mm
(16-15/16"x5-1 1/32"x12-9/32")
6.4 kg (14.1 Ib.)
Power Consumption in standby mode: 2 W
Notes:
1. Specifications are subject to change without notice.
Weight and dimensions are approximate. l
2. Total harmonic distortion is measured by the digital spectrum
analyzer.
