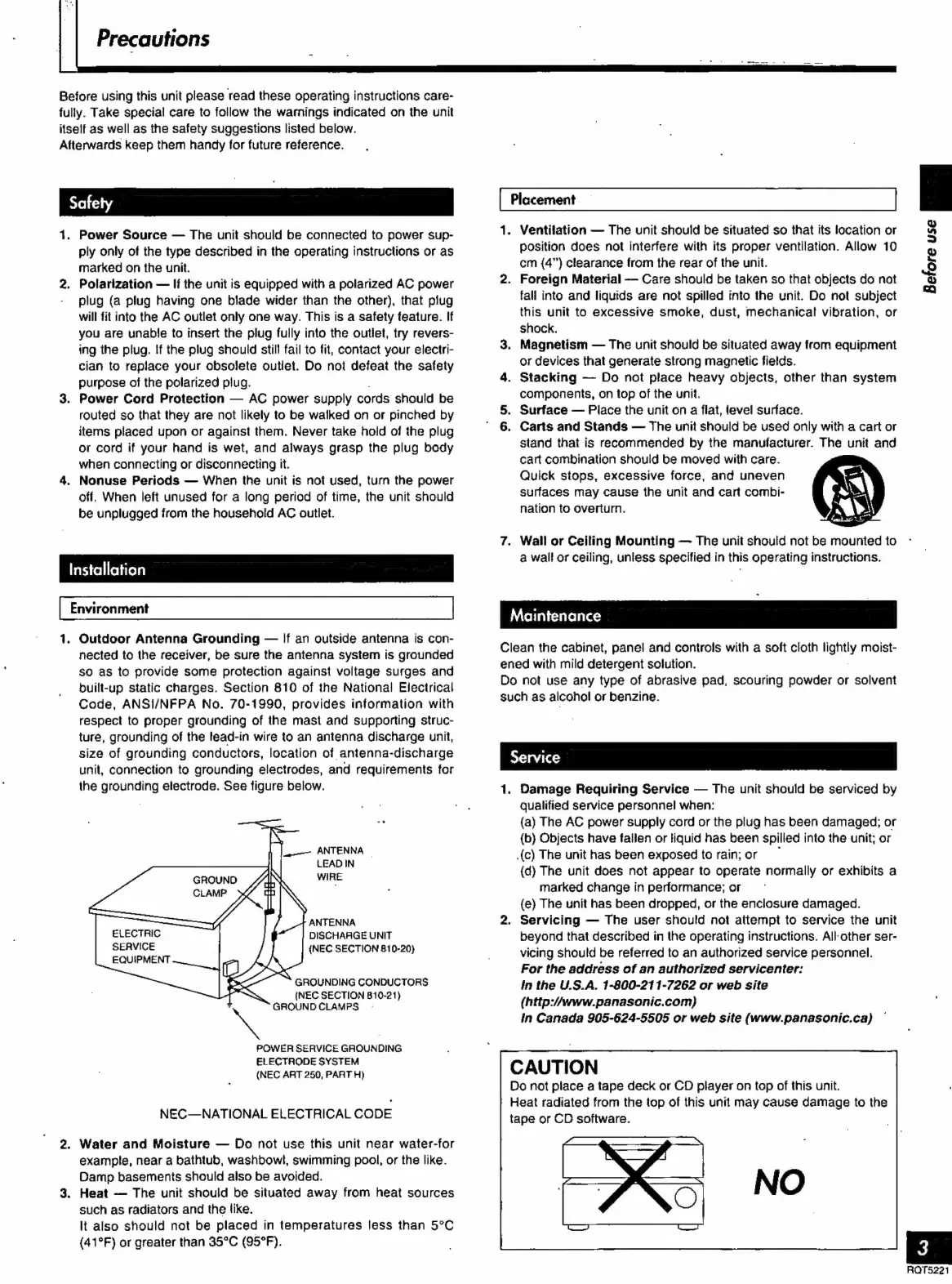

Precautions
Before using this unit please read these operating instructions care-
fully. Take special care to follow the warnings indicated on the unit
itself as well as the safety suggestions listed below.
Afterwards keep them handy for future reference.
1.
N
bed
>
Power Source — The unit should be connected to power sup-
ply only of the type described in the operating instructions or as
masked on the unit.
Polarization — lf the unit is equipped with a polarized AC power
plug (a plug having one blade wider than the other), that plug
will fit into the AC outlet only one way. This is a safety feature. If
you are unable to insert the plug fully into the outlet, try revers-
ing the plug. If the plug should still fail to fit, contact your electri-
cian to replace your obsolete outlet. Do noi defeat the safety
purpose of the polarized plug.
Power Cord Protection — AC power supply cords should be
routed so that they are not likely to be walked on or pinched by
items placed upon or against them. Never take hold of the plug
or cord if your hand is wet, and always grasp the plug body
when connecting or disconnecting it.
Nonuse Periods — When the unit is not used, turn the power
off. When left unused for a long period of time, the unit should
be unplugged from the household AC outlet.
Installation
Environment
1.
2.
Outdoor Antenna Grounding — If an outside antenna is con-
nected to the receiver, be sure the antenna system is grounded
so as to provide some protection against voltage surges and
built-up static charges. Section 810 of the National Electrical
Code, ANSI/NFPA No. 70-1990, provides information with
respect to proper grounding of the mast and supporting struc-
ture, grounding of the lead-in wire to an antenna discharge unit,
size of grounding conductors, location of antenna-discharge
unit, connection to grounding electrodes, and requirements for
the grounding electrode. See figure below.
a ANTENNA -
LEAD IN
WIRE
ANTENNA
DISCHAAGE UNIT
(NEC SECTION 810-20}
ELECTRIC
SERVICE
EQUIPMENT
GROUNDING CONDUCTORS
(NEC SECTION 610-21}
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
NEC—NATIONAL ELECTRICAL CODE
Water and Moisture — Do not use this unit near water-for
example, near a bathtub, washbowl, swimming pool, or the like.
Damp basements should also be avoided.
Heat — The unit should be situated away from heat sources
such as radiators and the like.
It also should not be placed in temperatures jess than 5°C
(41°F) or greater than 35°C (95°F).
-à
N
sed
S
an
N
Placement
Before use A
. Ventilation — The unit should be situated so that its location or
position does not interfere with its proper ventilation. Allow 10
cm (4") clearance from the rear of the unit.
. Foreign Material — Care should be taken so that objects do not
fali into and liquids are not spilled into the unit. Do not subject
this unit to excessive smoke, dust, mechanical vibration, or
shock.
Magnetism — The unit should be situated away from equipment
or devices that generate strong magnetic fields.
Stacking — Do not place heavy objects, other than system
components, on top of the unit.
Surface — Place the unit on a flat, level surface.
Carts and Stands — The unit should be used only with a cart or
stand that is recommended by the manufacturer. The unit and
cart combination should be moved with care.
Quick stops, excessive force, and uneven
Surfaces may cause the unit and cart combi-
nation to overturn.
Wall or Ceiling Mounting — The unit should not be mounted to
a wall or ceiling, unless specified in this operating instructions.
Maintenance
Clean the cabinet, panel and controls with a soft cloth ligndly moist-
ened with mild detergent solution.
Do not use any type of abrasive pad, scouring powder or solvent
such as alcoho! or benzine.
Service
=a
N
. Damage Requiring Service — The unit should be serviced by
qualified service personnel when:
(a) The AC power supply cord or the plug has been damaged; or
(b} Objects have fallen or tiquid has been spilled into the unit; or
(c) The unit has been exposed to rain; or `
{d} The unit does not appear to operate normally or exhibits a
marked change in performance; or
{e} The unit has been dropped, or the enclosure damaged.
Servicing — The user should not attempt to service the unit
beyond that described in the operating instructions. All-other ser-
vicing should be referred to an authorized service personnel.
For the address of an authorized servicenter:
in the U.S.A. 1-800-211-7262 or web site
(http://;www.panasonic.com)
in Canada 905-624-5505 or web site (www.panasonic.ca)
CAUTION
Do not place a tape deck or CD player on top of this unit.
Heat radiated from the top of this unit may cause damage to the
tape or CD software.
