Getting started
English
(13)
1
Attach a cartridge (store-bought)
tentatively.
Follow the cartridge’s instructions to
correctly attach it to the head shell, and
tighten the screws lightly.
If the mounting screws are included in
the cartridge, use them.
When playing SP records, use a cartridge
for SP records.
Use a commercially available mini flat
screwdriver (4 mm).
Be careful not to touch the stylus tip.

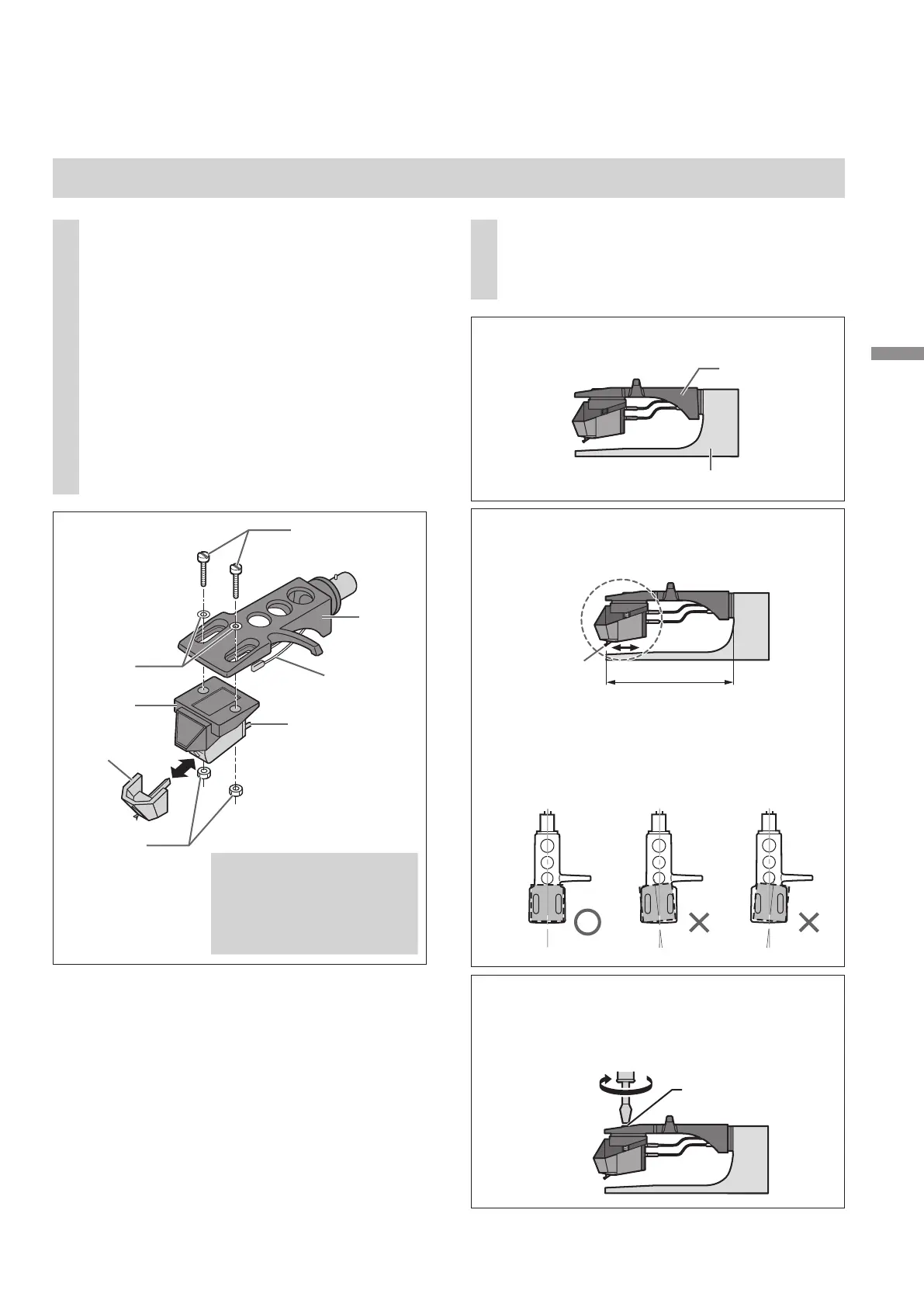

Attaching the cartridge
Fit the overhang gauge to the head shell.
Tighten the screw for cartridge.
The overhang can be adjusted optimally.
Screw for
cartridge
Overhang gauge
Head
shell
Head shell
Lead wire
Nuts
Washers
(Lead wire) (Terminal)
Red
R+ (Red)
Green
R- (Green)
White
L+ (White)
Blue
L- (Blue)
Screw for cartridge
Terminal
(Example)
52 mm
2
Adjust the overhang.
Use the included overhang gauge.
Move the cartridge to line the stylus tip up
with the end of the gauge.
The cartridge should be parallel on
the shell head when viewed from the
top and side (the illustration is the top
view).
Be careful not to allow the cartridge to
slip out of place.
Stylus tip
13
Cartridge
Stylus
