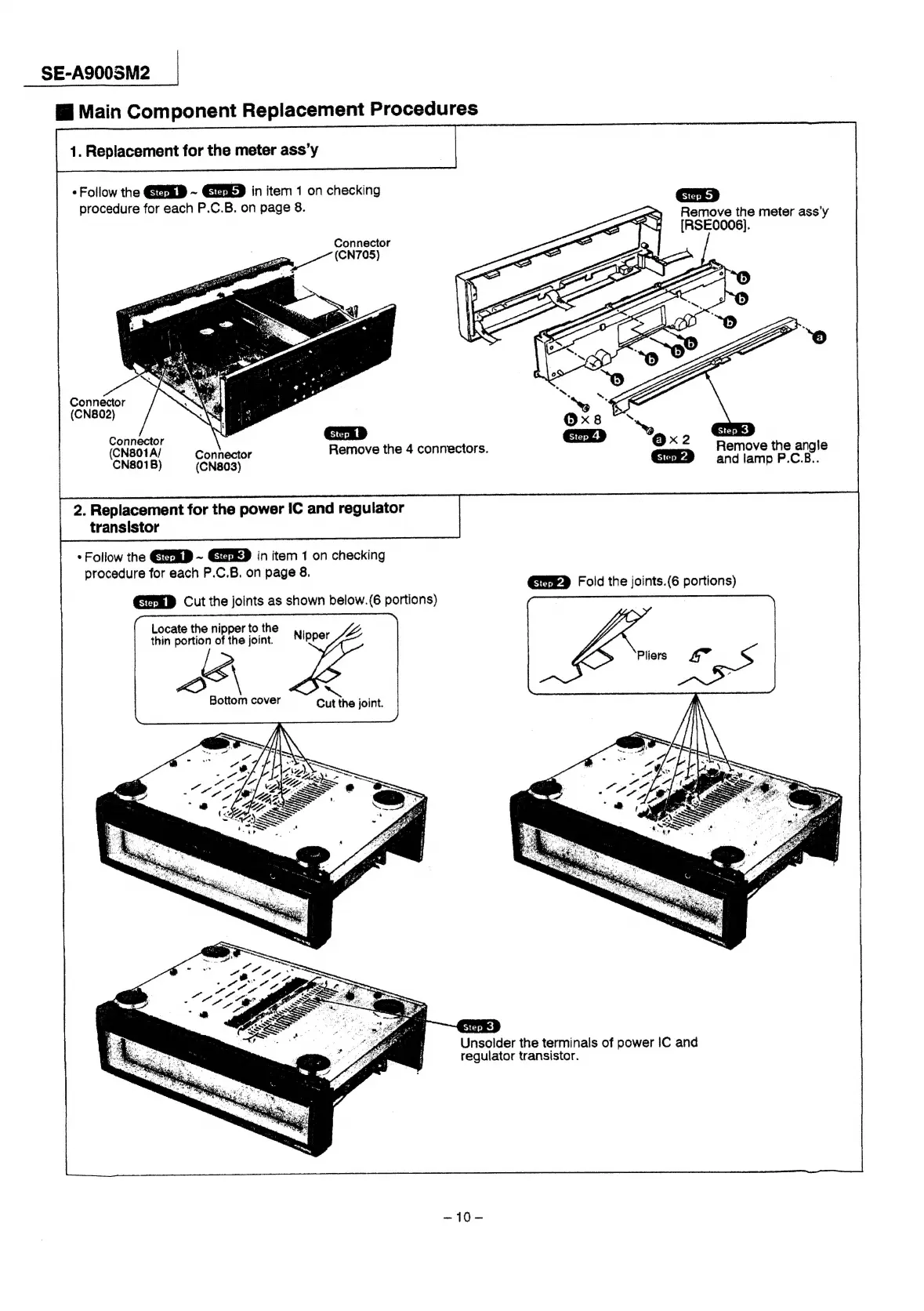

SE-A900SM2
|
Mi
Main
Component
Replacement
Procedures
1.
Replacement
for
the
meter
ass’y
*
Follow
the
~
in
item
1
on
checking
procedure
for
each
P.C.B.
on
page
8.
Connector
Connector
(CN8&02)
St
Connector
(CN801A/
Connector
Remove
the
4
connectors.
CN801B)
(CN803)
2.
Replacement
for
the
power
IC
and
regulator
transistor
*
Follow
the
@@aap
~
in
item
1
on
checking
procedure
for
each
P.C.B.
on
page
8.
GEE
Cut
the
joints
as
shown
below.(6
portions)
Locate
the
nipper
to
the
thin
portion
of
the
joint.
Nipper
Bottom
cover
be
4
®
Cut
the
joint.
246)
Remove
the
meter
assy
[RSEOOO6]).
Remove
the
angle
and
lamp
P.C.B..
GEE
Fold
the
joints.(6
portions)
Unsolder
the
terminals
of
power
IC
and
regulator
transistor.
