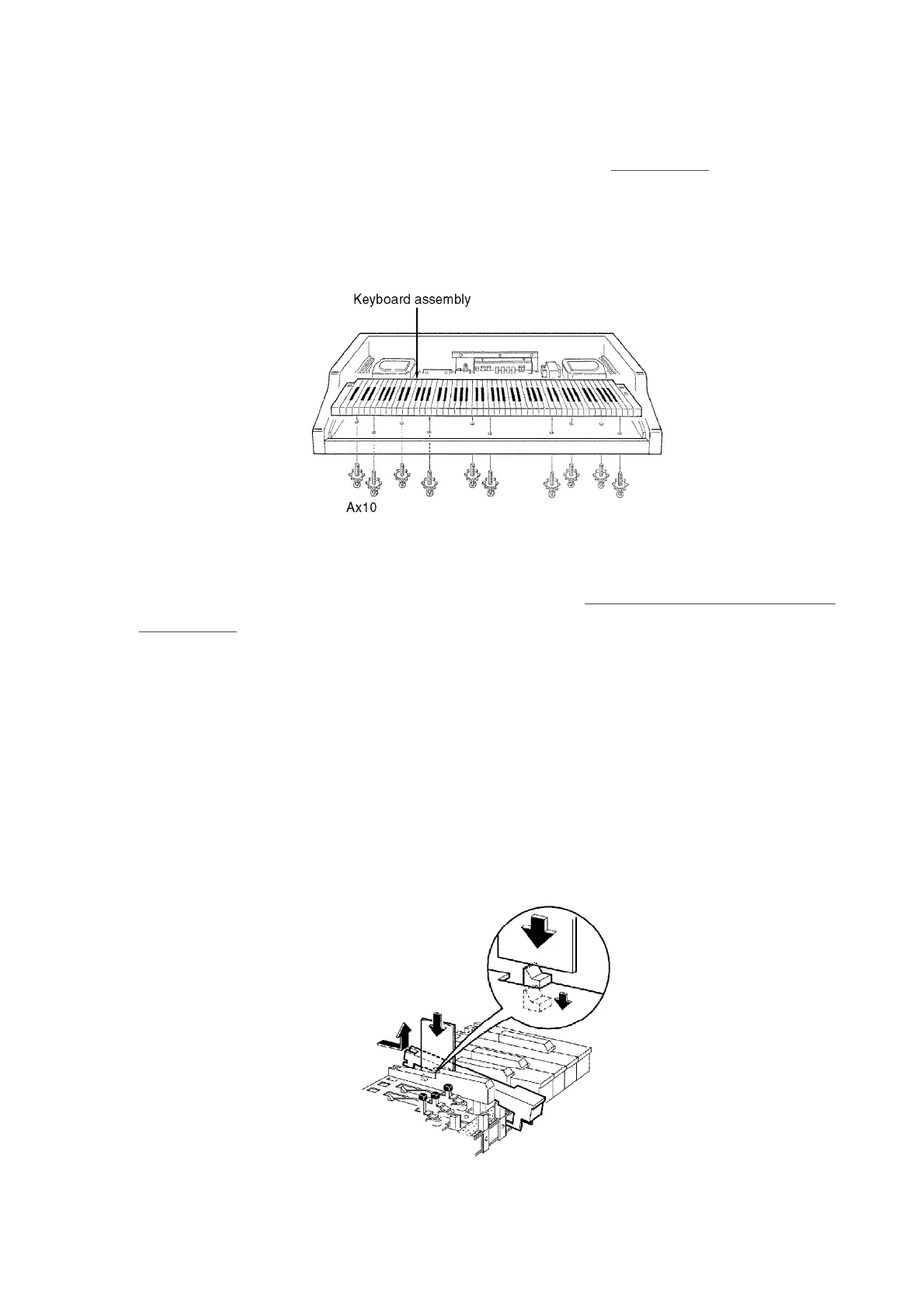

2. Remove the keyboard assembly mounting screws located on the
bottom of the cabinet (A 10 pcs.) as shown in
Figure-10.
Figure-10
7.5. Key(s)
Disassembly
1. Remove the keyboard assembly (see step “Removing the keyboard
assembly”).
2. While inserting a thin plate to press down a claw, push the rear of the
key forward to disengage the key claw from the chassis.
3. Lift the key up to remove it.
Note:
- The key claw is easily broken. Do not apply undue force. Should a key
claw break, it can still be used.
- If a black key is to be replaced, it is necessary to remove both adjacent
white keys.
Figure-11
/ / / /
9
