Assembly
1. Insert the front part of the key into the chassis.
2. Insert the plate spring into the hammer notch as shown in
Figure -12.
3. While slowly lowering the key into the chassis, insert the plate spring
into the notch at the rear of the key.
4. Carefully insert the key into the opening in the chassis and slide the
key towards the rear to lock it in place.

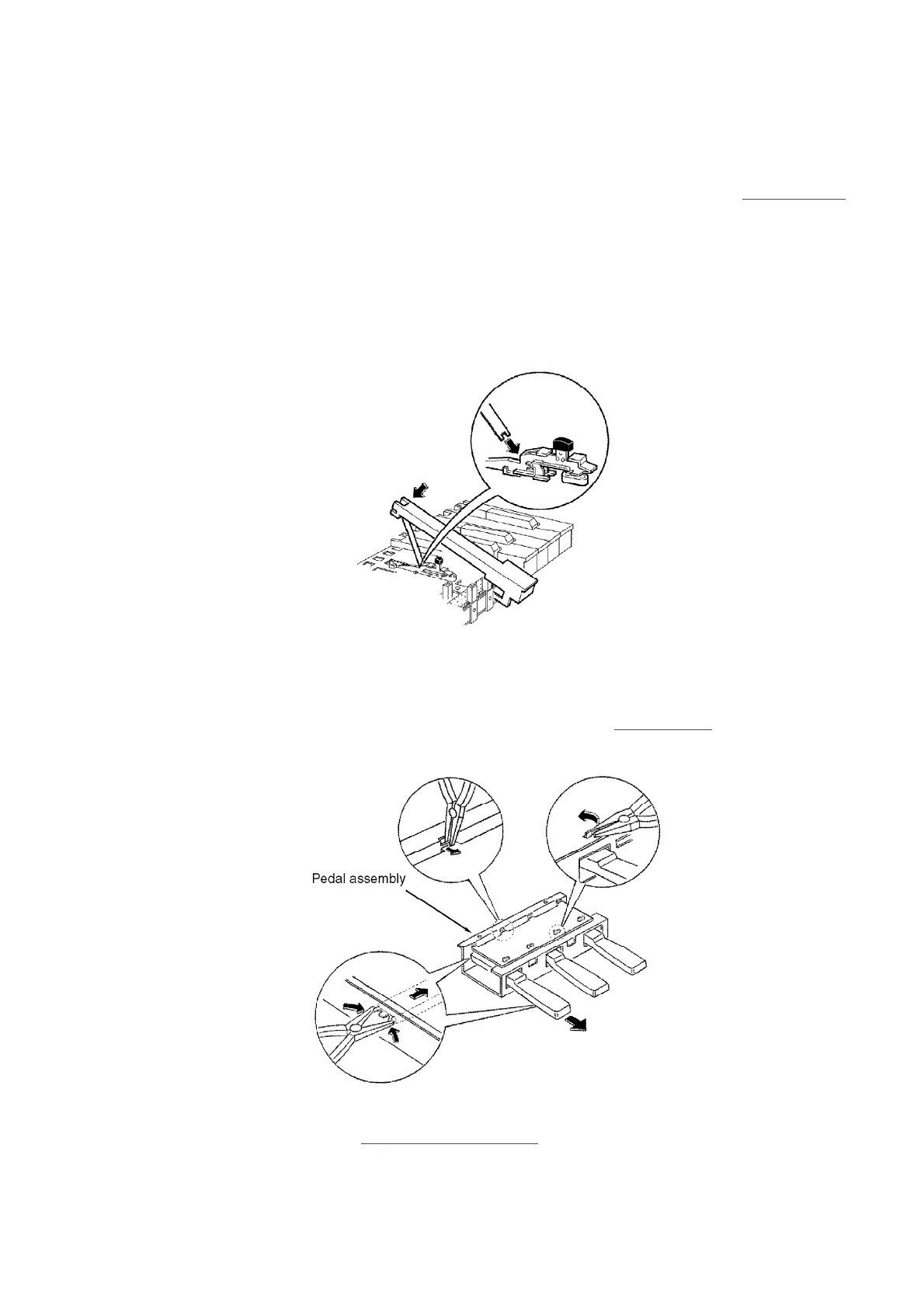

Figure -12
7.6. Disassembly of the pedal assembly
1. Remove the pedal assembly from the pedal box.
2. Disassemble the pedal assembly as shown in
Figure-13.
Figure-13
7.7. Removing the speakers
Remove the top cover (see step “Removing the top cover”).
Speaker box
10
