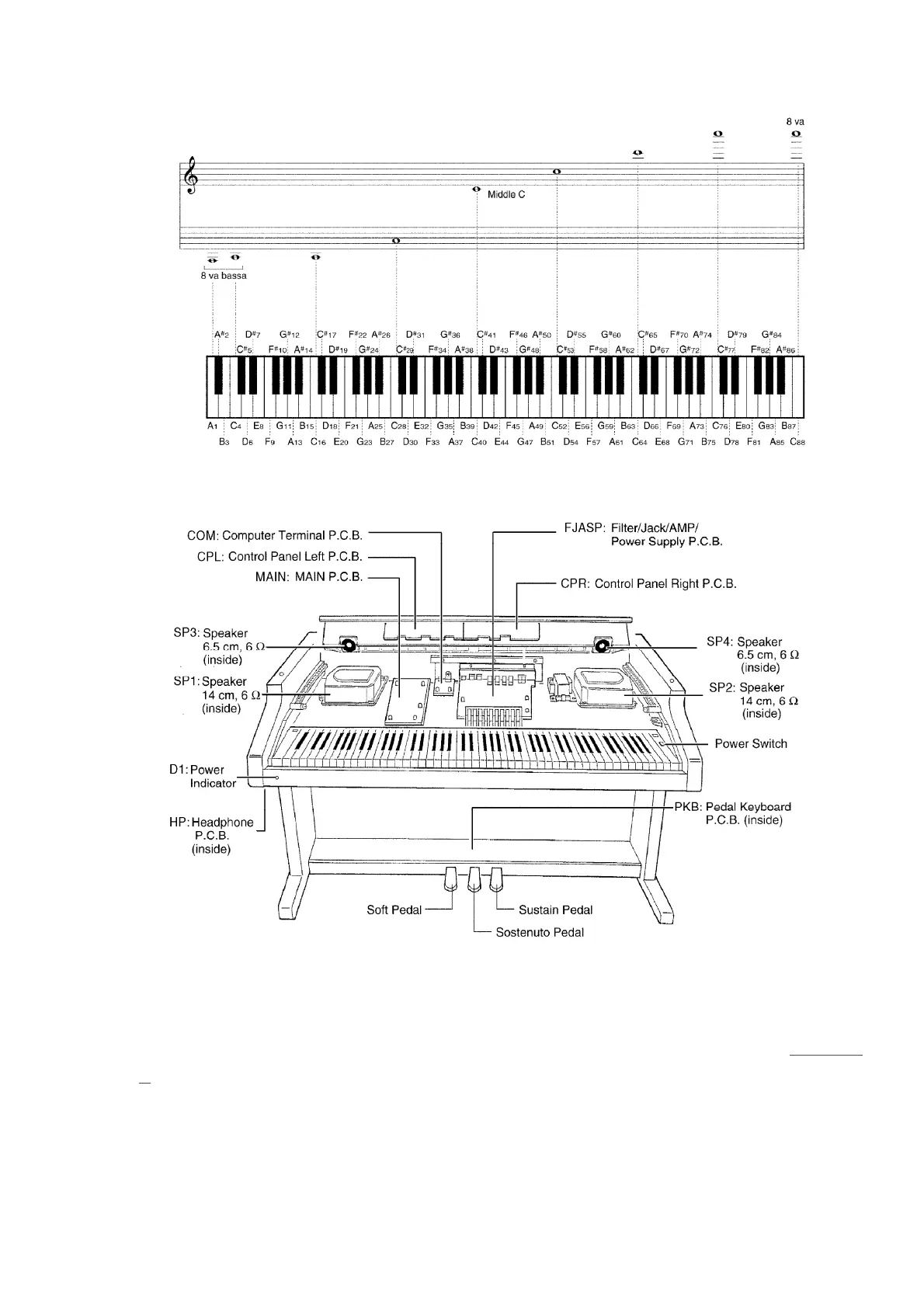

6. PARTS LOCATION
Figure-7
7. DISASSEMBLY INSTRUCTIONS
7.1. Removing the top cover
1. Remove the top cover mounting screws (A 4 pcs.) as shown in
Figure-
8.
2. Slide the top cover forward and lift up (as shown by the arrows).
7.2. Removing the keyboard cover
7
