1. Remove the top cover (see step “Removing the top cover”).
2. Match the gears of the keyboard cover with the notches in the guide
rail, and lift up the keyboard cover as shown in

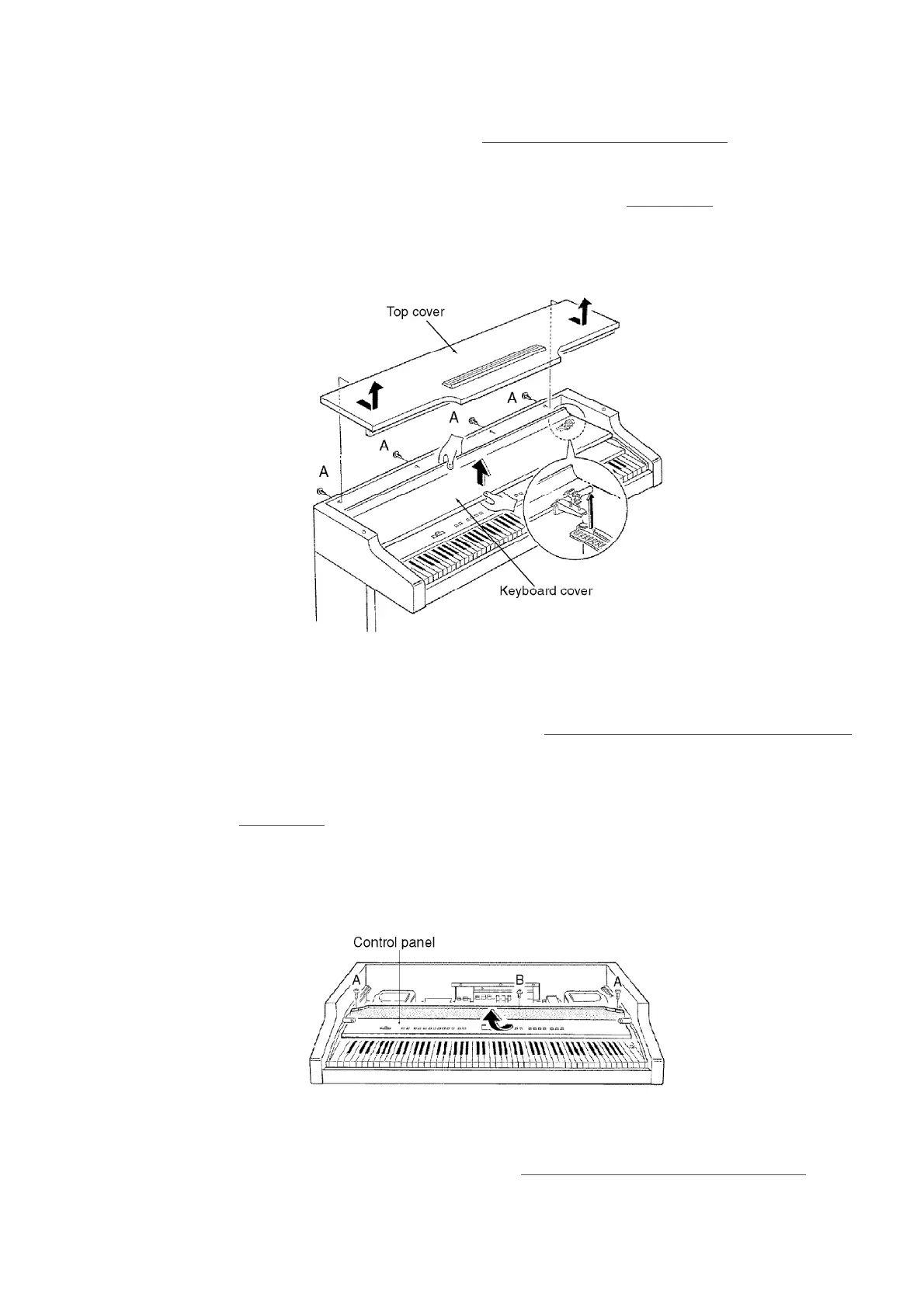

Figure-8.
Figure-8
7.3. Removing the control panel
- Pull out the connectors on the control panel.
1. Remove the keyboard cover (see step “
Removing the keyboard cover
”).
2. Remove the control panel mounting screws (A 2 pcs. and B 1 pc.) as
shown in
Figure-9.
3. Slide the control panel forward and pull out (as shown by the arrow).
Figure-9
7.4. Removing the keyboard assembly
1. Remove the control panel (see step “
Removing the control panel).
