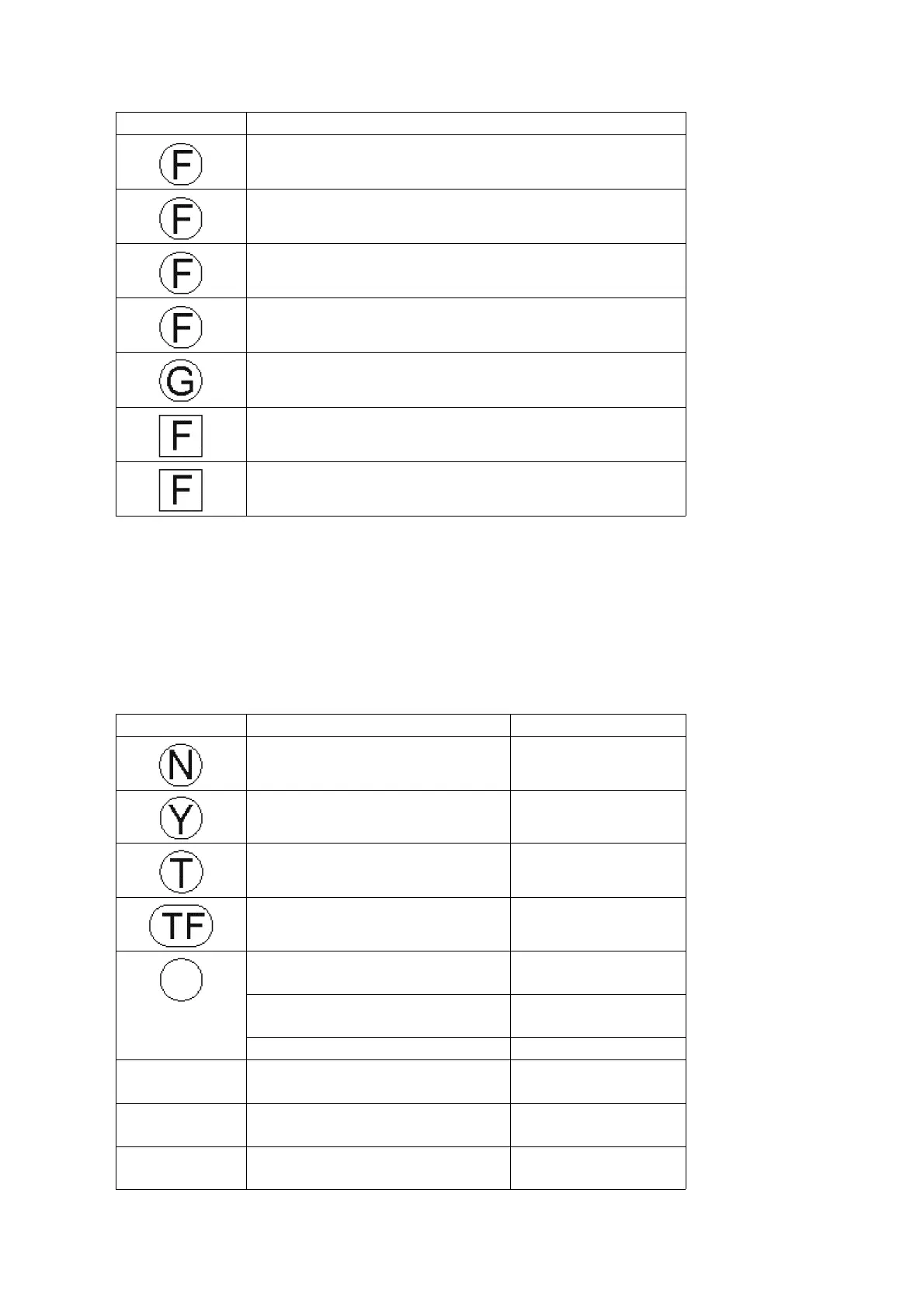

SYMBOL SPECIFICATION
Fixed Carbon Film Resistors
“FLAME-PROOF” (ERD—F—type)
Fixed Wire Wound Resistors
“FLAME-PROOF” (ERF—type)
Fixed Metal Oxide Film Resistors
“FLAME-PROOF” (ERG—type)
Fixed Metal Film Resistors
“FLAME-PROOF” (ERX—type)
Fixed Metal Film Resistors (Precision and High Stability)
(ERO—type)
Fuse Type Fixed Metal Oxide Film Resistors
“FLAME-PROOF” (ERQ—type)
Fuse Type Fixed Carbon Film Resistors
“FLAME-PROOF” (ERD2FC—type)
9.3.2. Capacitors
- Capacitors without symbolic mark are POLYESTER CAPACITORS.
(ECQM-type, ECQG-type, ±10% Tolerance)
- Polarized capacitors without symbolic mark are Aluminum Electrolytic
Capacitors. (ECEA-type, ±20% Tolerance)
Table-2
SYMBOL SPECIFICATION TYPE
Non-Polarized Electrolytic
Capacitors
ECEA_KN_type
Non-Polarized Electrolytic (for
Network system)
ECEA_Y_type
Tantalum Solid Electrolytic
Capacitors
ECS_type
Metallized Plastic Film Capacitors
(TF Series)
ECQV_type
Temperature Compensating
Ceramic Capacitors
ECC_type
High-Dielecytric Constant Ceramic
Capacitors
ECK_type, ECR_type
Axial Lead Ceramic Capacitors ECB_type
Metallized Polyester Film
Capacitors for Across the Line
ECQ_EW_type
Aluminum Electrolytic Capacitors
for Smoothing Circuit
ECES_type
Multilayer Ceramic Chip
Capacitors
ECUV_type
