Technifor TD412 - Dimensional Drawing of the Control Unit in Rack Configuration - Standard Version

AOperating instructions for the machine
C
Ref. DCD01/3078 - TD412_en_C
17/62

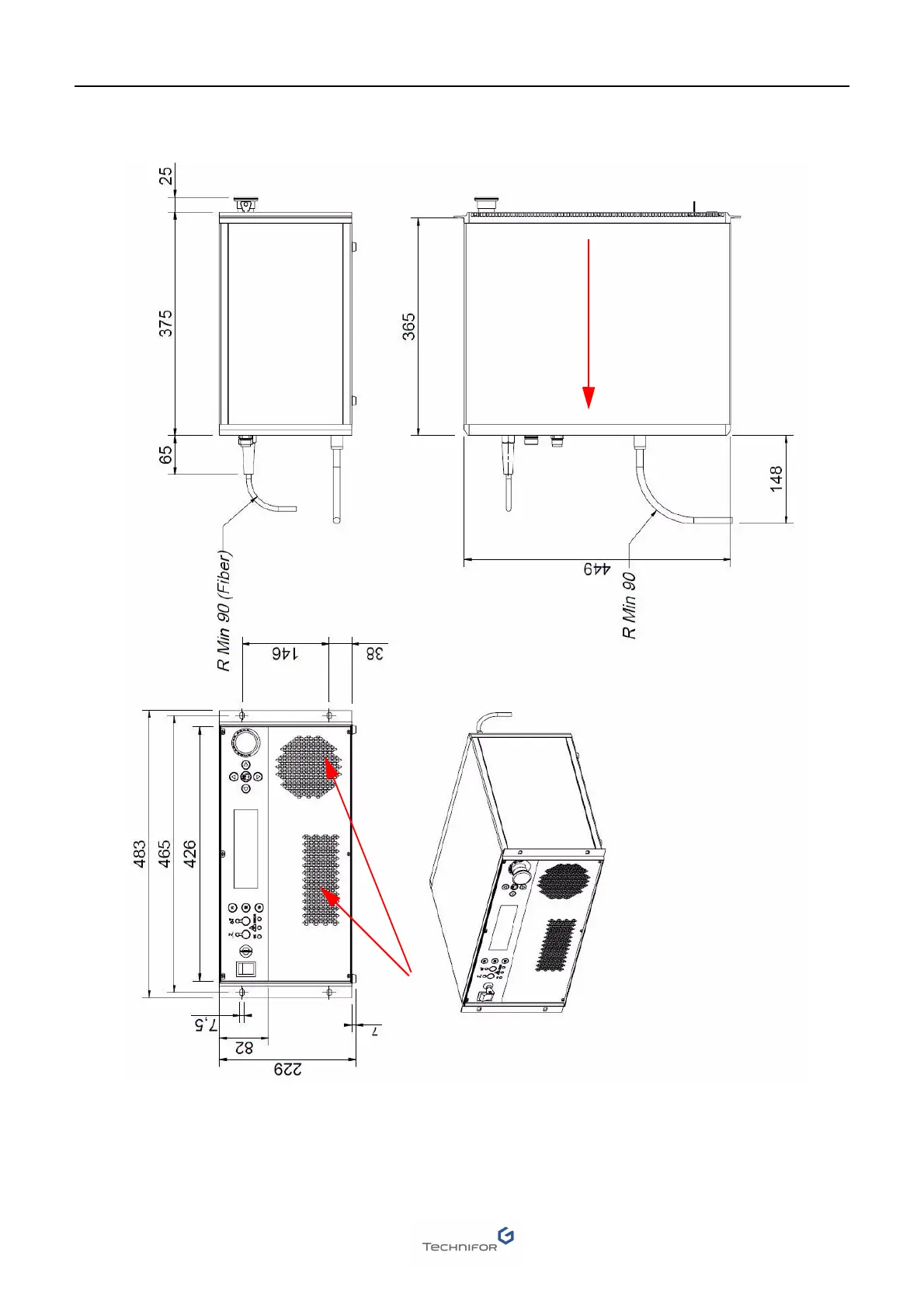

 Dimensional drawing of the Control Unit in rack configuration - standard version
Units: mm
1 : Air vent
2 : Airflow direction
1
2
