Ref. DCD01/3078 - TD412_en_C
22/62
DInstallation
1. Installation

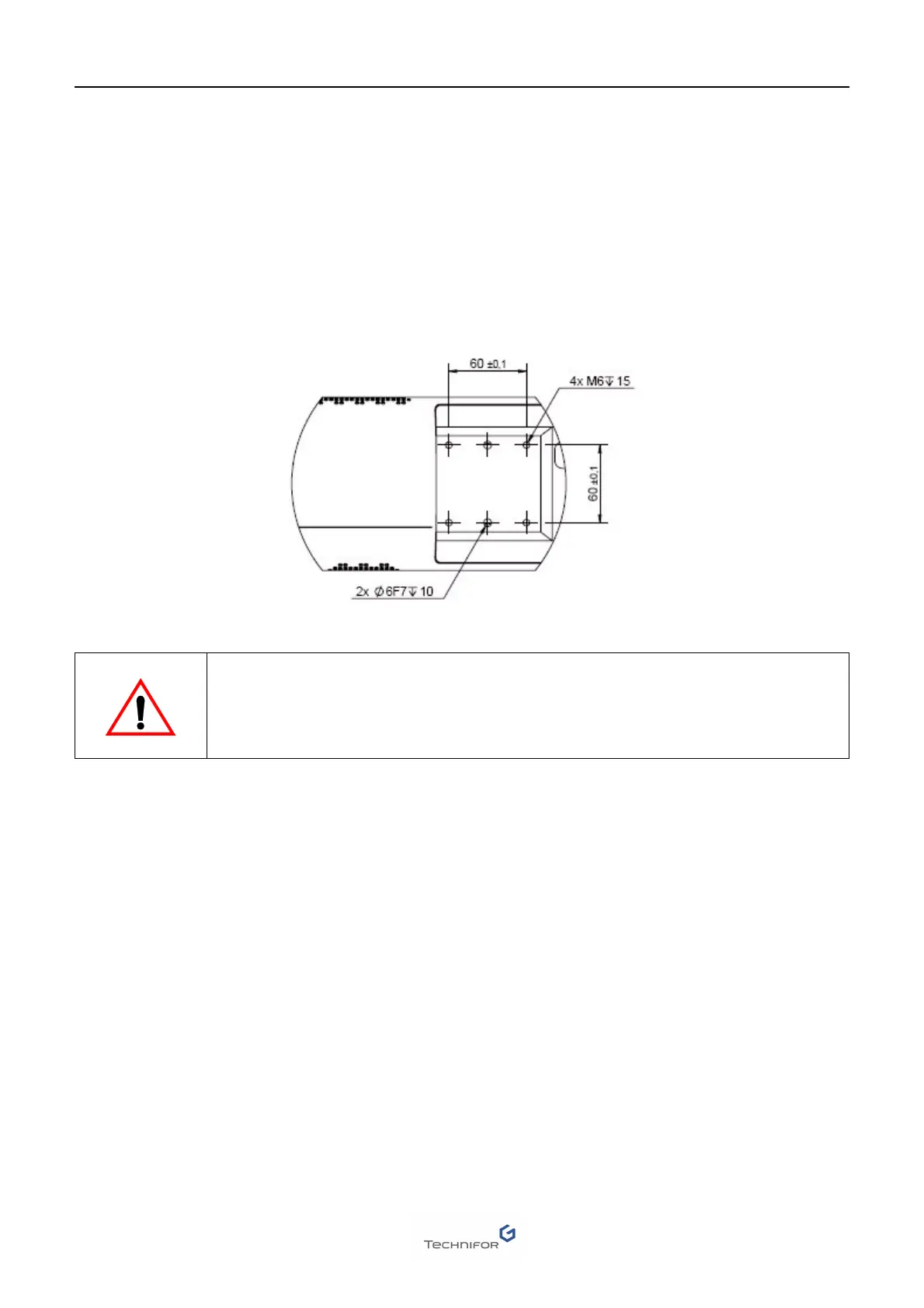

Mounting
Attach the TD412 integrable Laser to support using 4 M6 screws.
For alignment, there are positioning holes Ø 6 mm (0.236 in) F7 for Ø 6 mm (0.236 in) pin.
Bolts should not penetrate more than 15 mm (0.591 in) into the casing.
Pins should not penetrate more than 10 mm (0.394 in) in the casing.
Torque is 10 Nm (7.373 lb ft) maximum.
Never switch on the machine without first connecting the optical fiber to the CCU
(laser diode).
Never switch on the machine without first connecting the RF module/CCU connecting
cord.
Never operate the marking machine without its focal lens.
