Technifor TD412 - Dimensional Drawing: Protective Ring

AOperating instructions for the machine
C
Ref. DCD01/3078 - TD412_en_C
18/62

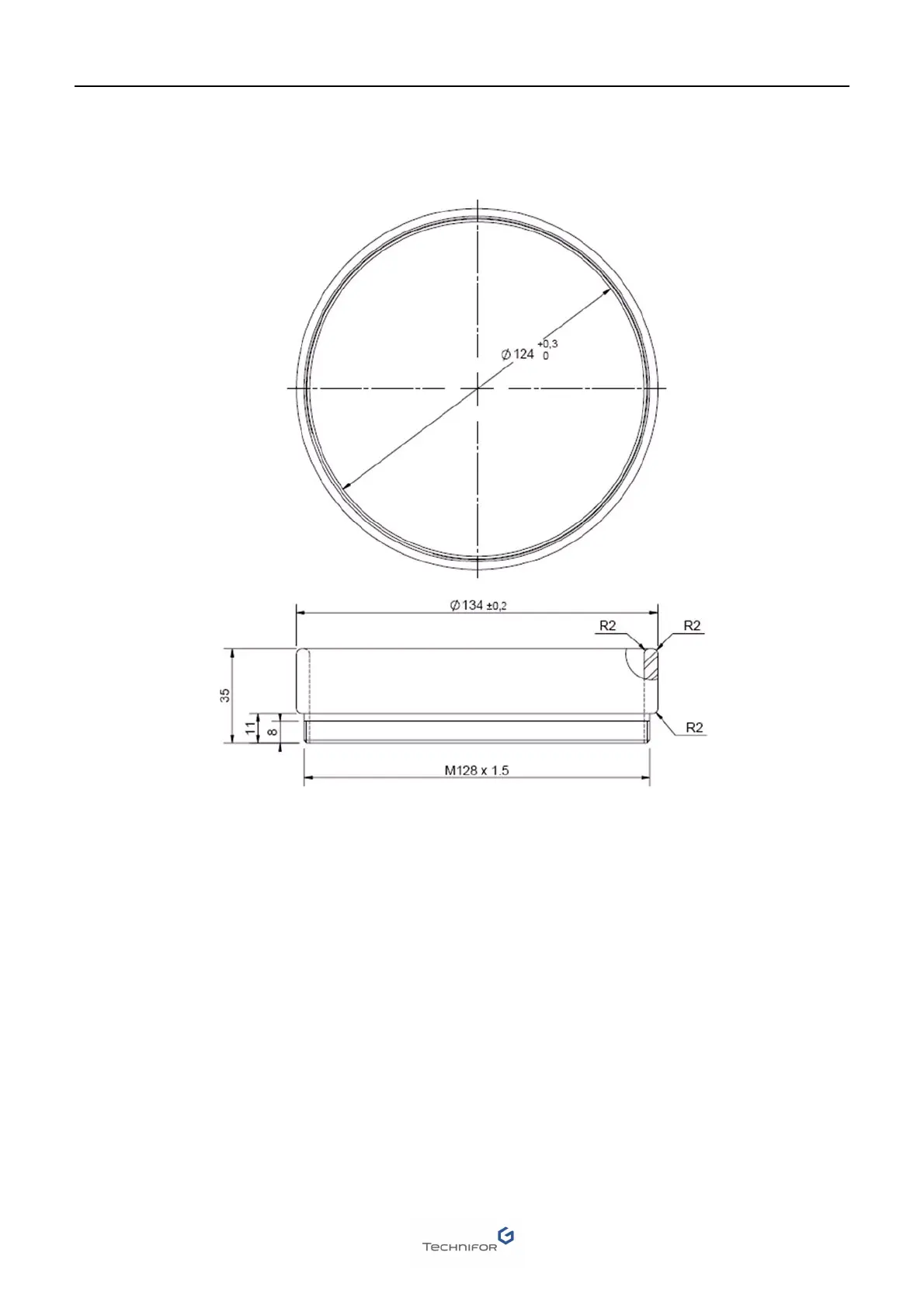

 Dimensional drawing: Protective ring
The protective ring is screwed to the optical output of the marking head. The ring can be unscrewed and replaced
by a link system between the marking head and the marking area for particular integration.
