CONTROL REFERENCE GUIDE
E-8

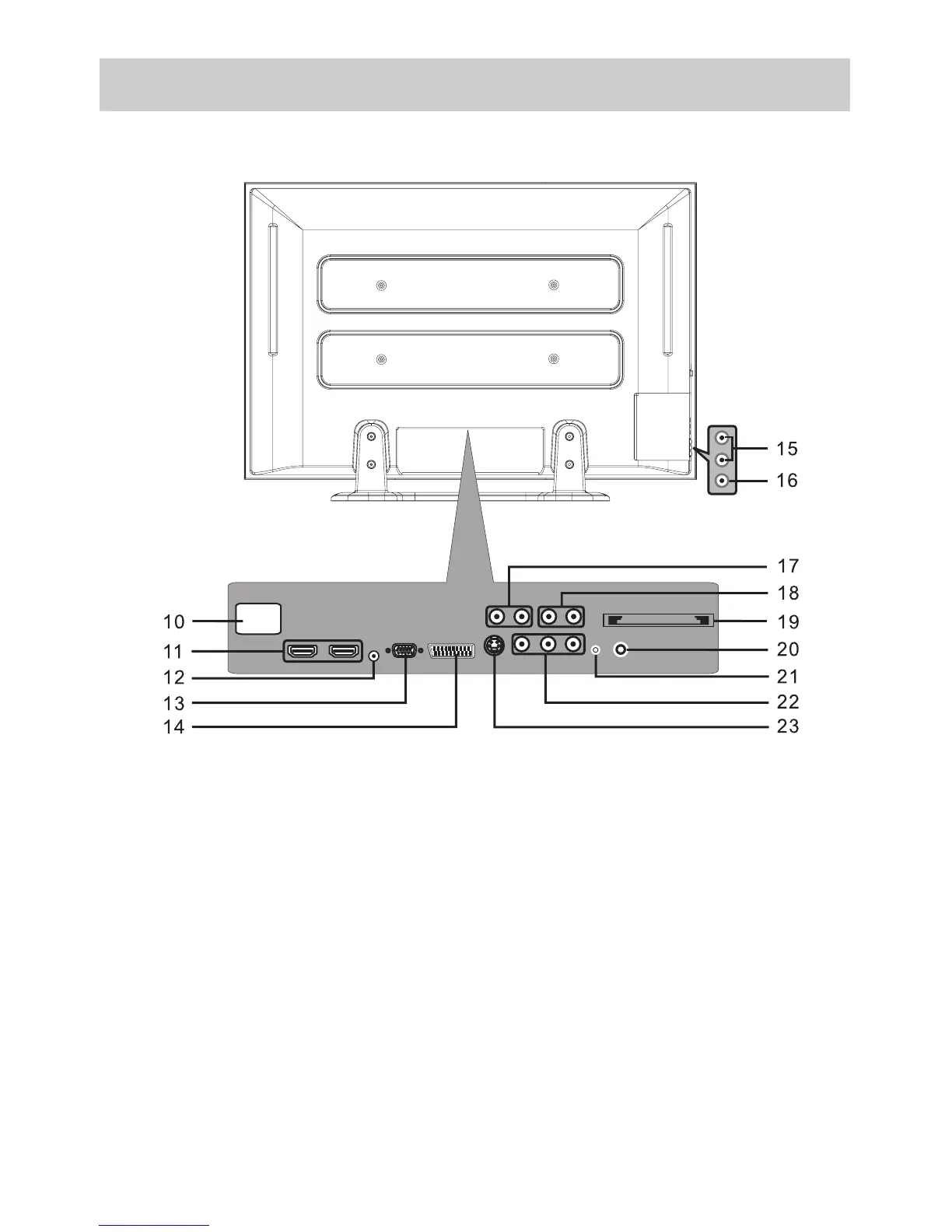

REAR VIEW
10. AC Socket
11. HDMI IN Jacks (HDMI IN 1 & HDMI IN 2)
12. AUDIO Jack (PC IN)
13. MONITOR / VGA Jack (PC IN)
14. SCART Jack (AV IN 2)
15. AUDIO IN (Left / Right) Jacks (AV IN1)
16. VIDEO IN Jack (AV IN 1)
17. AUDIO OUT (Left / Right) Jack
18. AUDIO IN (Left / Right) Jacks (YUV IN)
19. COMMON INTERFACE Slot
20. TV ANTENNA Terminal
21. HEADPHONES Jack
22. COMPONENT VIDEO IN (Y / PB / PR) Jacks
(YUV IN)
23. S-VIDEO Jack (AV IN 1)
