CONNECTIONS
CONNECTING TO A/V DEVICES (VCR, Camcorder, Game System, etc.)
Connecting to Devices with a Composite (yellow RCA-type) Video Output

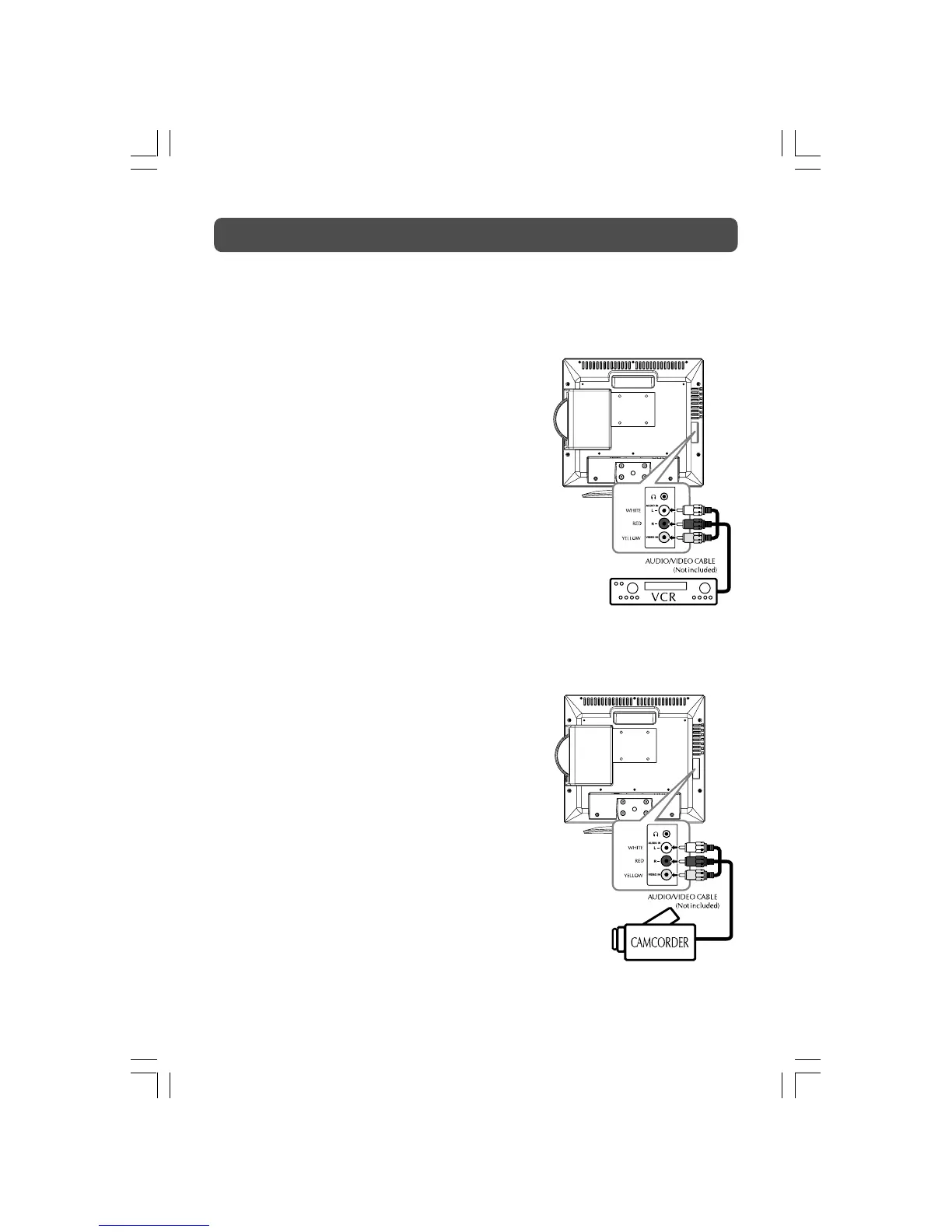

To connect to A/V devices such as a VCR or camcorder:
- Connect to a VCR
Connect the right (red) and left (white) audio output from
the VCR to the right (red) and left (white) input on this unit
(Audio cable not included).
Connect the video (yellow) output from the VCR to the
video input on this unit (Video cable not included).
Make sure you connect both audio and video from the same
VCR to the same input (AV IN).
Note:
Please refer to the user manual for the VCR for more
information.
- Connect to a camcorder
Connect the right (red) and left (white) audio output from
the camcorder to the right (red) and left (white) input on
this unit (Audio cable not included).
Connect the video (yellow) output from the camcorder to
the video input on this unit (Video cable not included).
Make sure you connect both audio and video from the same
camcorder to the same input (AV IN).
Note:
Please refer to the user manual for the camcorder for more
information.
If your VCR permits, then connect
your antenna to your VCR and VCR
RF out to your TV
