- 10 -

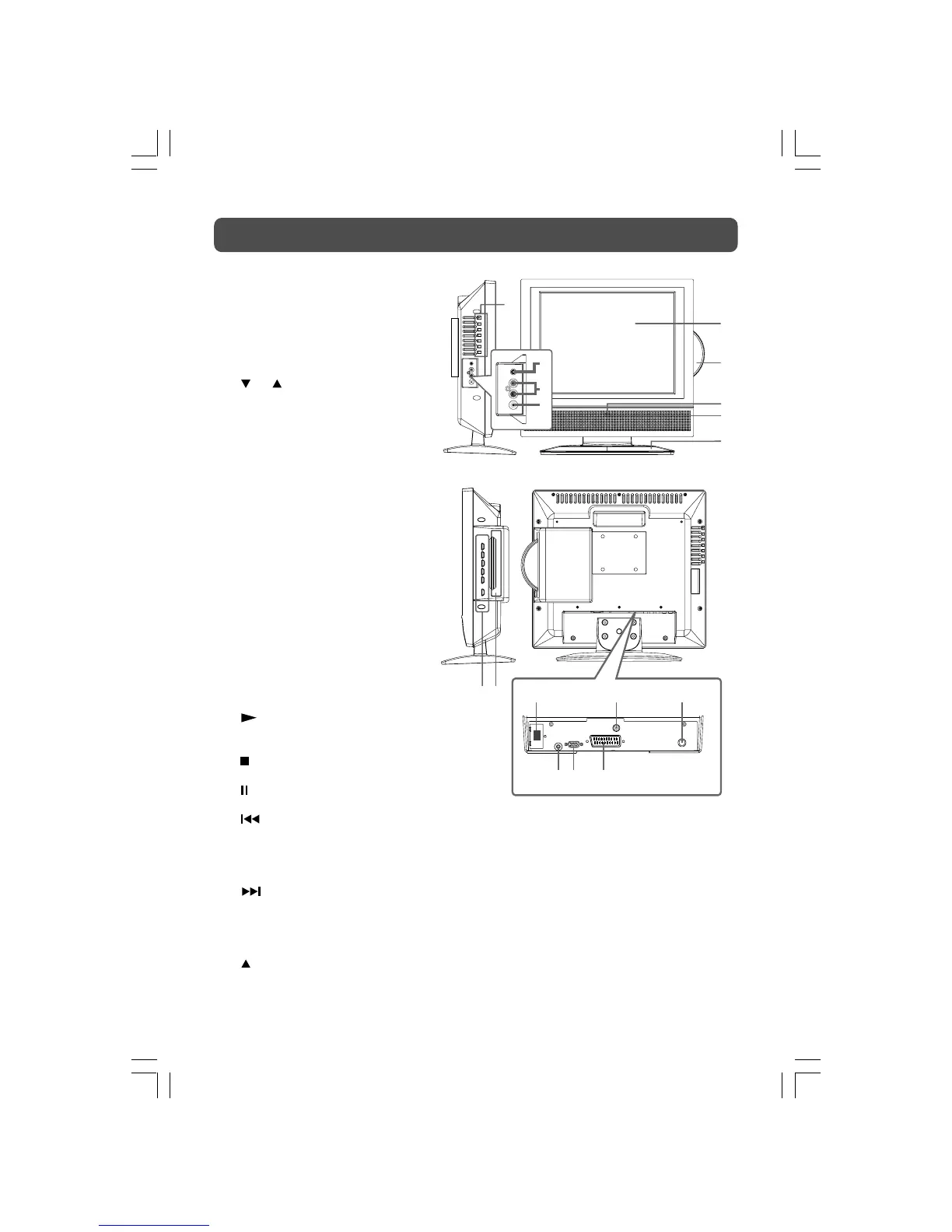

UNIT REFERENCE GUIDE
1) STD.BY/ON button
Turns the unit on and off.
MENU button
Enter the Setup menu.
FUNCTION button
Select TV, DTV, DVD, AV1, AV2/
SCART or PC.
CH buttons
Select a TV channel and highlight
selections (Up & Down) on the
menu screen.
– VOL + controls
Adjust the volume level and
highlight selections (Left & Right)
on the menu screen.
2) Headphone jack
3) AV IN Audio Input Jacks
(Left / Right)
4) AV IN Video Input Jack
5) Colour LCD Screen
6) Disc Door
7) Standby Indicator
Indicates wether the unit is ON or
in STANDBY (OFF) mode.
Light On: The unit is in STANDBY.
Light Off: The unit is turned ON.
8) Remote Control Sensor
Do not block this sensor or remote
control will not work.
9) Removable Stand
10)
PLAY button
Press to start or resume playback
of a disc.
STOP button
Stop playing a disc.
PAUSE button
Pause playback and frame advance.
PREV button
Press PREV button to go back to
previous chapters/tracks.
Press and hold to fast reverse
playback.
NEXT button
Press NEXT button to advance
chapters/tracks.
Press and hold to fast forward
playback.
PUSH OPEN button
To open and close the disc door.
11) Disc Tray
Push to close the disc door.
12) Power Cord
13) DVD Video Output Jack
14) TV Antenna Cable terminal - Coaxial TV antenna
input
15) PC IN Audio Jack
16) PC IN MONITOR/VGA jack
17) AV IN SCART Jack
5
8
9
10
15 16 17
14
13
6
11
12
2
3
4
7
1
2-12-3WO-1.pmd 22/08/2007, 17:0010
