- 24 -
CONNECTIONS

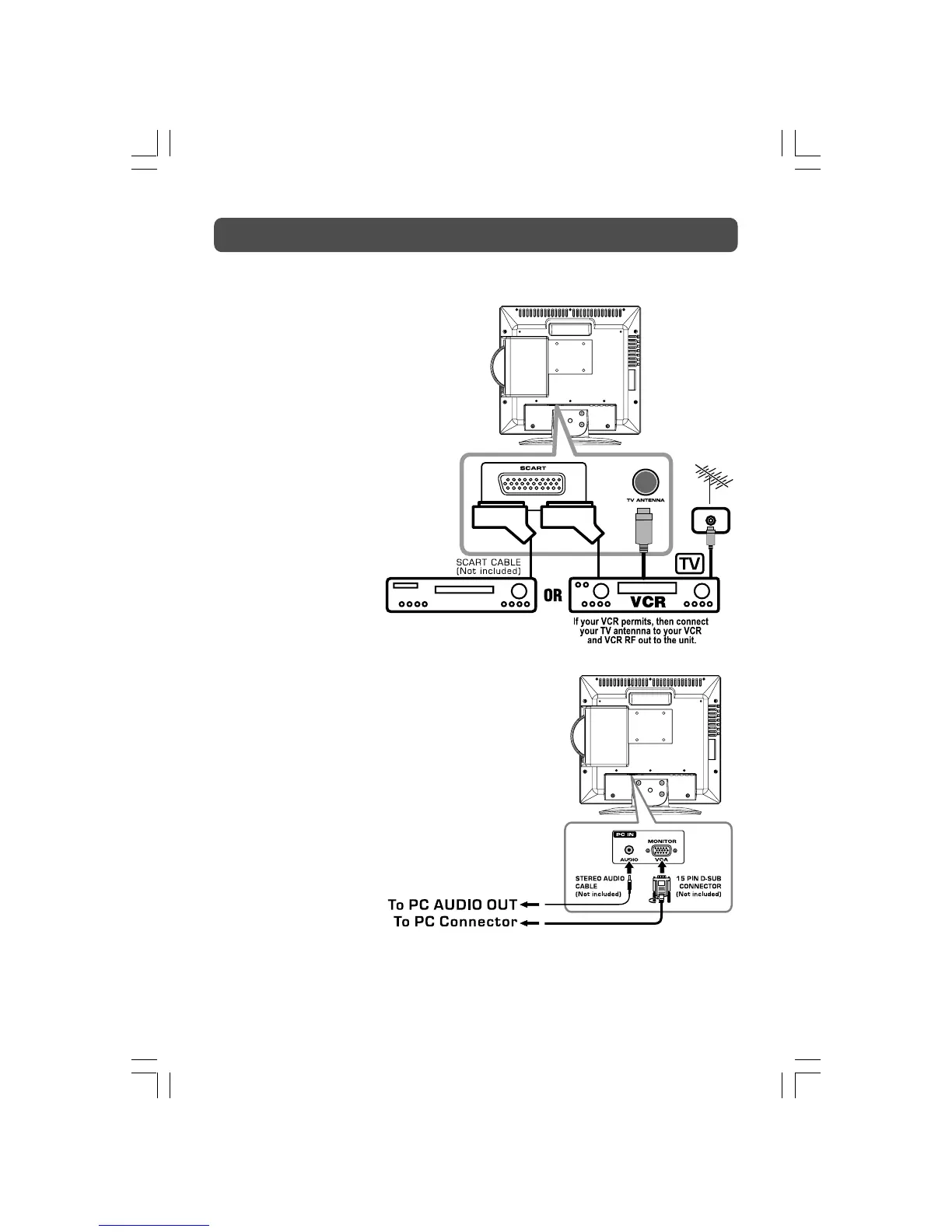

CONNECTING TO SOURCES WITH SCART
Devices with component video output
must be connected to the SCART input:
Connect the SCART from the source to
the corresponding SCART on this unit
(SCART cable not included).
Make sure you connect both SCART to
SCART.
To operate the connected device and play
the source, first press the FUNCTION
button or AV button twice to select the
AV2 /Scart mode.
CONNECTING A PC
Connect the 15-pin D-SUB PC/VGA connector from
your computer to the 15-pin D-SUB PC/VGA input
on this unit using a monitor cable (not included).
Connect a stereo audio cable (not included) to
the PC AUDIO IN jack on the bottom of this unit,
and the other end to the AUDIO OUT jack on your
computer’s sound card.
Note :
• If the TV is cold, there may be a small “flicker” when the set is switched on. This is normal,
there is nothing wrong with your TV.
• If possible, use the VESA 1,024 x 768@60 Hz video mode to obtain the best image quality for
your LCD monitor. If used under the other resolutions, some scaled or processed pictures may
appear on the screen. The TV has been pre-adjusted to the mode VESA 1,024 x 768@60Hz.
