When using an optional DVB-S tuner module for operation with four antenna signals:
h Additional connection for LNB 3 to the LNB Input 3 on the DVB receiver.
i Additional connection for LNB 4 to the LNB Input 4 on the DVB receiver.
When using an optional DVB-S tuner module for operation with one antenna signal:
h Connection for LNB 1 to the LNB Input 3 on the DVB receiver.
j Connection for the loop out to the LNB Input 1 (b) on the DVB receiver.
When using an optional DVB-C/T tuner module:
g Cable connection (digital) and/or the DVB-T antenna connection with the RF IN
antenna input on the DVB receiver.
k Connection for the loop out with the loop IN (l) of the DVB-C/T tuner module.

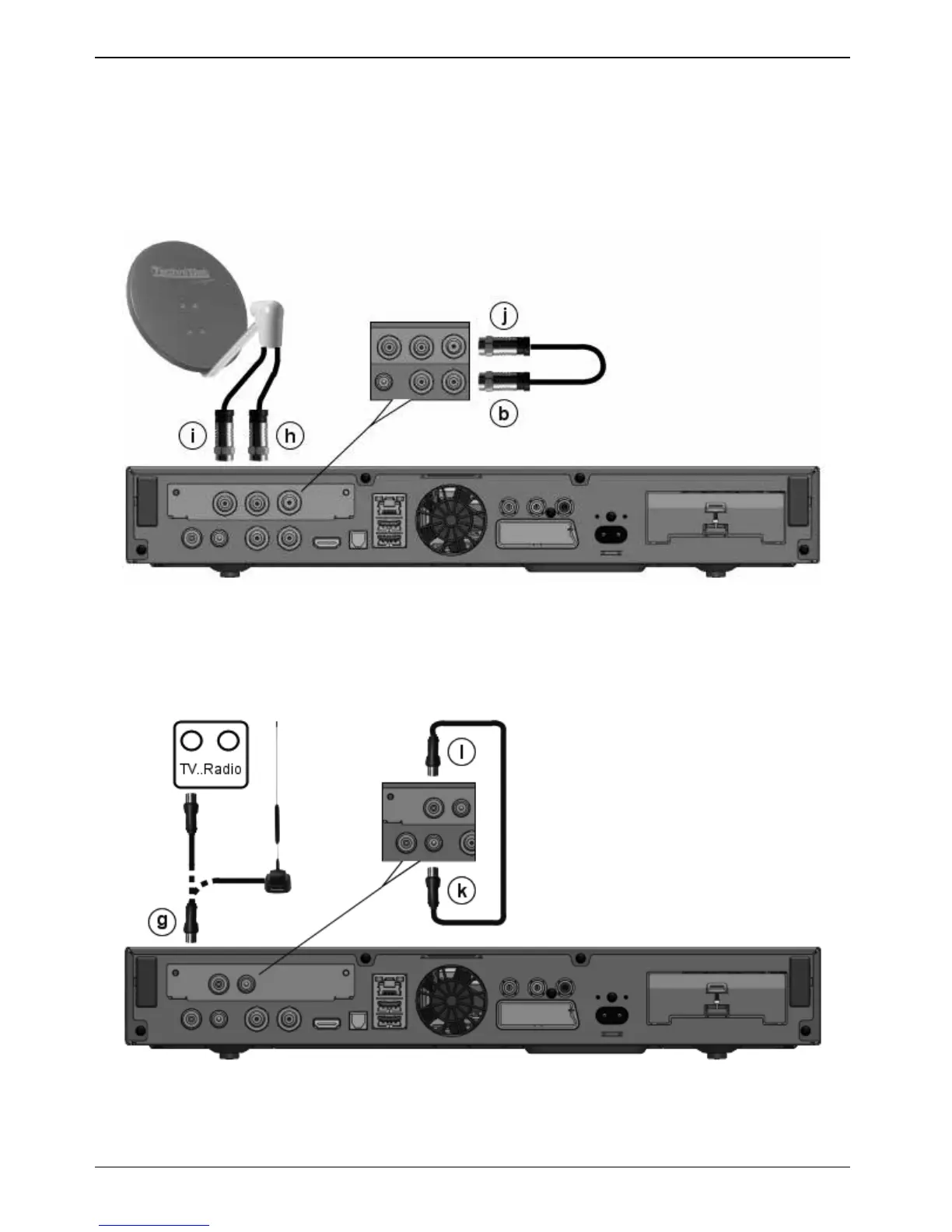

The following references (a b c etc.) refer to the illustrations commencing on the previous
page onwards.
