Analogue function
23

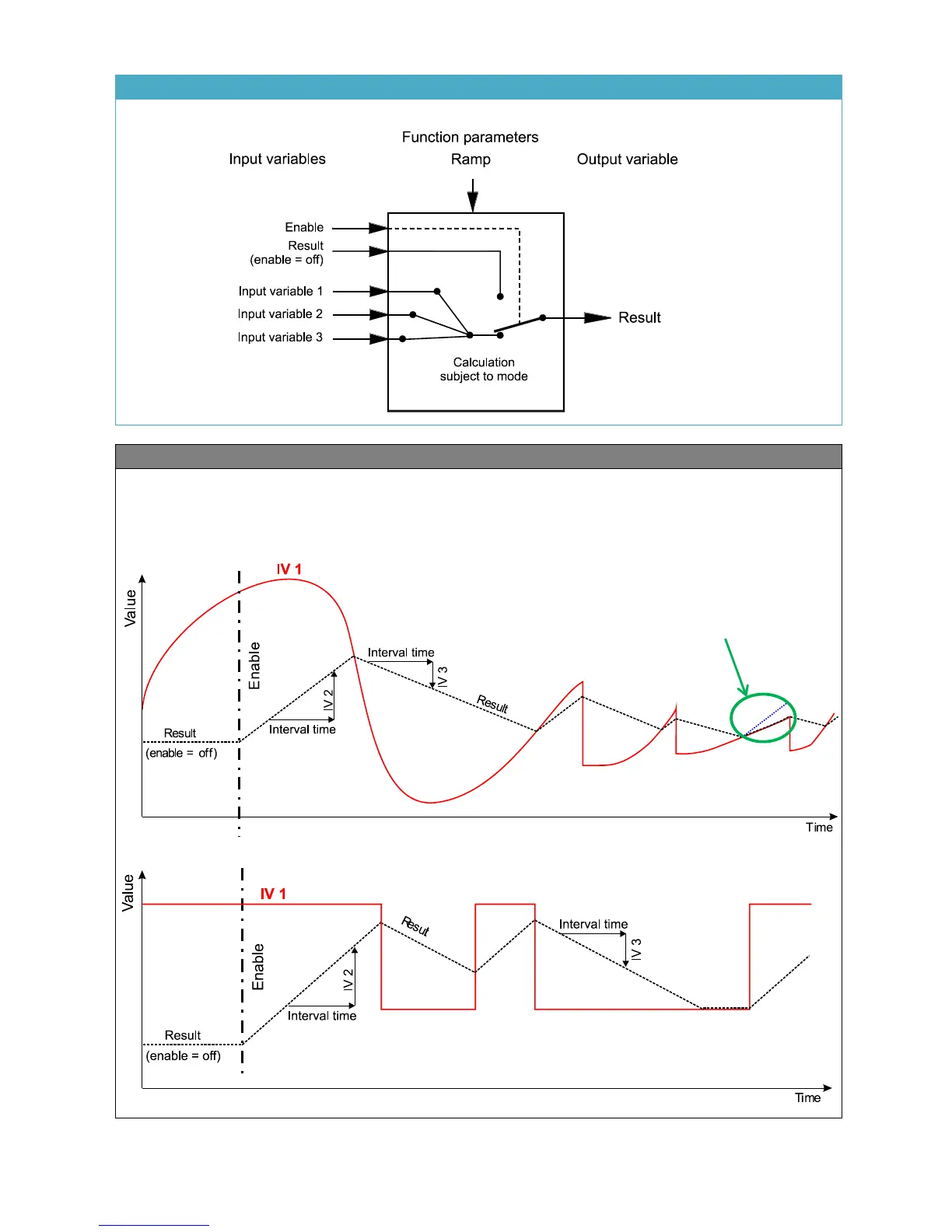

Standard diagram for Ramp
Function description for Ramp
In Ramp mode, the result is constantly aligned with the value of input variable IV1. With the help
of input variables 2 and 3 and the interval time, the slope of this alignment is specified for a rising
or falling value.
Schematic diagrams
Characteristics in relation to sudden changes in input variable IV1
If the slope of input
variable 1 is lower than
that of the alignment, then
the lower slope is adopted.
