BIKERACE: Service & Maintenance Manual - rev. 1.1
Page 3.1
3. PRINCIPLES OF OPERATION
3.1. BLOCK DIAGRAM

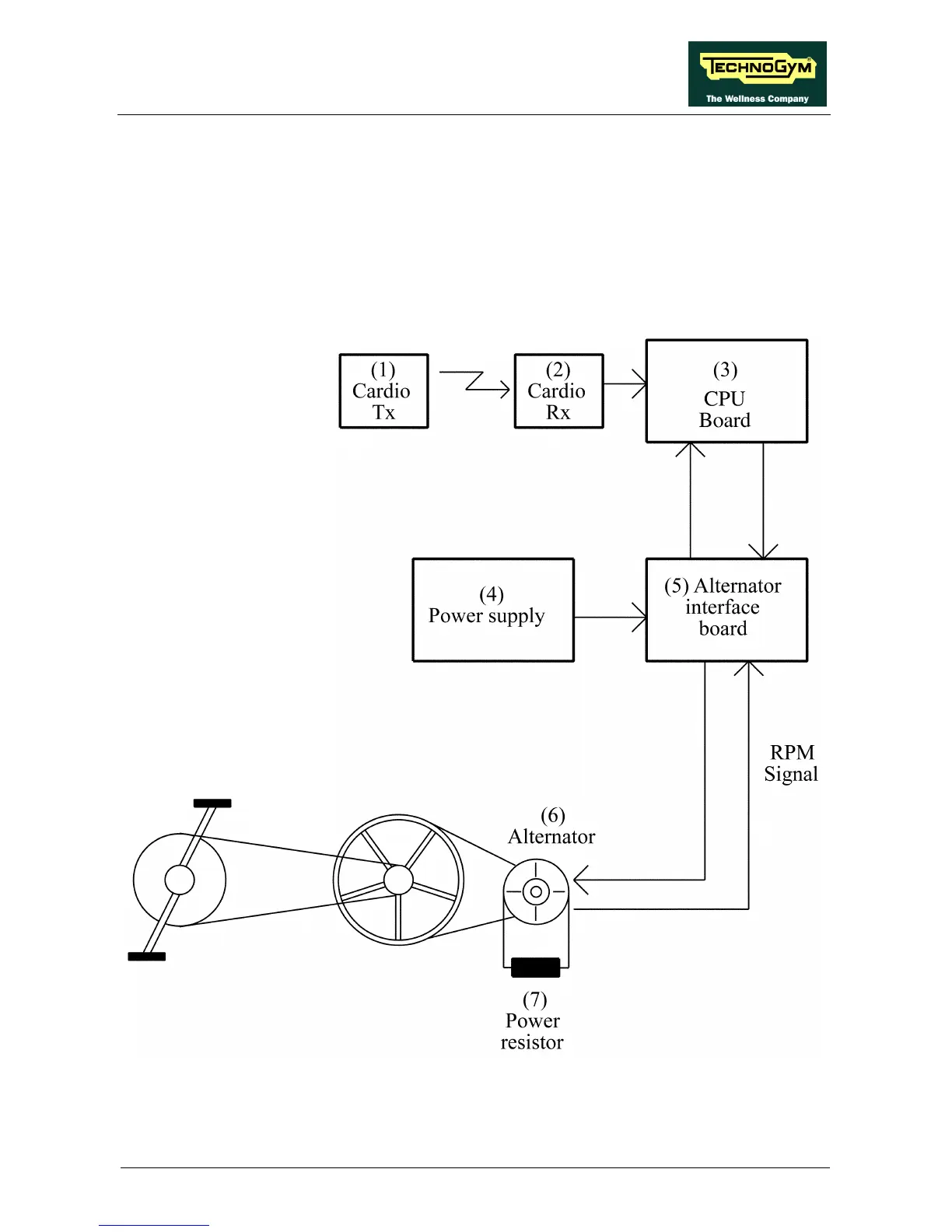

The block diagram of the machine is shown in the figure below:
(1) CARDIO TRANSMITTER
It is worn by the person using the machine, and transmits to the cardio receiver one pulse for
every heart beat that is detected. There are 2 types of transmitter:
