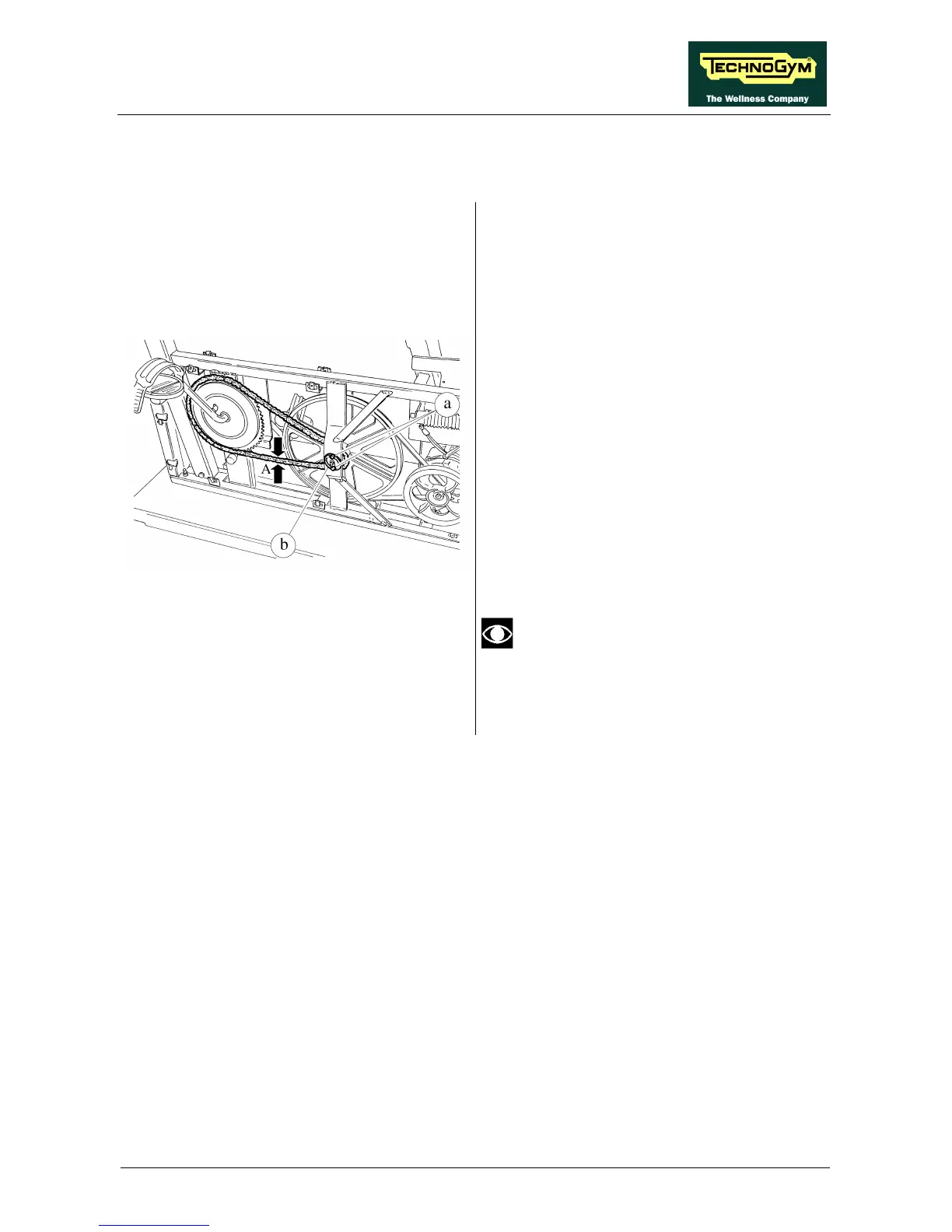

Figure 8.4-1
Carry out the procedures described in paragraph
7.6. “Disassembling the right and left side
guards”.
From both sides of the frame:
1. Back off the 2 screws a which fix cam b onto
the frame using a 4-mm hex T wrench.
2. Turn the cams in a clockwise or
anticlockwise direction to loosen or tighten
the chain, until the vertical play at point A is
approximately 1 cm.
3. Check the amount of play at point A for
different pedal positions.
4. Lock down the 2 screws a from both sides of
the frame.
After completing the procedure, check
the alignment of the chain as described
in paragraph 8.3. and check the belt
tension as described in paragraph 8.2. .
