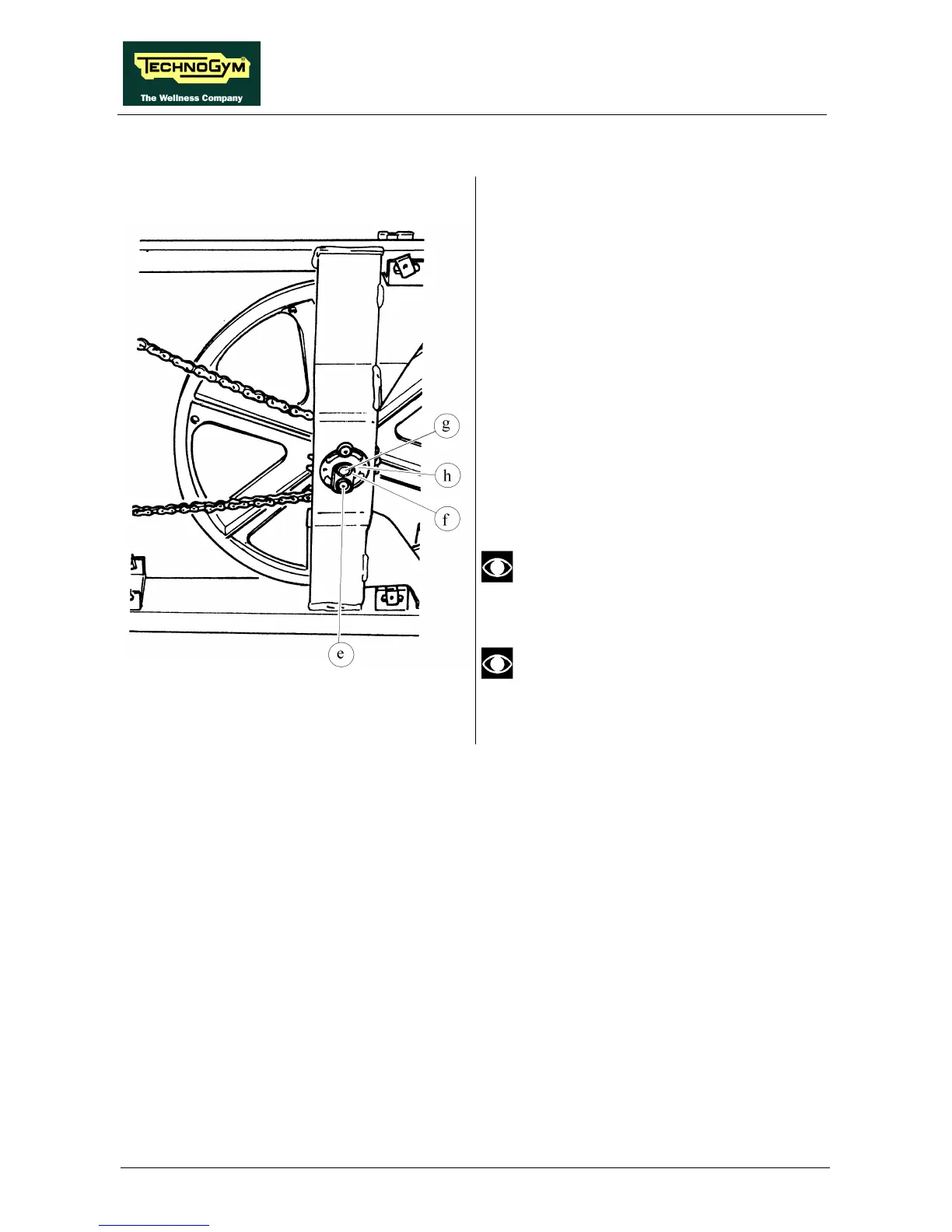

Figure 8.3-3
Carry out the procedures described in paragraph
7.6. “Disassembling the right and left side
guards”.
Working from the right-hand side:
1. Unscrew the screw e using a 4-mm hex T
wrench.
2. Remove bracket f which clamps adjuster pin
g.
3. Using a 4-mm hex T wrench, rotate pivot h
in a clockwise or anticlockwise direction to
shift the pulley to the left or to the right.
4. After completing the adjustment, lock down
what previously backed off.
To ensure correct alignment of the
chain, move it back and forth and make
sure that there is no noise.
After completing this procedure, check
the chain tension as described in
paragraph 8.4. .
