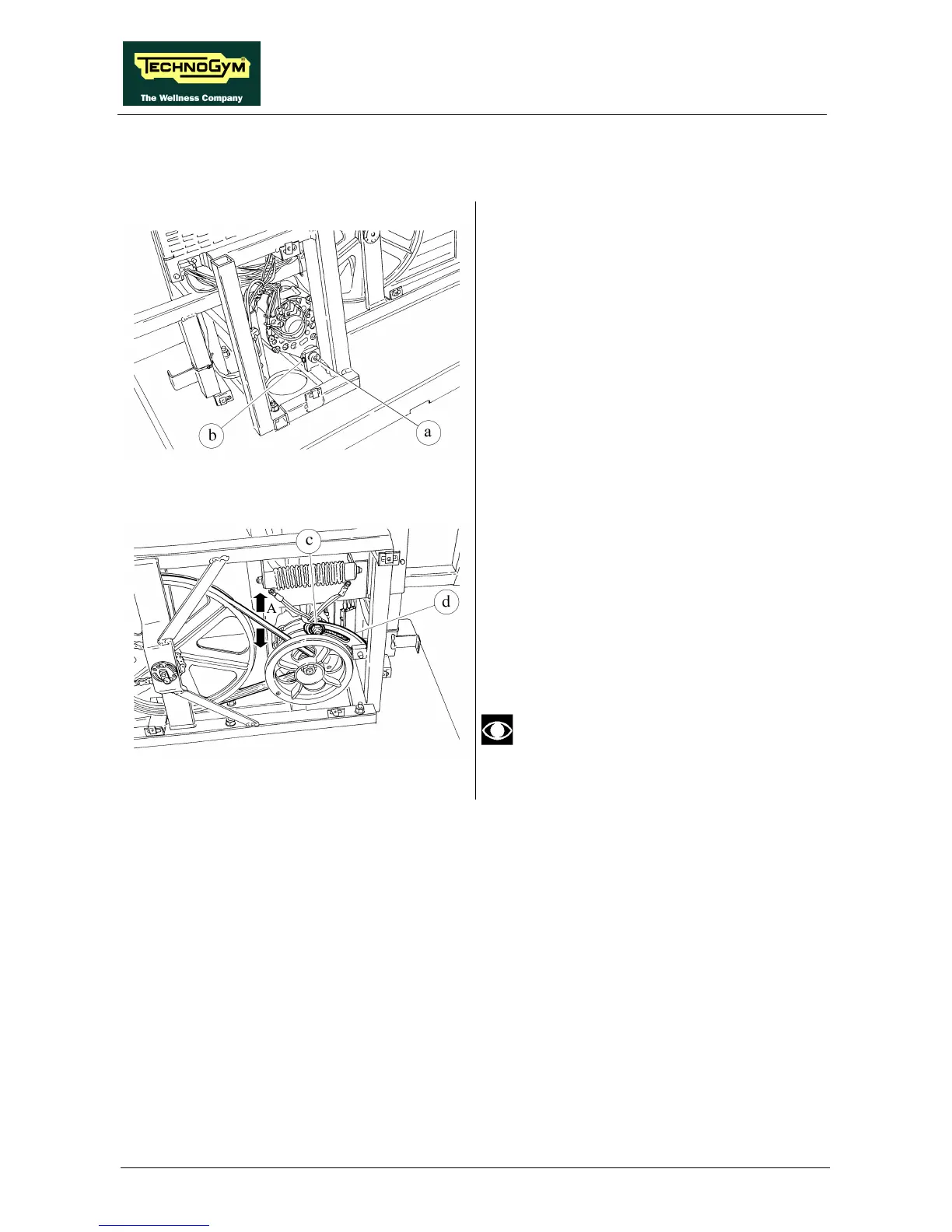

Figure 8.2-1
Carry out the procedures described in paragraph
7.6. “Disassembling the right and left side
guards”.
1. Back off lock nut of alternator pivot a using a
19-mm wrench.
2. Back off dowel b of alternator pivot a.
Figure 8.2-2
3. Back off nut c of belt tension rod d using a
17-mm wrench.
4. Rotate the alternator on its pivot a in such a
way that, at point A, belt has a vertical play
of approximately 1 cm.
5. After completing the adjustment, lock down
what previously backed off.
After completing this operation, check
the belt tension again.
