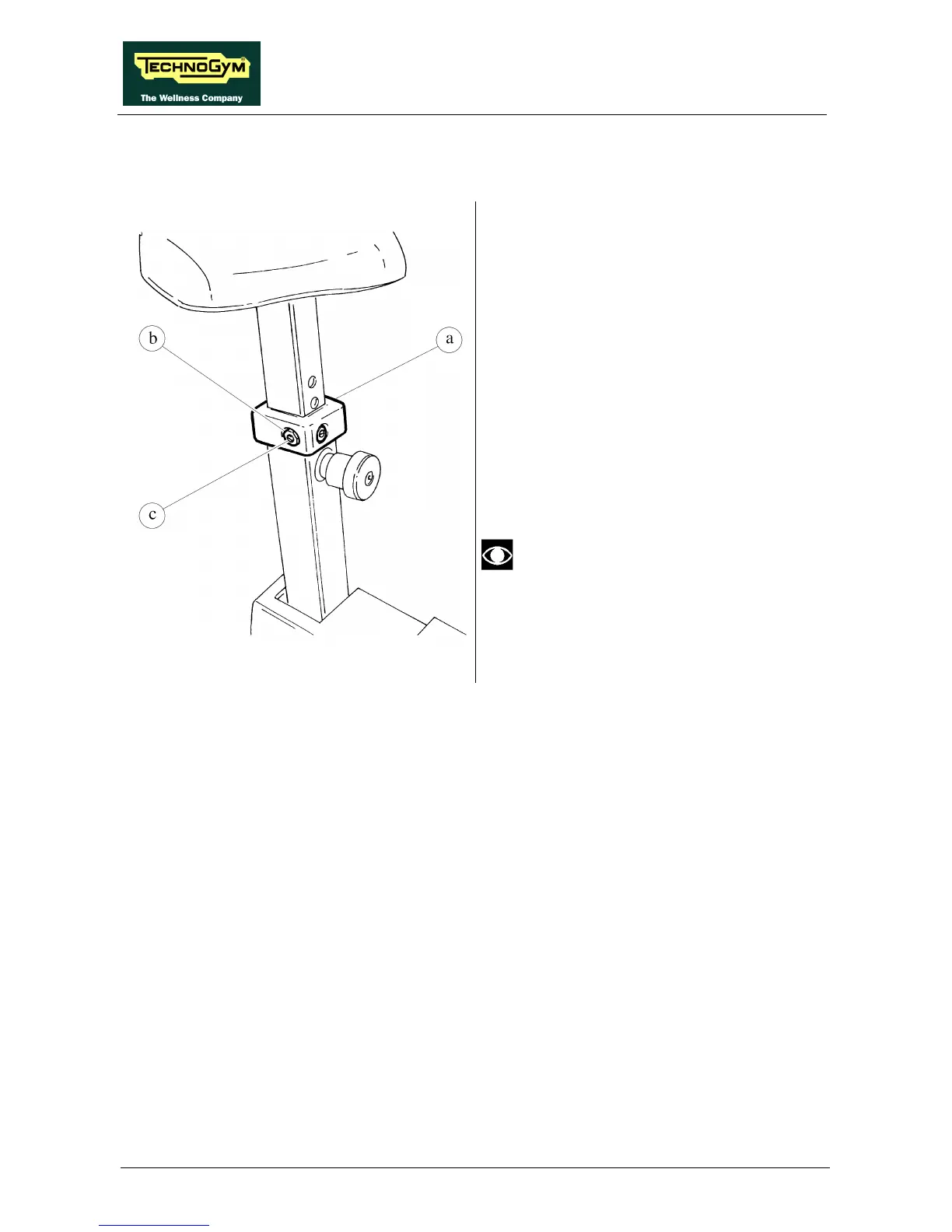

Figure 8.5-1
1. Turn off the machine and unplug the mains
lead from the wall outlet.
2. Raise the rubber protection a.
On each of the 4 fixing points:
3. Back off the stop nut b using a 17-mm
wrench.
4. Adjust the amount of play by locking down
or backing off the screw c using a flat-blade
screwdriver.
The saddle stem is also fixed at 4 points
inside the guards on the lower part of
the frame.
