7.6. DISASSEMBLING THE RIGHT AND LEFT SIDE GUARDS

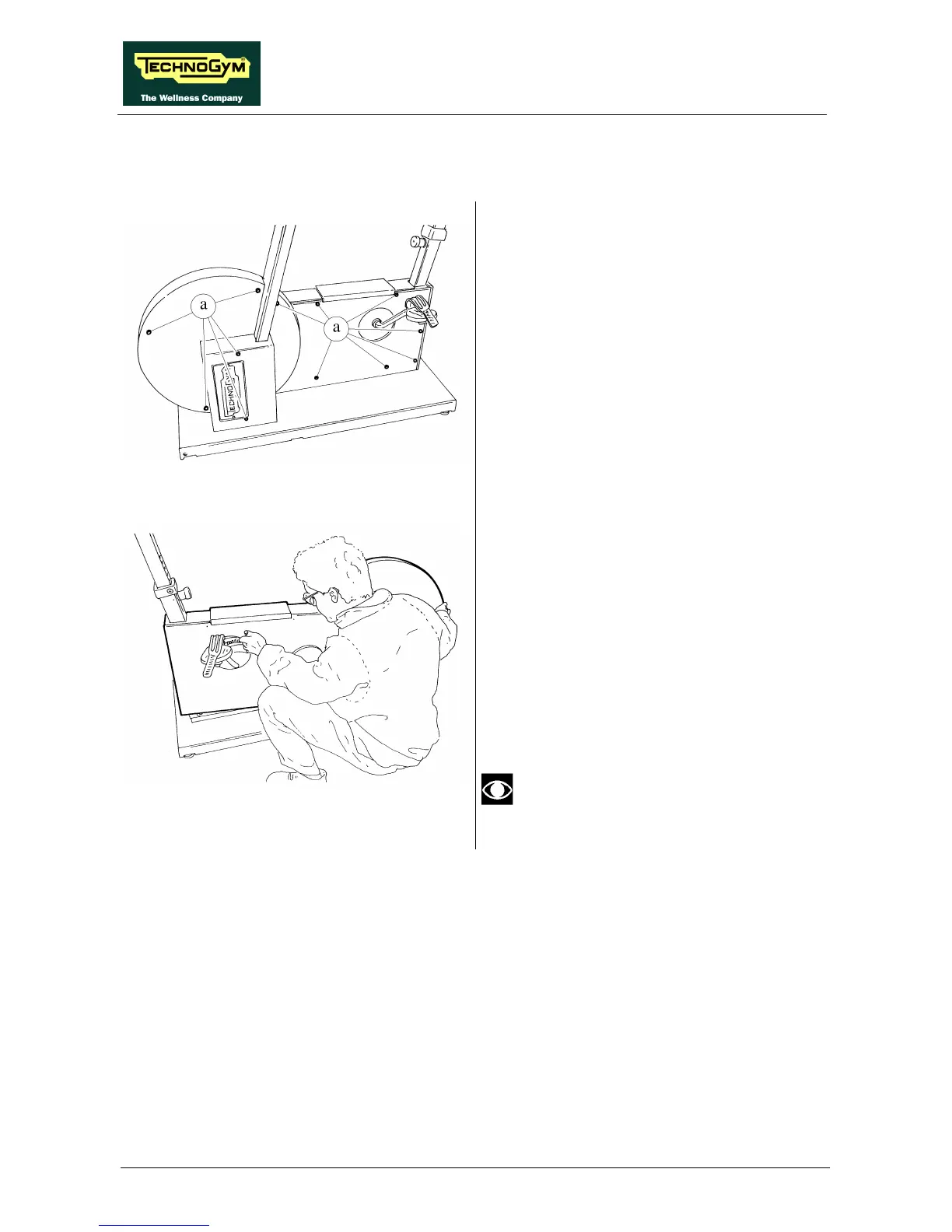

Figure 7.6-1
1. Turn off the machine and unplug the mains
lead from the wall outlet.
2. Unscrew the 12 self-tapping screws a which
fix the LEFT SIDE GUARD using a large
Phillips screwdriver.
3. Unscrew the 12 self-tapping screws a which
fix the RIGHT SIDE GUARD using a large
Phillips screwdriver.
4. Back off the 2 self-tapping screws which fix
the 2 SIDE GUARDS using a large Phillips
screwdriver.
Figure 7.6-2
5. Push the right pedal toward the top of the
machine and remove the RIGHT SIDE
GUARD, using your right hand to help
separate the 2 SIDE GUARDS.
6. Push the left pedal towards the back of the
machine and remove the LEFT SIDE
GUARD.
To reassemble the SIDE GUARD, carry out the
above steps in reverse order.
It is also possible to disassemble only one
of the 2 SIDE GUARDS.
