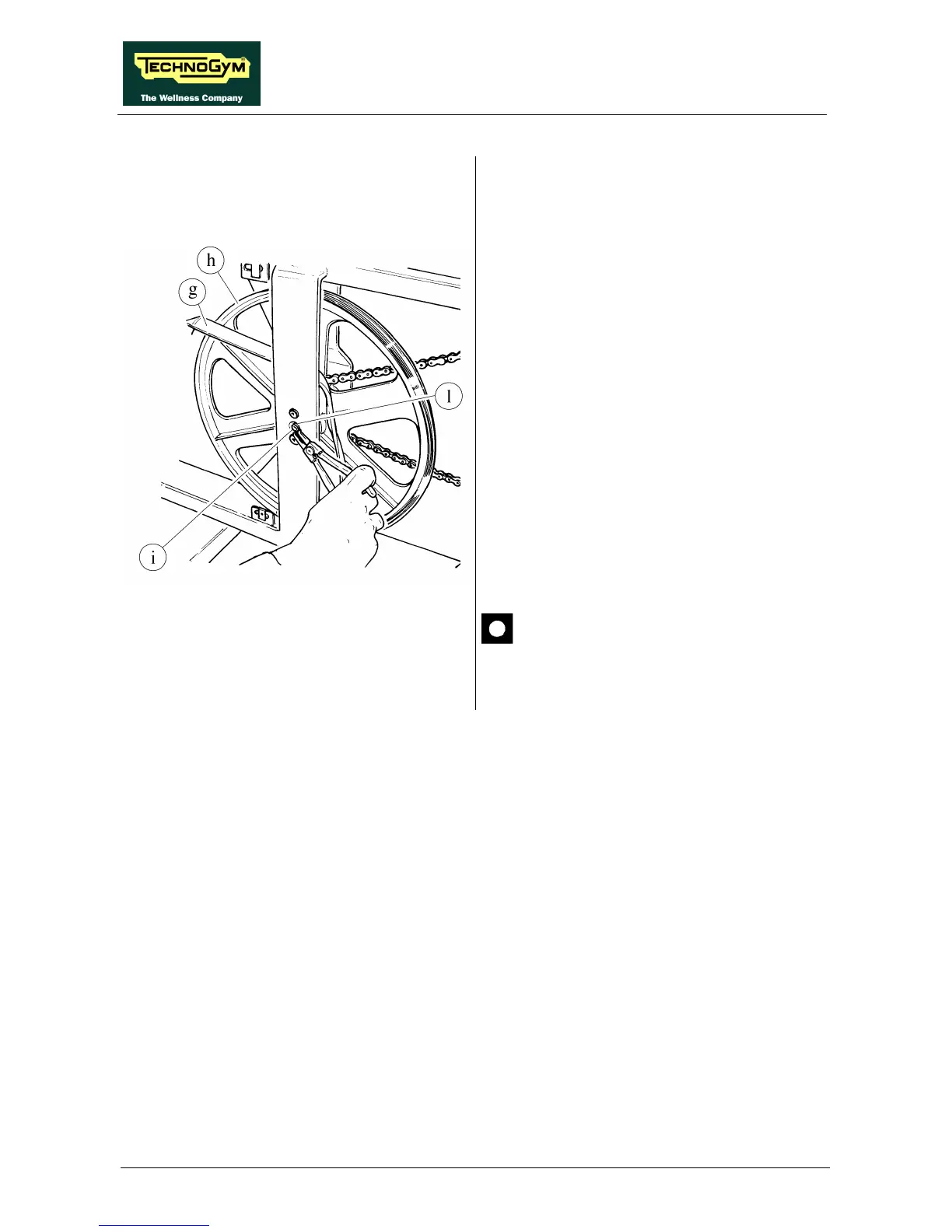

Figure 7.9-4
From the left-hand side of the machine:
8. Remove BELT g from the guide of pulley h.
9. Remove snap ring i using the special pliers.
10. In the case of a non-threaded pin: use a
pointed tool to push pin l inward, taking care
to recover the Teflon spacer and the washers
if present, until there is sufficient space for
the BELT to pass through.
11. In the case of a threaded pin: push the pin
toward the left until there is enough space for
the BELT to pass through.
12. Remove the BELT.
To reassemble the BELT, follow the above steps
in reverse order.
After completing the procedure, adjust
the alignment and tension of the belt as
instructed in paragraphs 8.1. e 8.2. .
