Technogym VISIO E0000236 - Power Supply Input and Hmi Connections; Cable Length

TECHNOGYM VISIO 32” Pre-Installation Requirements
Rev. 1.0
- 17 -PIR-00328-EN - Uncontrolled copy if printed

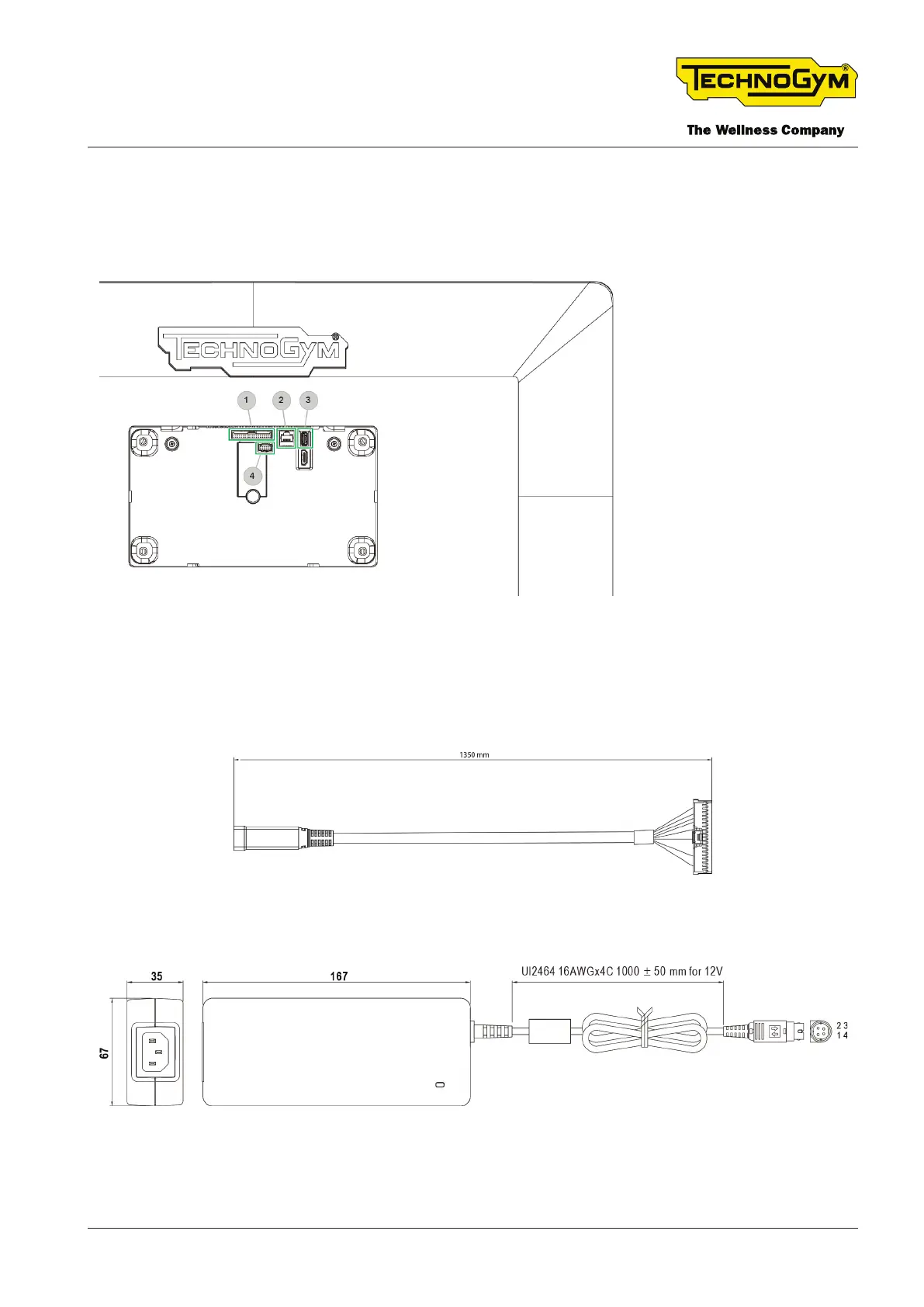

4.2.1 POWER SUPPLY INPUT AND HMI CONNECTIONS
The power supply input (1) is located in the rear side of the Technogym Visio 32”, as shown in gure
below.
Fig. 7
1. Power supply input
2. Network cable
3. USB port for software
update
4. Not used
4.2.2 CABLE LENGTH
1. Cable length from display to external power supply: 1350 mm;
Fig. 8
2. External power supply cable length: 1000 mm;
Fig. 9
3. Standard power cable (from power supply to 220 V plug): 2500 mm.
