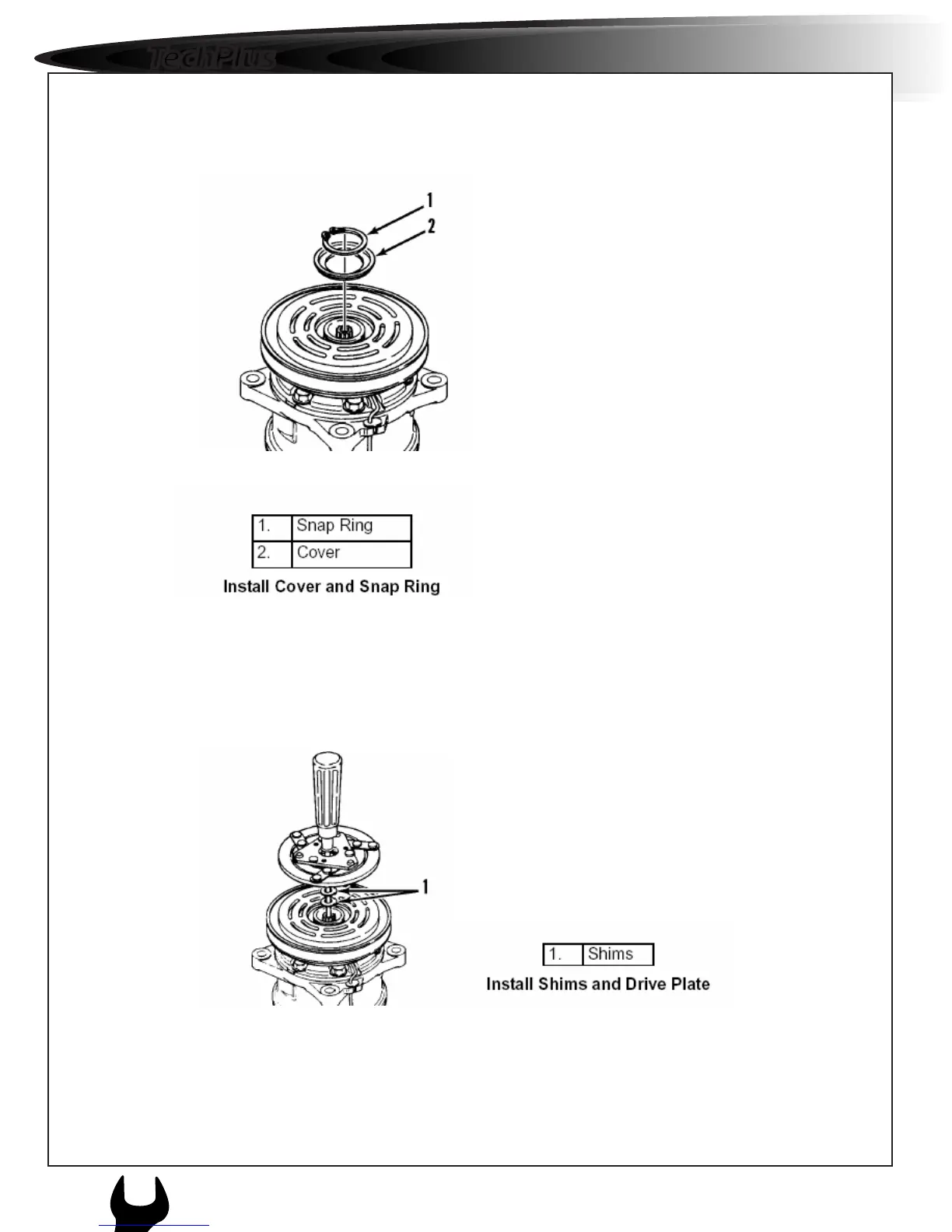

6. Install the driver plate on the drive shaft, together with the original shim(s).
Press the drive plate down by hand.
7. Tighten the bolt to the required torque specifications using the puller arbor
to prevent drive plate rotation. Torque bolts to 8.7 – 10.1 ft. lbs. After
tightening the bolt, ensure that pulley rotates smoothly.
