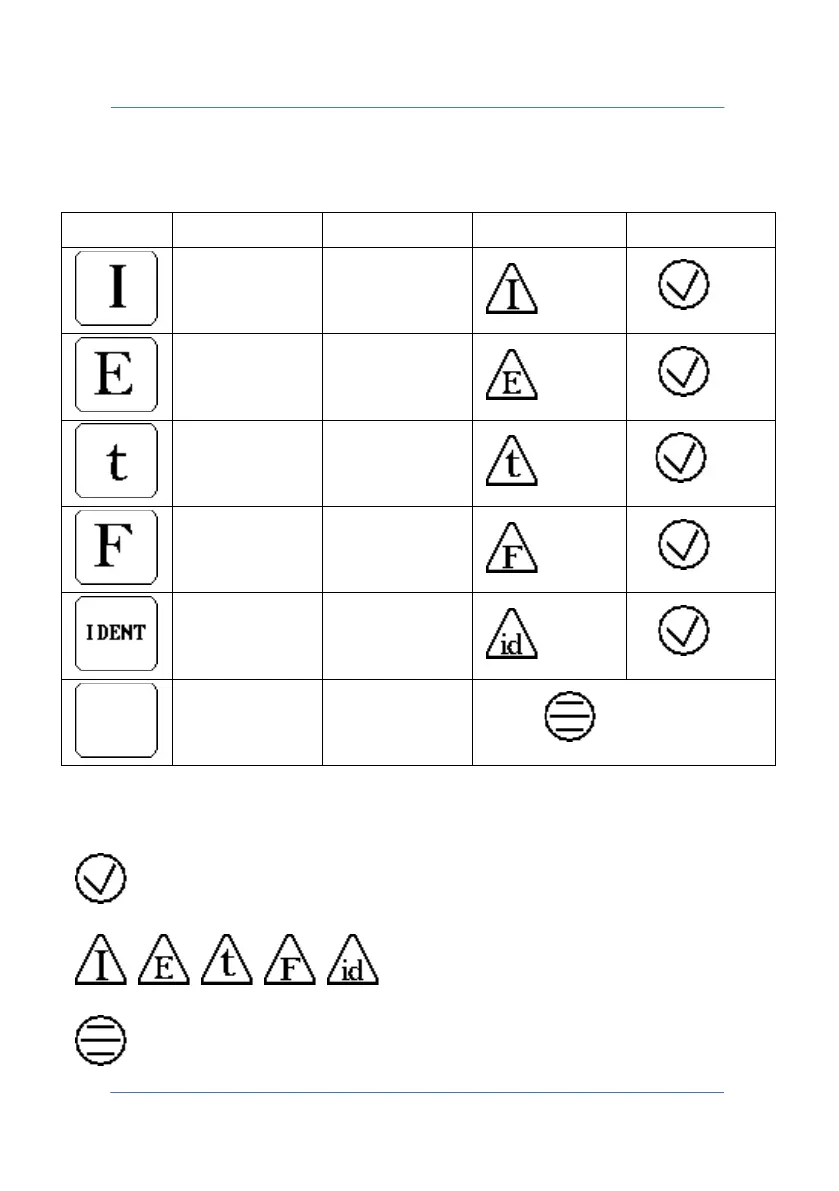

Below is the key to the welding limits managed by the measuring
instrument.
Type
Minimum
Maximum
Limit
OK
000.0 kA 999.9 kA
OK
00000 J 60000 J
OK
0000 mS 9999 mS
OK
0000.0 daN 6000.0 daN
OK
0.000 mm 9.999 mm
OK
- - - - - - - - - - - -
NO LIMITS
The outcome of the measurement is shown at the bottom right of the
MEASUREMENT DATA screen at the end of the acquisition process.
measurement within limits.
measurement outside limits.
Limits not active.
