TECNA TE1700 - Current Config Menu

TECNA WELD TESTER TE1700

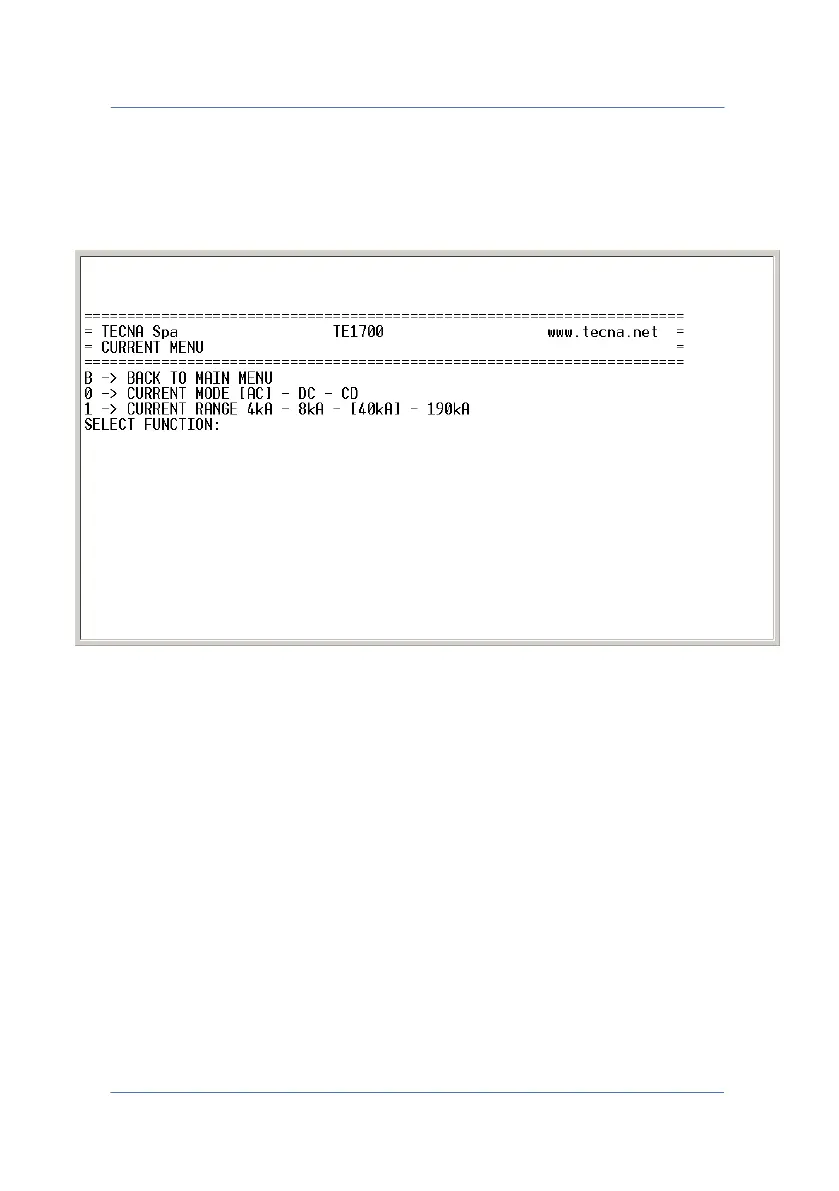

6.1.4 CURRENT CONFIG MENU
Current probe configuration menu.
B BACK TO MAIN MENU: Returns to the main menu.
0 CURRENT MODE: For selecting the amperometric source AC, DC or
CD for the current probe.
1 CURRENT RANGE: For selecting the amperometric rate 4kA, 8kA,
40kA or 190kA for the current probe currently inserted, in this case a
ROG x1.
PAGE 64
