TECNA WELD TESTER TE1700

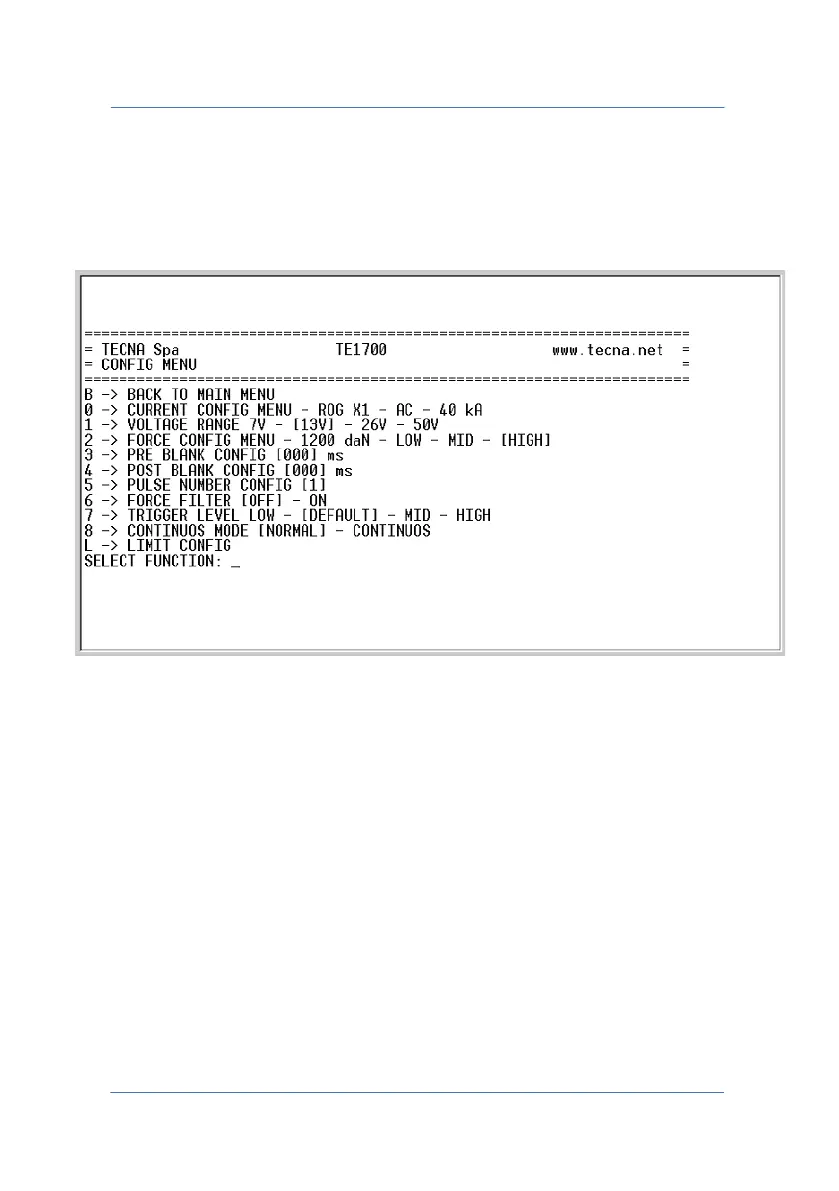

6.1.3 INSTRUMENT CONFIG MENU
Instrument configuration menu.
The numbers and letters on the left of the arrow "" are the keys to
be pressed on the terminal to perform an action on the element
indicated to the right of the same arrow.
B BACK TO MAIN MENU: Returns to the main menu
0 CURRENT CONFIG MENU: Allows access to the current probe
configuration menu.
1 VOLTAGE RANGE: For setting the voltage rate 7V, 13V, 26V or
50V.
PAGE 62
