TECNA WELD TESTER TE1700

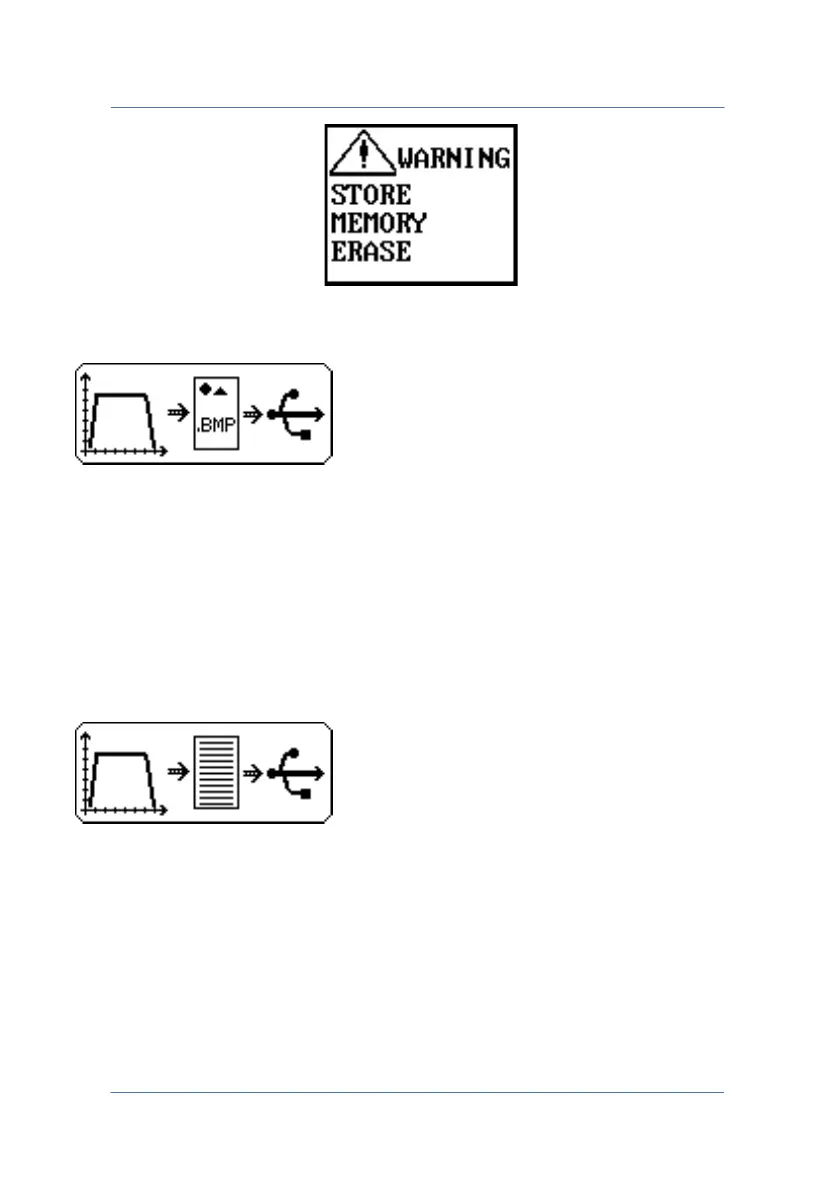

Saves the measurement graph to a pen-drive; the graph is saved as a
bitmap image in 320x240 format. The saved image is visible in the
MEASUREMENT GRAPH menu; the quantities selected in the menu are
consequently saved.
4.1 MEASUREMENT GRAPH CONFIGURATION
Saves to pen-drive a .CSV (Comma-Separated Values) file containing
numeric data relating to the quantities acquired, the configuration of
the instrument used, the transducers connected and the sequence of
numeric values acquired during the process that describe the time
trend of the quantities.
PAGE 41
