RECTANGULAR BRATT PANS GAS TYPE “BR8G080I - BR8G080I.M” “BR9G090I –
BR9G090I.M” “BR1G120I – BR1G120I.M” “BR1G150I – BR1G150I.M” “BR1G160I –
BR1G160I.M” “BR1G200I – BR1G200I.M”

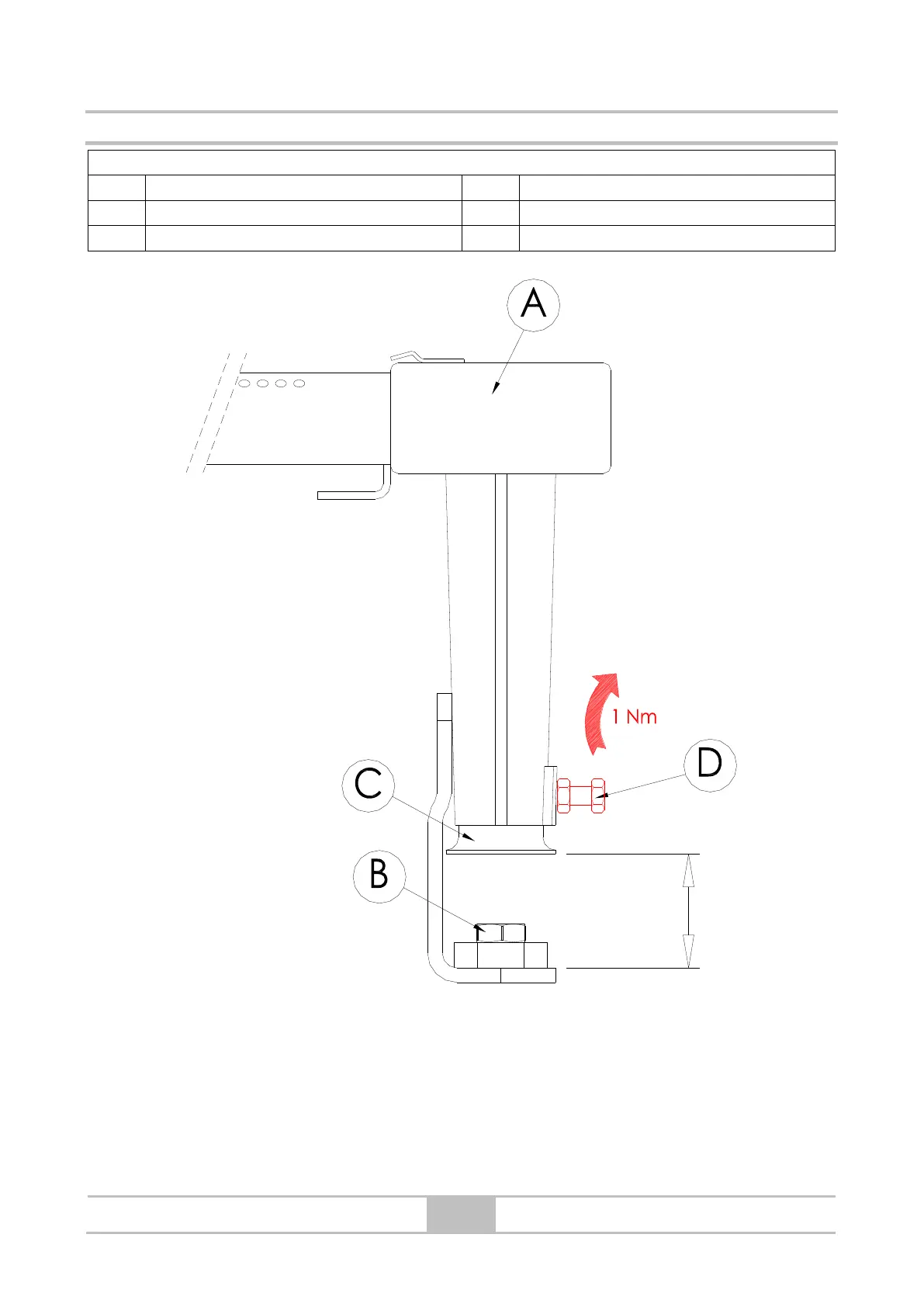

6.4 FIG. MAIN BURNER – PRIMARY AIR REGULATION
LEGEND:
A
Burner
C
Air regulation square
B
Injector (tab."GAS DATA")
D
Square lock screws
H
See tab."GAS DATA"

