RECTANGULAR BRATT PANS GAS TYPE “BR8G080I - BR8G080I.M” “BR9G090I –
BR9G090I.M” “BR1G120I – BR1G120I.M” “BR1G150I – BR1G150I.M” “BR1G160I –
BR1G160I.M” “BR1G200I – BR1G200I.M”

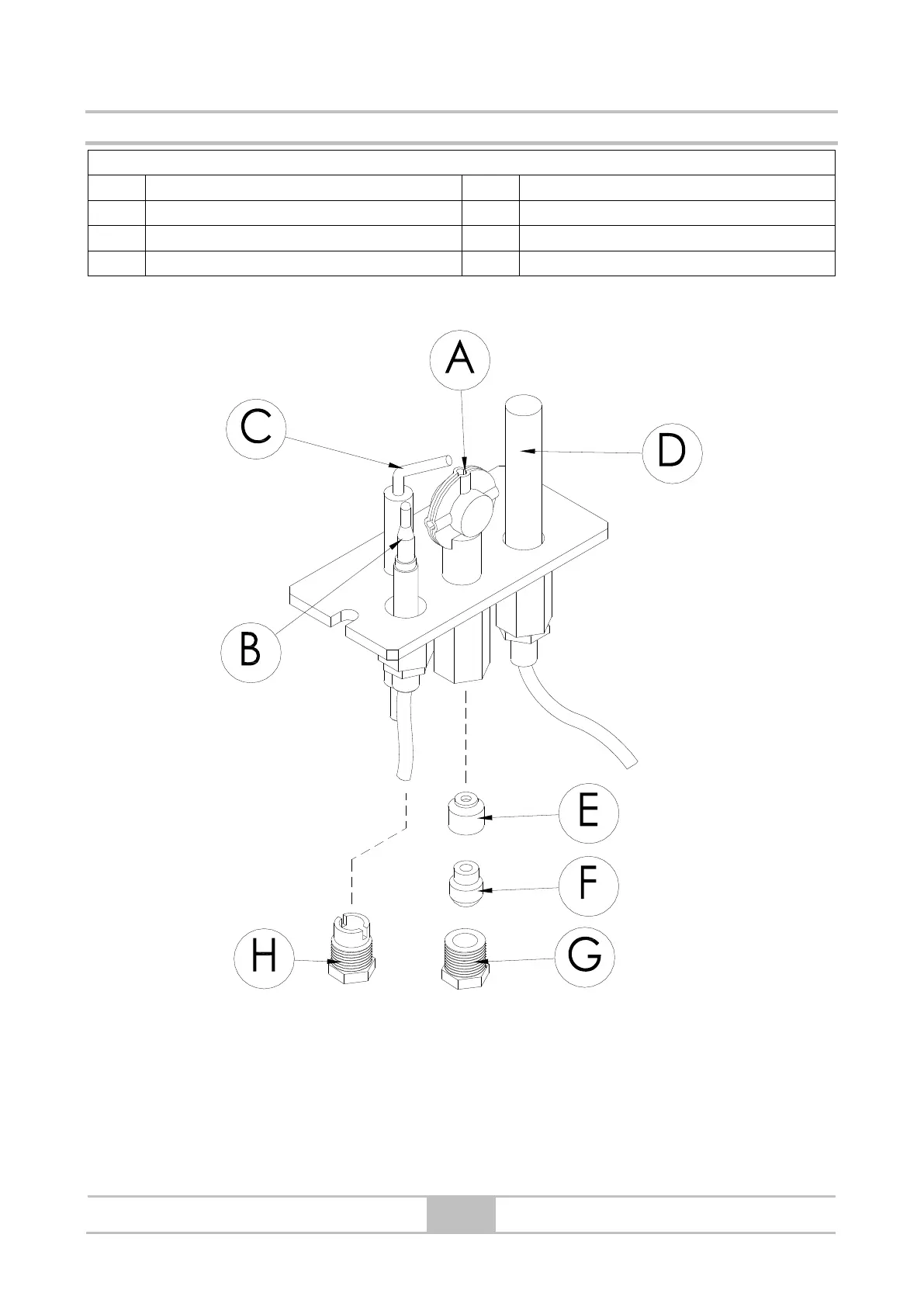

6.5 FIG. PILOT BURNER
LEGEND:
A
Pilot burner
E
Injector (tab."GAS DATA")
B
Thermocouple
F
Bicone
C
Ignition plug
G
Tightness screw
D
Thermo-pile
H
Nut for thermocouple
