Quick Start Setup 6

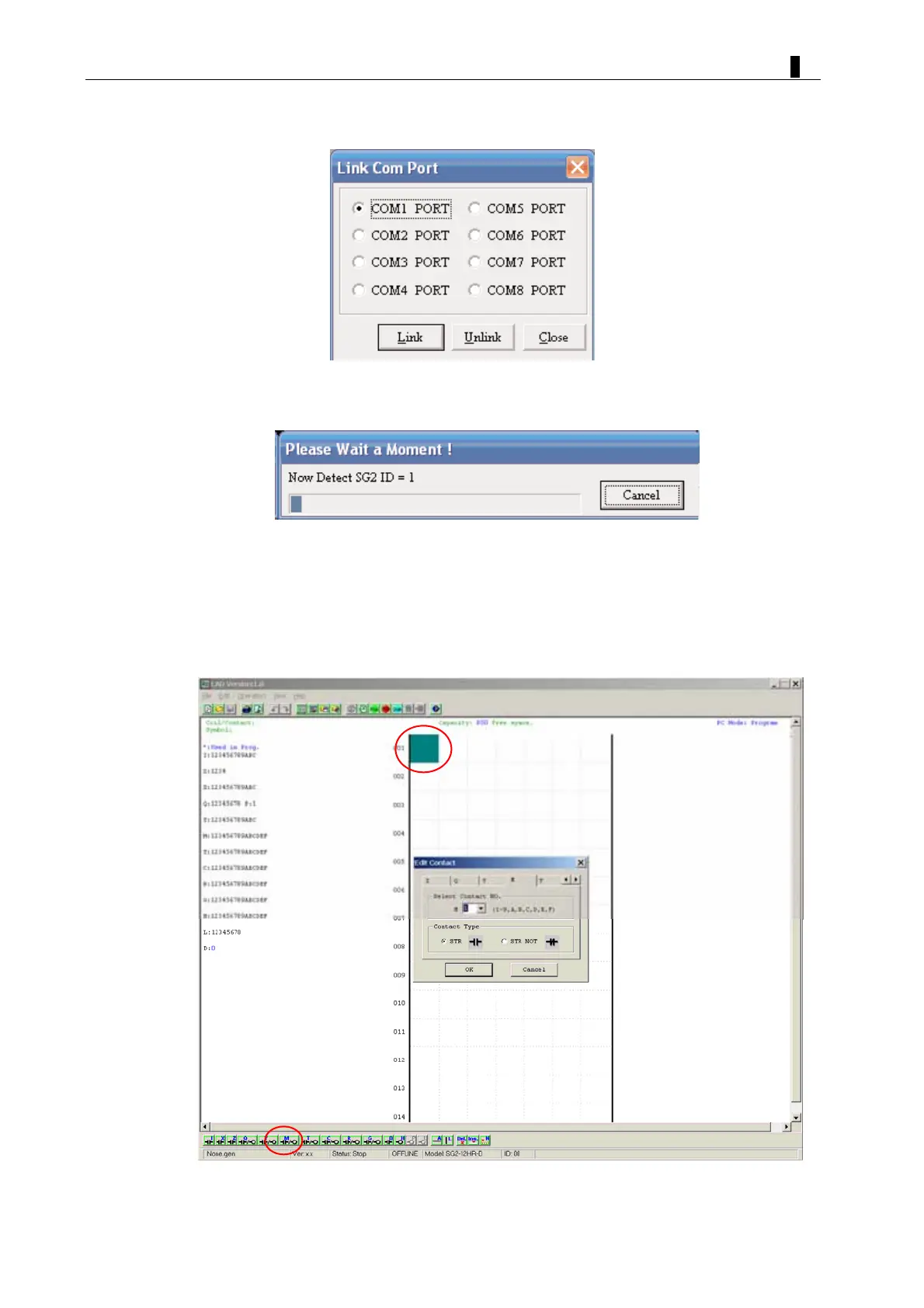

c. Select the correct Com Port number where the programming cable is connected to
the computer then press the “Link” button.
d. The SG2 Client will then begin to detect the connected smart relay to complete its
connection as shown below.
5. Write simple program
a. Write a simple one rung program by clicking on the leftmost cell at line 001 of the
programming grid, then click on the “M” contact icon on the ladder toolbar, as shown
below. Select M1 and press the OK button. See Chapter 4: Ladder Programming
instructions for complete instruction set definitions.
Note: If the ladder toolbar is not visible at the bottom of the screen, select
View>Ladder Toolbar from the menu to enable.
