Tecsis F2301 - Connection Assignment Analog Signal

Betriebsanleitung/Operating manual
F2301/F23C1/F23S1
www.tecsis.de BD_BE_912 c 33

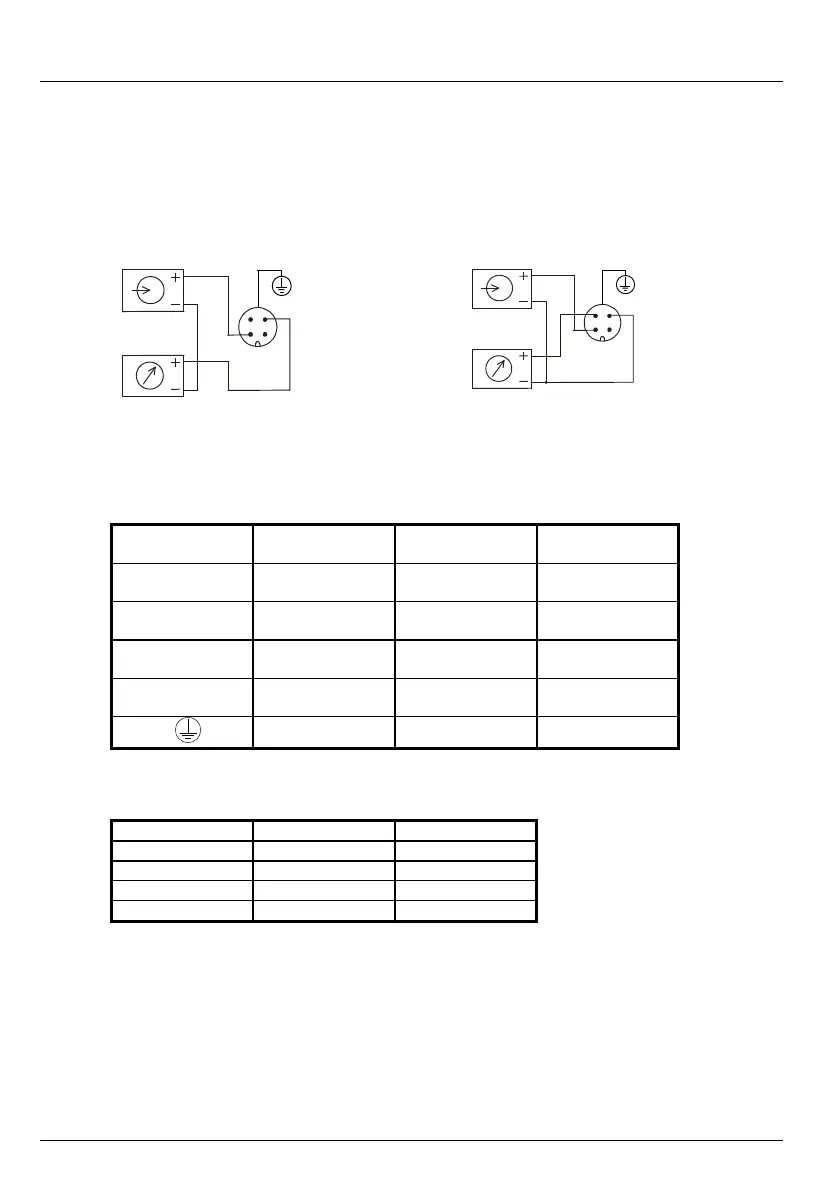

7.1 Connection assignment analog signal
Output 4..20mA (Two-wire)
Round connector M12x1, 4 pin
940E01
UB+/S+
1
2
4
3
OV/S-
Output 0…20mA, 0…10V (Three-wire)
Round connector M12x1, 4 pin
940E04
UB+
1
2
4
3
OV/S-
S+
Standard version
4…20 mA,
2-wire
4…20 mA,
3-wire
0…10 V,
3-wire
Power supply
UB+
1 1 1
Power supply
0V/UB-
3 3 3
Signal
S+
1 4 4
Signal
S-
3 3 3
Shield
Housing Housing Housing
Cable assignment
cable colour
2-wire
3-wire
BN
UB+/S+
UB+
WH
---
---
BU
0V/S-
0V/S-
BK
---
S+
Only when using the tecsis standard cable, for example. EZE53X011016
