6.2.5 Speed knob
The speed knob has two functions: Speed control, Select & Confirm in FUNC.
• Fine speed Control - +/-5 RPM by Turning it in clockwise or counter-clockwise while the LCD is on the Home
Page or the Motor Running.
• Coarse speed Control - +/-50 RPM by PUSH DOWN+ Turning it in clockwise or counter-clockwise while the LCD
is on the Home Page or the Motor Running.
• Select & Confirm in FUNC- generally “Turn it to select, PUSH DOWN to Confirm or Save”, More detail refers to
FUNC section below.
6.3 FUNC- Advanced Functions and features
The FUNC menu provides 5 pre-set, programmable functions for multiple turning applications:
• Favourite speed
• Brake Enabled
• Speed chart for Rough cut
• Speed chart for Fine/Finish cut
• XL/Unbalanced Mode
6.3.1 General operation to Enter and Exit FUNC Menu

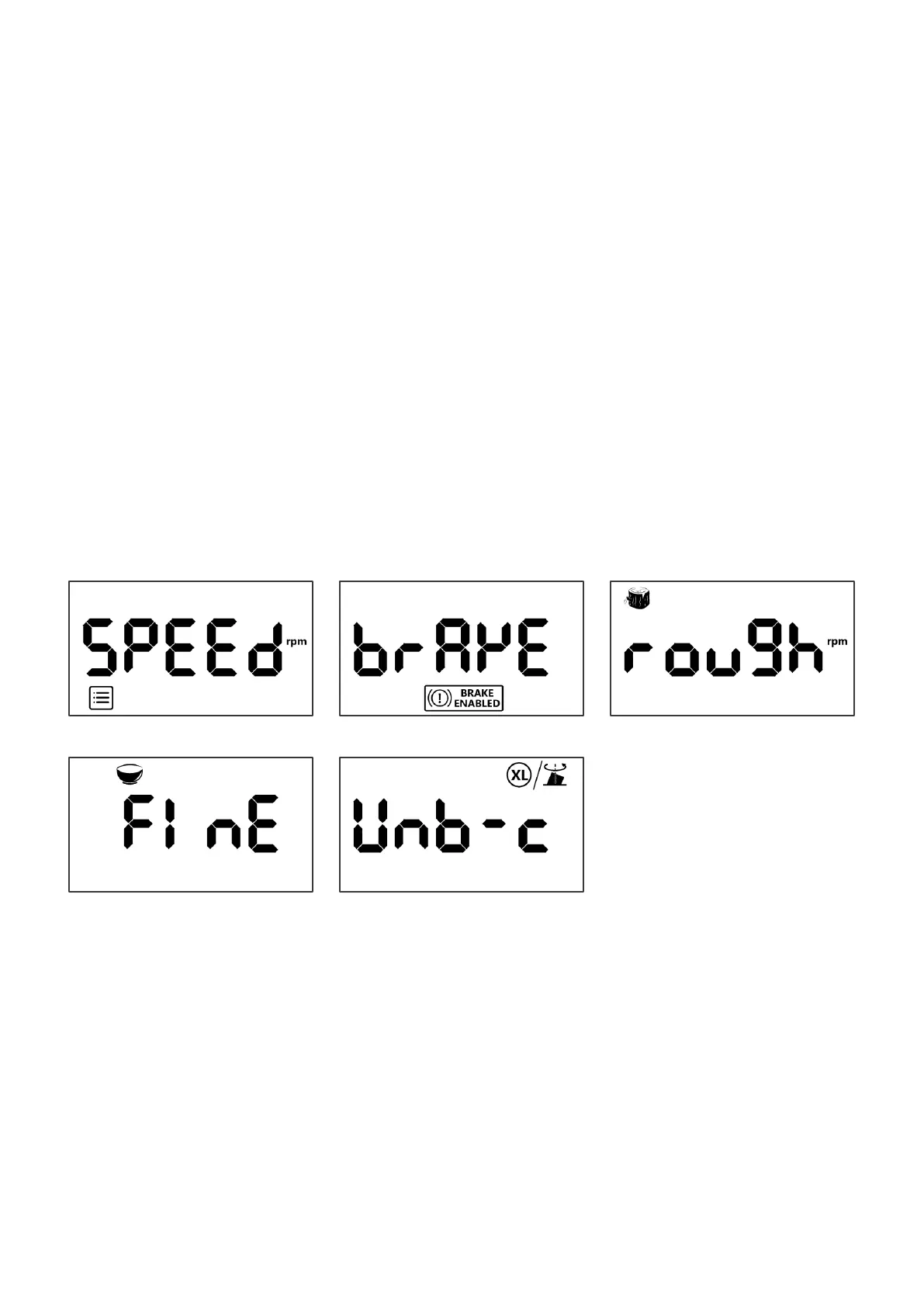

When the LCD is on the Home page, Press [FUNC] once to enter the function page, turn the speed knob clockwise or
counter clock wise, the LCD will show all 5 functions in a sequence:
Favourite speed->Brake Enabled->Rough cut->Fine cut-> XL/Unbalanced
When the LCD is on the function page(Lv.1), Press [FUNC] once again or Press [OFF] to exit back to the Home page*.
* Press [FUNC] in the function pages, it acts as “BACK” to previous layer, Press [OFF] means exit to Home page
directly.
6.3.2 General operation to Enter desired functions
Turn the speed knob to desired function, press [On] to confirm the selection. The LCD will show desired function page.
See Favourite Speed example below.
When the LCD is on desired function page, Press [FUNC] once again to back to previous Function page or Press [OFF]to
exit to the Home page.
