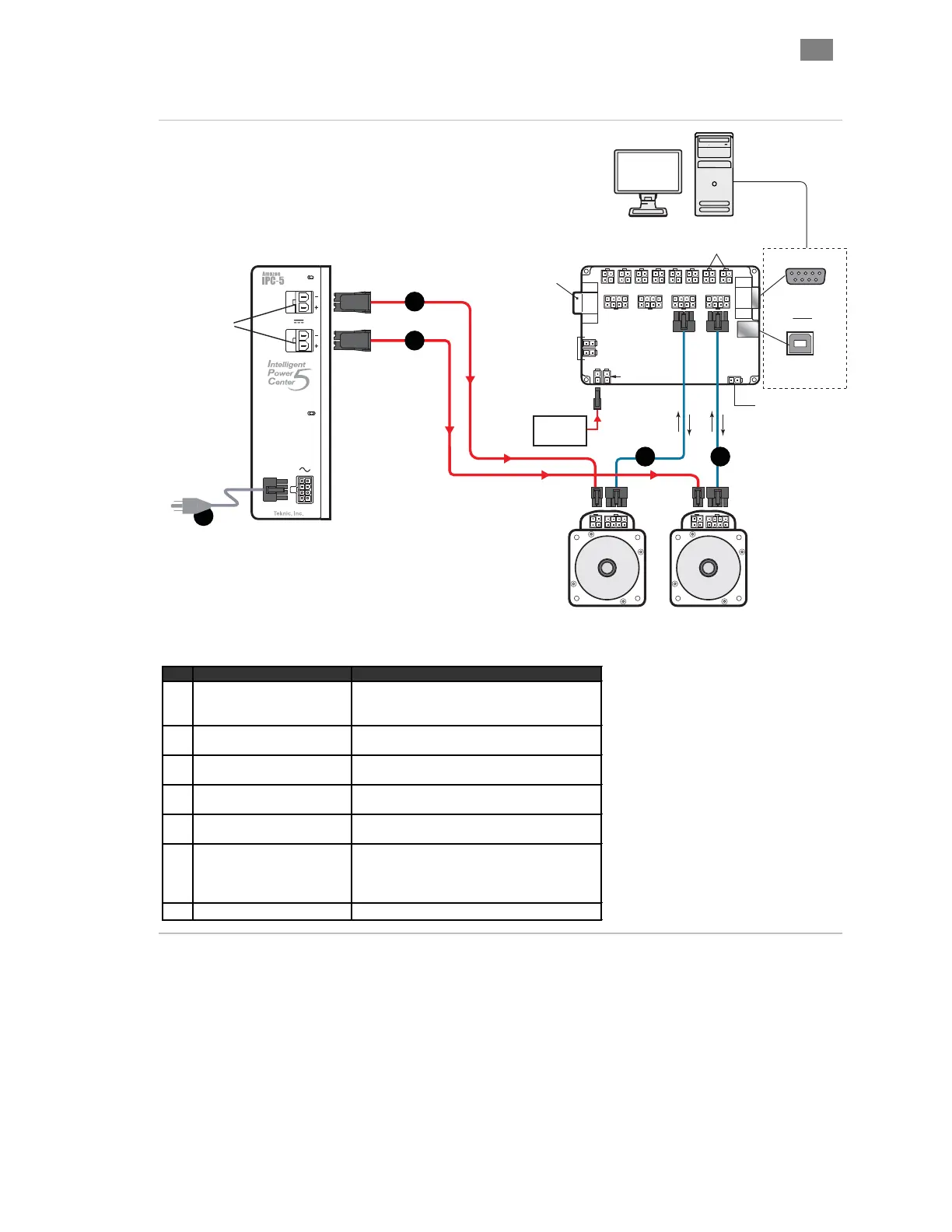

S YSTEM H OOKUP D IAGRAM (W ITHOUT P OWER H UB )
Axis 0Axis 1Axis 2Axis 3
Global Stop
Connector
75VDC OUT
24VDC
Pass-through
75VDC
(BUS IN)
COMM
& I/O
Brake or
GP Outputs
Expansion
Connector
Inputs
(2 per axis)
F
USB-B
RS-232 (DB-9)
OR
Windows
(or Linux)
AXIS 0AXIS 1
SC Hub
Teknic IPC-5
75VDC Power Supply
ClearPath-SC Motors
AC SOURCE
110/220VAC
75VDC
OUTPUTS
24VDC
Supply
Ref. Cable Part Number Description
A
CPM-CABLE-CTRL-MU120
Cable assembly, 120" ClearPath I/O
(overmolded Molex Minifit 8-pin to standard
Molex Minifit 8-pin).
B
CPM-CABLE-M2P2P-120
2-pin Molex to 2-pin Molex multi-purpose
cable, ~10 ft long.
C
CPM-CABLE-PWR-MS120
Cable assembly, 120" ClearPath PWR (Minifit
4 over molded Molex to Sabre).
D
CPM-CABLE-USB-120AB
ClearPath USB Cable; A-male to B-male. 120
inches (3.05m) in length
E
CPM-CABLE-USB-120
ClearPath USB Cable; A-male to Micro-B.120
inches (3.05m) in length.
F
IPC35-CABLE110
AC Line Cord (110V) for Amazon IPC-3 and
IPC-5 power supplies. Includes NEMA 5-15P
to Minifit 8 pin connector, 78.25 inches in
length (nominal).
G
PC-SBR-72
Power cable, Sabre to Sabre, 72".
AA
C
C
ClearPath-SC Hookup Diagram (for systems without a Power Hub)
