Operator Tutorial
2–24
1502C MTDR User Manual
O
F
F
O
F
F
O
F
F
O
N
ac 0.000 ft

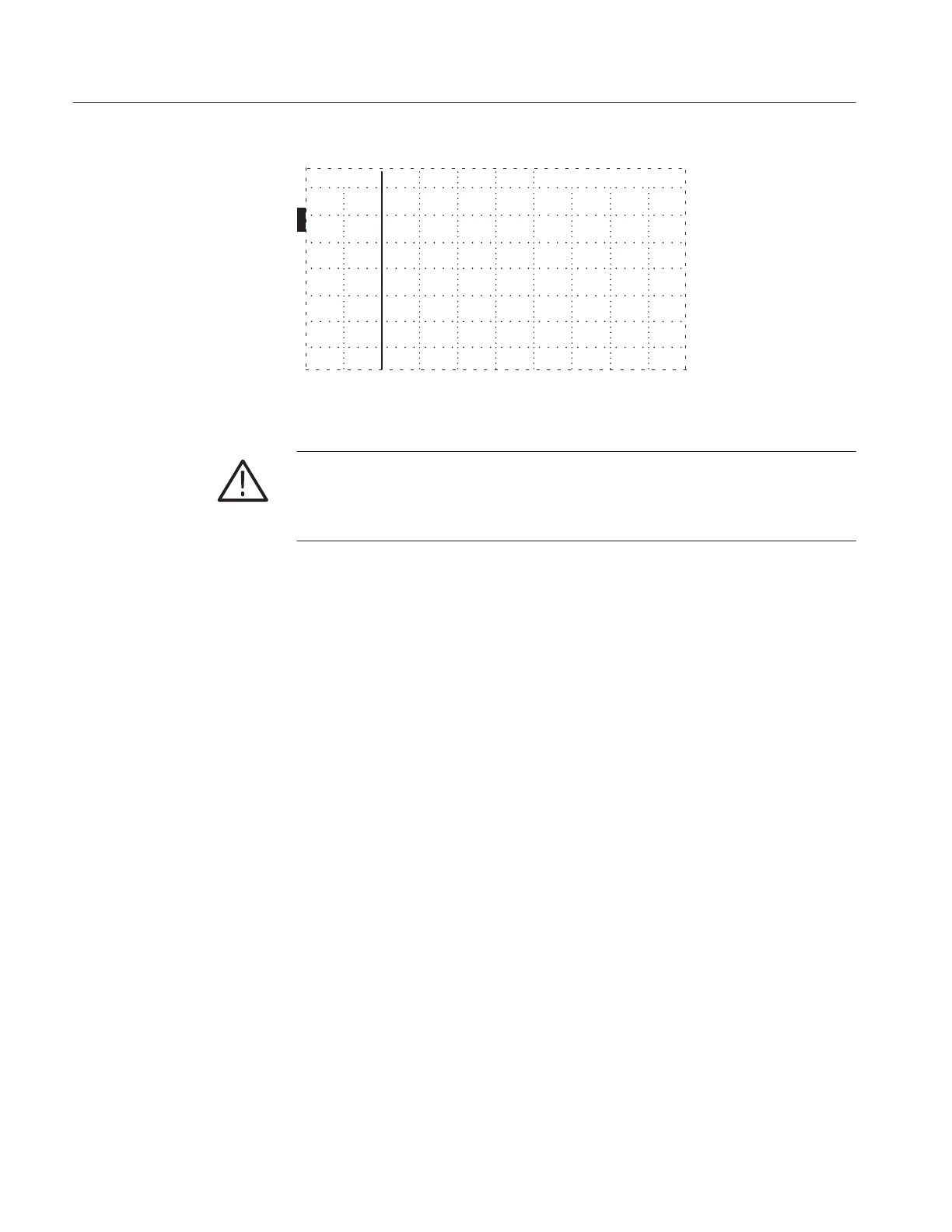

Figure 2–31: Display with Pulse Turned Off
CAUTION. This function is used mostly for troubleshooting by qualified techni-
cians. It is not recommended that you use the 1502C as a stand-alone monitor-
ing device. The input circuitry is very sensitive and can be easily damaged by
even moderate level signals.
11. To turn the pulse back on, enter the Acquisition Control Menu again, scroll
to Pulse is: Off and press MENU to turn the pulse back on. Repeatedly press
MENU until the instrument returns to normal operation.
1. Set the 1502C front-panel controls to:
CABLE Attach 3-ft cable
NOISE FILTER 1 avg
VERT SCALE 500 mr (default)
DIST/DIV 1 ft/div (0.25 m)
2. Pull POWER on.
3. Press MENU to access the Main Menu.
4. Using the
n
o
POSITION control, scroll down to Setup Menu.
5. Press MENU to accept this selection.
6. Scroll down to Acquisition Control Menu.
7. Press MENU to accept this selection.
8. Scroll down to Single Sweep is: Off.
9. Press MENU to toggle this selection. It should now read Single Sweep is:
On.
Single Sweep
To Next Page
