Tektronix 2465B Operator's Manual

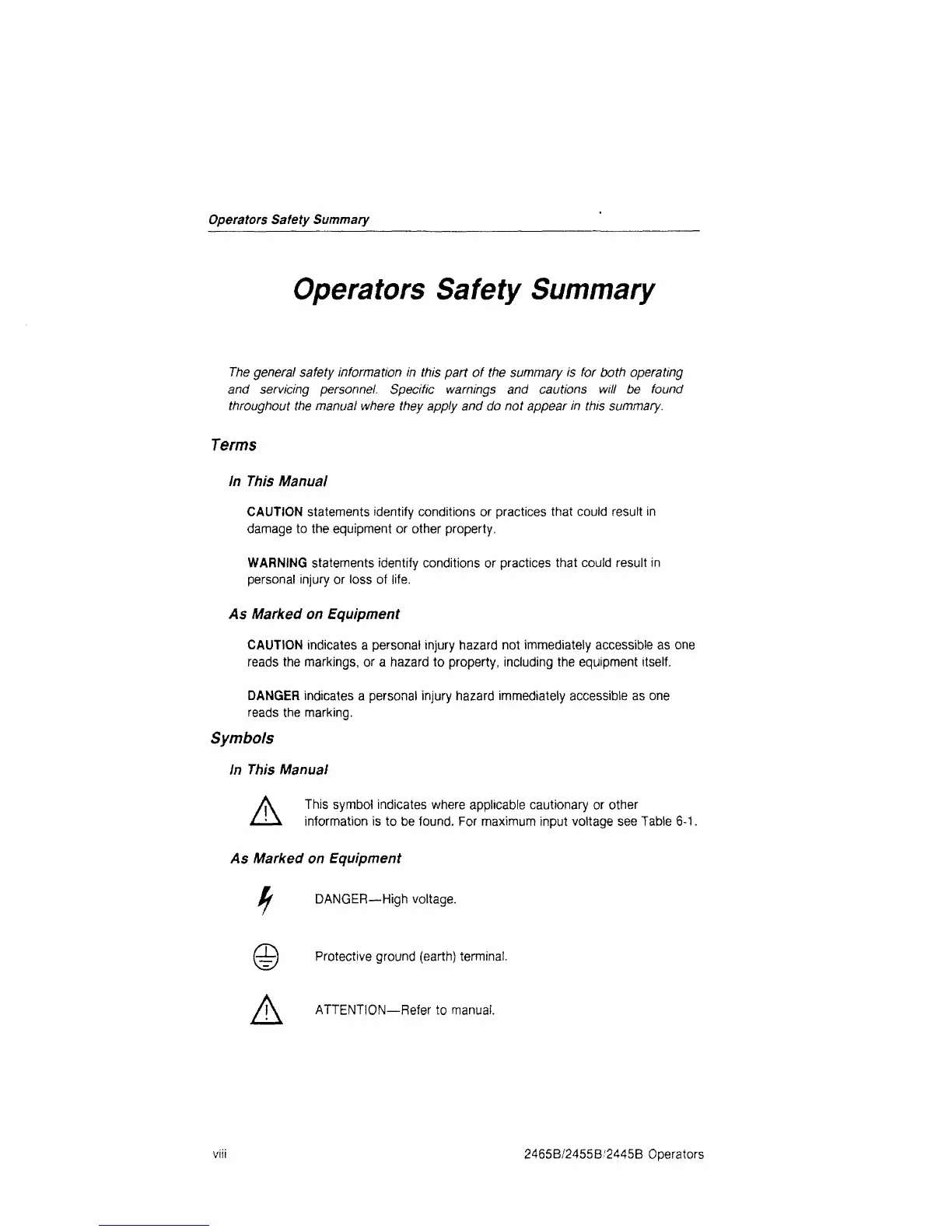

Operators Safety Summary
Operators Safety Summary
The general safety information in this part of the summary is for both operating
and servicing personnel. Specific warnings and cautions will be found
throughout the manual where they apply and do not appear in this summary.
Terms
In This Manual
CAUTION statements identify conditions or practices that could result in
damage to the equipment or other property.
WARNING statements identify conditions or practices that could result in
personal injury or loss of life.
As Marked on Equipment
CAUTION indicates a personal injury hazard not immediately accessible as one
reads the markings, or a hazard to property, including the equipment itself.
DANGER indicates a personal injury hazard immediately accessible as one
reads the marking.
Symbols
In This Manual
A
This symbol indicates where applicable cautionary or other
information is to be found. For maximum input voltage see Table 6-1.
As Marked on Equipment
ff DANGER—High voltage.
A
Protective ground (earth) terminal.
ATTENTION—Refer to manual.
vin
2465B/2455B/2445B Operators

Tektronix 2465B Specifications

General

Bandwidth	400 MHz
Channels	4
Vertical Sensitivity	2 mV/div to 5 V/div
Maximum Input Voltage	400 V (DC + peak AC)
Display	CRT
Trigger Modes	Auto, Normal, Single
Time Base Range	500 ps/div to 0.5 s/div
Rise Time	875 ps
Power Supply	48 to 440 Hz
Dimensions	495 mm
