Tektronix 2465B Operator's Manual

Applications
CH 1 SIGNAL
WITH UNWANTED
LINE FREQUENCY
COMPONENT
CH 2 SIGNAL
FROM LINE
FRFQUENCY
SOURCE
SIGNAL WITH
LINE FREQUENCY
COMPONENT
CANCELED
OUT
{A! CH 1 AND CH 2 SIGNALS
r : ; : : i
18) RESULTANT SIGNAL
(3832-15) 5854-13

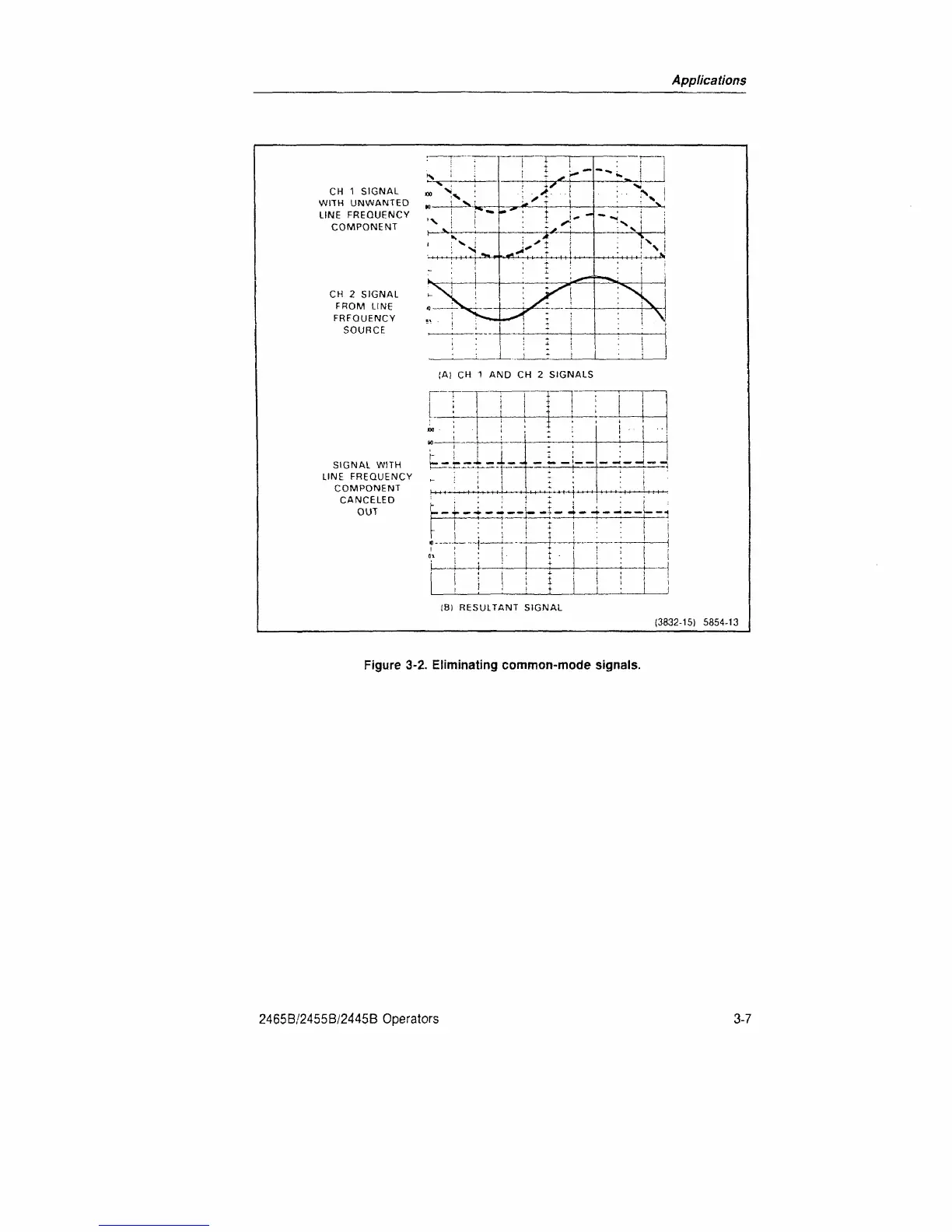

Figure 3-2. Eliminating common-mode signals.
2465B/2455B/2445B Operators
3-7

Tektronix 2465B Specifications

General

Bandwidth	400 MHz
Channels	4
Vertical Sensitivity	2 mV/div to 5 V/div
Maximum Input Voltage	400 V (DC + peak AC)
Display	CRT
Trigger Modes	Auto, Normal, Single
Time Base Range	500 ps/div to 0.5 s/div
Rise Time	875 ps
Power Supply	48 to 440 Hz
Dimensions	495 mm
