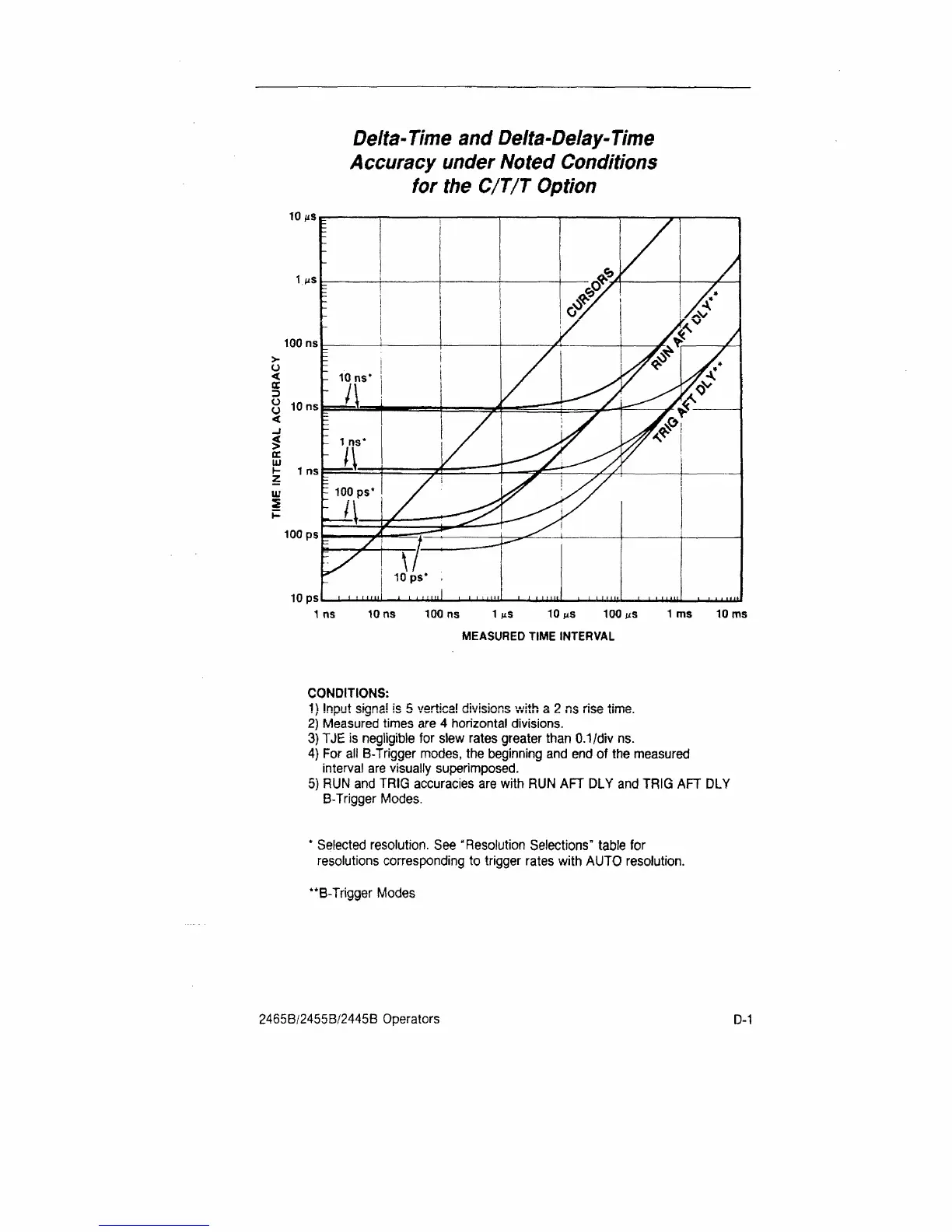

Delta-Time and
Delta-Delay-Time
Accuracy
under
Noted
Conditions
for the C/T/T
Option
10 MS
1ns 10 ns 100 ns
1
MS 10 ^S 100 us 1ms 10 ms
MEASURED TIME INTERVAL
CONDITIONS:
i\ innnt si
n
n3! is 5 vertical divisions with a 2 ns rise time.
2) Measured times are 4 horizontal divisions.
3) TJE is negligible for slew rates greater than
0.1/div
ns.
4) For all
B-Trigger
modes, the beginning and end of the measured
interval are visually superimposed.
5) RUN and TRIG accuracies are with RUN AFT DLY and TRIG AFT DLY
B-Trigger
Modes.
* Selected resolution. See "Resolution Selections" table for
resolutions corresponding to trigger rates with AUTO resolution.
**B-Trigger Modes
2465B/2455B/2445B Operators
D-1
To Next Page
