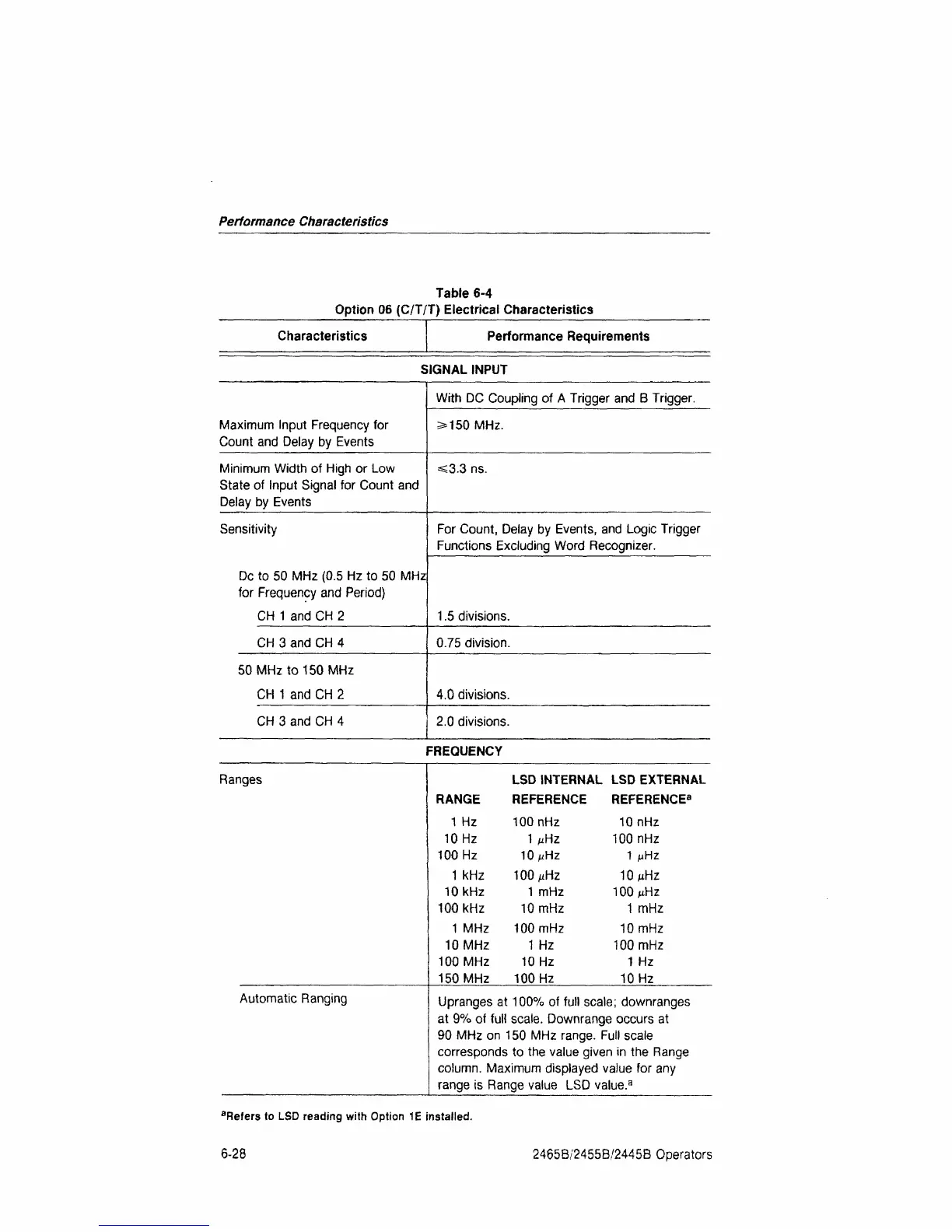

Tektronix 2465B

Performance Characteristics
Table 6-4
Option 06 (C/T/T) Electrical Characteristics
Characteristics Performance Requirements
SIGNAL INPUT
Maximum Input Frequency for
Count and Delay by Events
Minimum Width of High or Low
State of Input Signal for Count and
Delay by Events
Sensitivity
Dc to 50 MHz (0.5 Hz to 50 MHz
for Frequency and Period)
CH 1 and CH 2
CH 3 and CH 4
50 MHz to 150 MHz
CH 1 and CH 2
CH 3 and CH 4
With DC Coupling of A Trigger and B Trigger.
>150 MHz.
^3.3 ns.
For Count, Delay by Events, and Logic Trigger
Functions Excluding Word Recognizer.
1.5 divisions.
0.75 division.
4.0 divisions.
2.0 divisions.
FREQUENCY
Ranges
RANGE
LSD INTERNAL LSD EXTERNAL
REFERENCE REFERENCE
8
1 Hz
10 Hz
100 Hz
1 kHz
10 kHz
100 kHz
1 MHz
10 MHz
100 MHz
150 MHz
100 nHz
1
M
Hz
10
M
HZ
100 ^Hz
1 mHz
10mHz
100 mHz
1 Hz
10 Hz
100 Hz
10 nHz
100 nHz
1 MHZ
10MHZ
100 MHZ
1 mHz
10 mHz
100 mHz
1 Hz
10 Hz
Automatic Ranging
Upranges at 100% of full scale; downranges
at 9% of full scale. Downrange occurs at
90 MHz on 150 MHz range. Full scale
corresponds to the value given in the Range
column. Maximum displayed value for any
range is Range value LSD value.
3
"Refers to LSD reading with Option 1E installed.
