Tektronix 2465B Operator's Manual

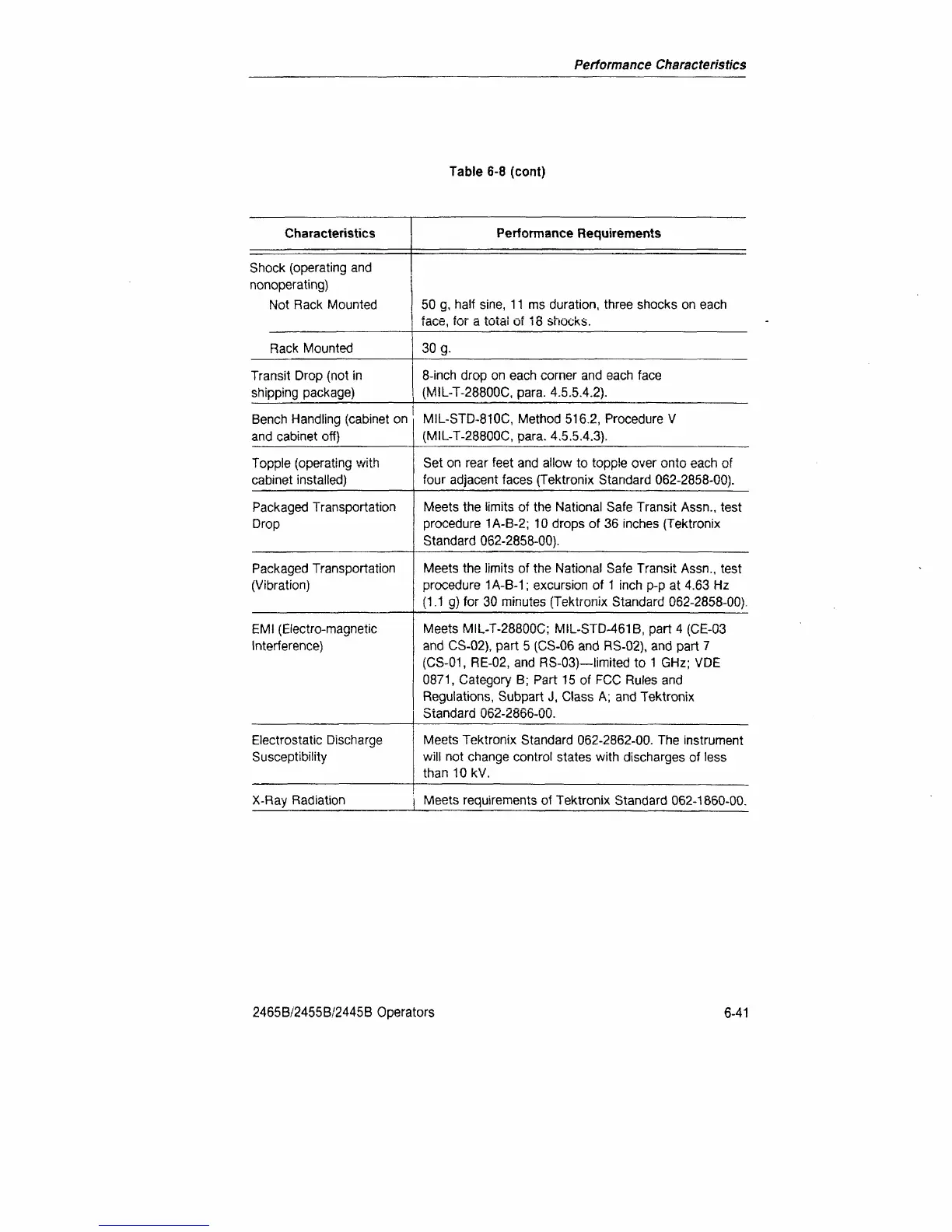

Performance Characteristics
Table 6-8 (cont)
Characteristics
Performance Requirements
Shock (operating and
nonoperating)
Not Rack Mounted
50 g, half sine, 11 ms duration, three shocks on each
face, for a total of 18 shocks.
Rack Mounted 30 g.
Transit Drop (not in
shipping package)
8-inch drop on each corner and each face
(MIL-T-28800C, para. 4.5.5.4.2).
Bench Handling (cabinet on
and cabinet off)
Topple (operating with
cabinet installed)
Packaged Transportation
Drop
Packaged Transportation
(Vibration)
EMI (Electro-magnetic
Interference)
Electrostatic Discharge
Susceptibility
X-Ray Radiation
MIL-STD-810C, Method 516.2, Procedure V
(MIL-T-28800C, para. 4.5.5.4.3).
Set on rear feet and allow to topple over onto each of
four adjacent faces (Tektronix Standard 062-2858-00).
Meets the limits of the National Safe Transit Assn., test
procedure 1A-B-2; 10 drops of 36 inches (Tektronix
Standard 062-2858-00).
Meets the limits of the National Safe Transit Assn., test
procedure 1A-B-1; excursion of 1 inch p-p at 4.63 Hz
(1.1 g) for 30 minutes (Tektronix Standard 062-2858-00).
Meets MIL-T-28800C; MIL-STD-461B, part 4 (CE-03
and CS-02), part 5 (CS-06 and RS-02), and part 7
(CS-01, RE-02, and RS-03)—limited to 1 GHz; VDE
0871, Category B; Part 15 of FCC Rules and
Regulations, Subpart J, Class A; and Tektronix
Standard 062-2866-00.
Meets Tektronix Standard 062-2862-00. The instrument
will not change control states with discharges of less
than 10 kV.
Meets requirements of Tektronix Standard 062-1860-00.
2465B/2455B/2445B Operators
6-41

Tektronix 2465B Specifications

General

Bandwidth	400 MHz
Channels	4
Vertical Sensitivity	2 mV/div to 5 V/div
Maximum Input Voltage	400 V (DC + peak AC)
Display	CRT
Trigger Modes	Auto, Normal, Single
Time Base Range	500 ps/div to 0.5 s/div
Rise Time	875 ps
Power Supply	48 to 440 Hz
Dimensions	495 mm
