Tektronix 2465B Operator's Manual

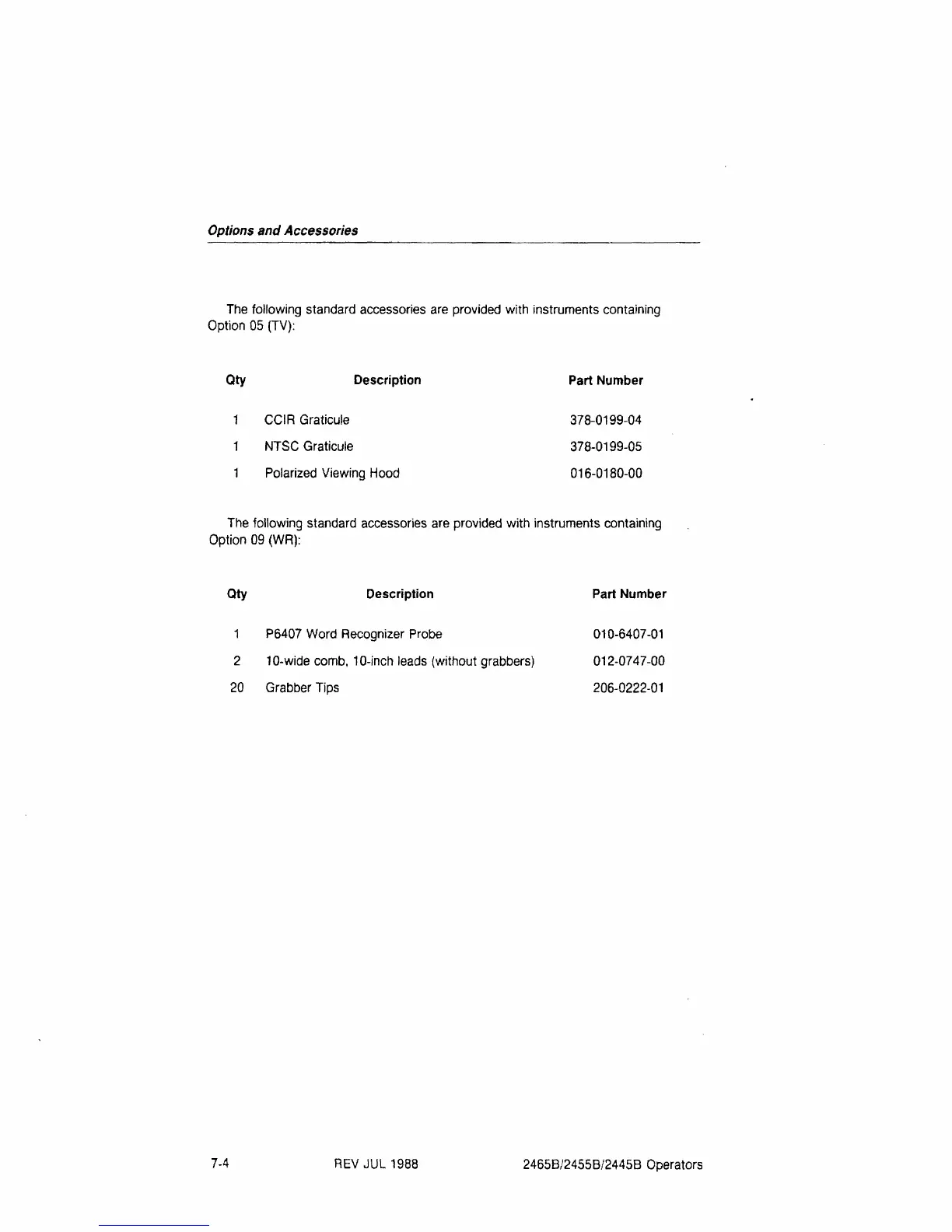

Options and Accessories
The following standard accessories are provided with instruments containing
Option 05 (TV):
Qty Description Part Number
1 CCIR Graticule 378-0199-04
1 NTSC Graticule 378-0199-05
1 Polarized Viewing Hood 016-0180-00
The following standard accessories are provided with instruments containing
Option 09 (WR):
Qty Description Part Number
1 P6407 Word Recognizer Probe 010-6407-01
2 10-wide comb, 10-inch leads (without grabbers) 012-0747-00
20 Grabber Tips 206-0222-01
7-4 REV JUL 1988 2465B/2455B/2445B Operators

Tektronix 2465B Specifications

General

Bandwidth	400 MHz
Channels	4
Vertical Sensitivity	2 mV/div to 5 V/div
Maximum Input Voltage	400 V (DC + peak AC)
Display	CRT
Trigger Modes	Auto, Normal, Single
Time Base Range	500 ps/div to 0.5 s/div
Rise Time	875 ps
Power Supply	48 to 440 Hz
Dimensions	495 mm
