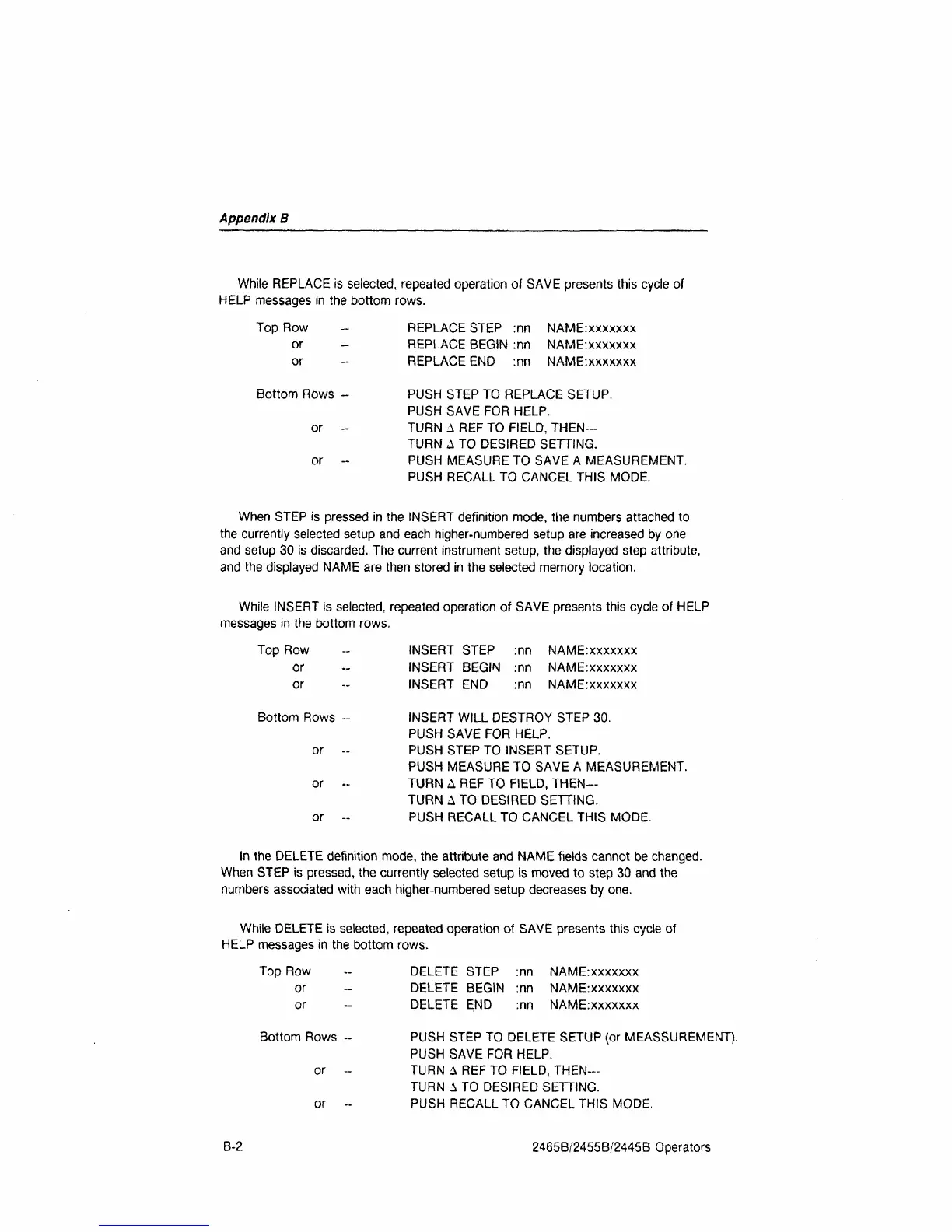

Appendix B
While REPLACE is selected, repeated operation of SAVE presents this cycle of
HELP messages in the bottom rows.
Top Row - REPLACE STEP :nn NAME:xxxxxxx
or - REPLACE BEGIN :nn NAME:xxxxxxx
or -- REPLACE END :nn NAME:xxxxxxx
Bottom Rows -- PUSH STEP TO REPLACE SETUP.
PUSH SAVE FOR HELP.
or - TURN A REF TO FIELD, THEN-
TURN A TO DESIRED SETTING.
or - PUSH MEASURE TO SAVE A MEASUREMENT.
PUSH RECALL TO CANCEL THIS MODE.
When STEP is pressed in the INSERT definition mode, the numbers attached to
the currently selected setup and each higher-numbered setup are increased by one
and setup 30 is discarded. The current instrument setup, the displayed step attribute,
and the displayed NAME are then stored in the selected memory location.
While INSERT is selected, repeated operation of SAVE presents this cycle of HELP
messages in the bottom rows.
Top Row - INSERT STEP :nn NAME:xxxxxxx
or -- INSERT BEGIN :nn NAME:xxxxxxx
or -- INSERT END :nn NAME.xxxxxxx
Bottom Rows - INSERT WILL DESTROY STEP 30.
PUSH SAVE FOR HELP.
or - PUSH STEP TO INSERT SETUP.
PUSH MEASURE TO SAVE A MEASUREMENT.
or .- TURN A REF TO FIELD, THEN-
TURN A TO DESIRED SETTING.
or - PUSH RECALL TO CANCEL THIS MODE.
In the DELETE definition mode, the attribute and NAME fields cannot be changed.
When STEP is pressed, the currently selected setup is moved to step 30 and the
numbers associated with each higher-numbered setup decreases by one.
While DELETE is selected, repeated operation of SAVE presents this cycle of
HELP messages in the bottom rows.
Top Row - DELETE STEP :nn NAME:xxxxxxx
or - DELETE BEGIN :nn NAME:xxxxxxx
or - DELETE END :nn NAME:xxxxxxx
Bottom Rows -- PUSH STEP TO DELETE SETUP (or MEASSUREMENT).
PUSH SAVE FOR HELP.
or - TURN A REF TO FIELD, THEN-
TURN A TO DESIRED SETTING.
or -- PUSH RECALL TO CANCEL THIS MODE.
B-2
2465B/2455B/2445B Operators
